Module_ZeroConf

Module: ZeroConf

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ZeroConf	ROM modules	-				not built in repo, not tested in repo

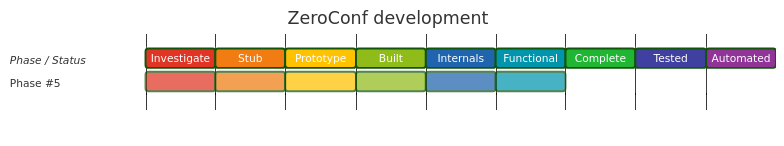

Development status

Completeness

Functionality	SWIs	Services	Vectors	Events	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

ZeroConf configures IPv4 link-local addressing and associated zero-configuration state for an interface. It monitors driver/protocol/Internet state, provides control/status/statistics SWIs, and uses Internet events plus deferred callbacks while probing/defending addresses.

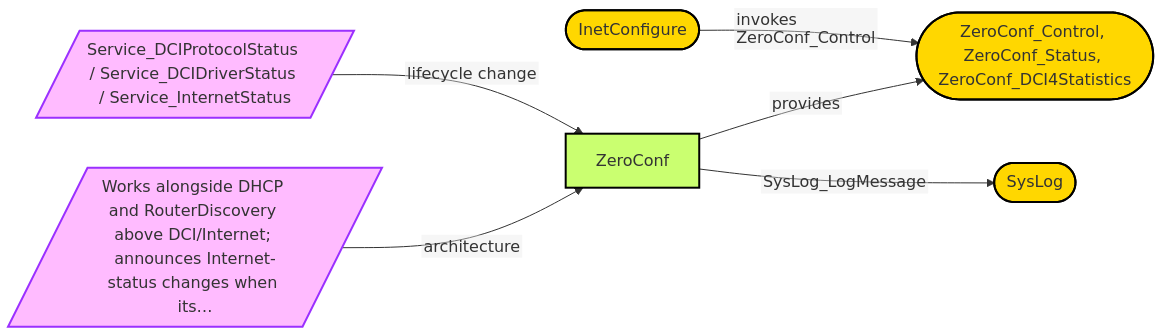

Relationships

Discovered features

• Has background processing
• Has services
• Has services fast
• Has swis
• Is c
• Is hardware specific
• Uses internet
• Uses logging

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Dci4 statistics

Commands

None

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	ZeroConf_Control (&56A00)
✅	🔲	ZeroConf_Status (&56A01)
✅	🔲	ZeroConf_DCI4Statistics (&56A02)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIDriverStatus
✅	🔲	Service_DCIProtocolStatus
✅	🔲	Service_InternetStatus
✅	🔲	Service_StatisticEnumerate

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	EventV

Events

In 32bit	In 64 bit	Interface
✅	🔲	Event_Internet

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_InternetStatus

Vectors

None

Events

None

UpCalls

None

Modules

• MessageTrans
• SharedCLibrary
• Socket
• SysLog
