Module_ADFSFiler

Module: ADFSFiler

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ADFSFiler	ROM modules					not built in repo, not tested in repo

Summary

ADFSFiler is the desktop filer client for ADFS volumes: it registers its resources, starts with the Filer, and presents mounted ADFS discs rather than implementing disc access itself.

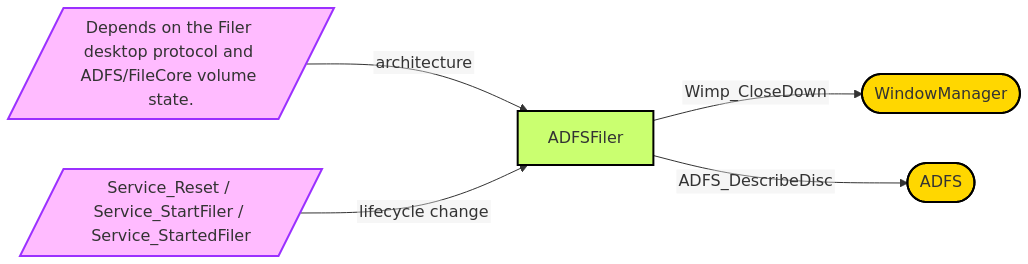

Relationships

Discovered features

• Has argument parsing
• Has disc access
• Has nvram state
• Has services
• Has services fast
• Is desktop application
• Sets variables
• Uses console output
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Desktop filer icon

Commands

In 32bit	In 64 bit	Interface
🔲	🔲	*Desktop_ADFSFiler

SWIs

None

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_FilerDying
🔲	🔲	Service_MessageFileClosed
🔲	🔲	Service_Reset
🔲	🔲	Service_StartFiler
🔲	🔲	Service_StartedFiler

Vectors

In 32bit	In 64 bit	Interface
🔲	🔲	UpCallV

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_EnumerateFormats
🔲	🔲	Service_IdentifyDisc

Vectors

None

Events

None

UpCalls

None

Modules

• ADFS
• FileCore
• MessageTrans
• ShareFS
• Territory
• Wimp
