Module_SharedSound

Module: SharedSound

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
SharedSound	ROM modules					not built in repo, not tested in repo

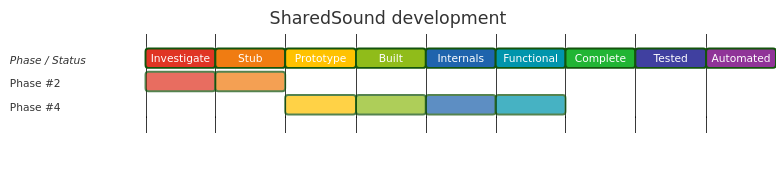

Development status

Completeness

Functionality	SWIs	Services	Uses Services	TOTAL
0.00%	0.00%	0.00%	0.00%	0.00%

Summary

SharedSound is a higher-level multiplexing sound framework: clients install named sample-producing handlers, while SharedSound selects and drives them through either SoundDMA's 16-bit linear-handler interface or the legacy SoundChannels path. It tracks sound-system restarts, can resample handlers to the chosen hardware rate, and also registers as a SoundDriver recording driver.

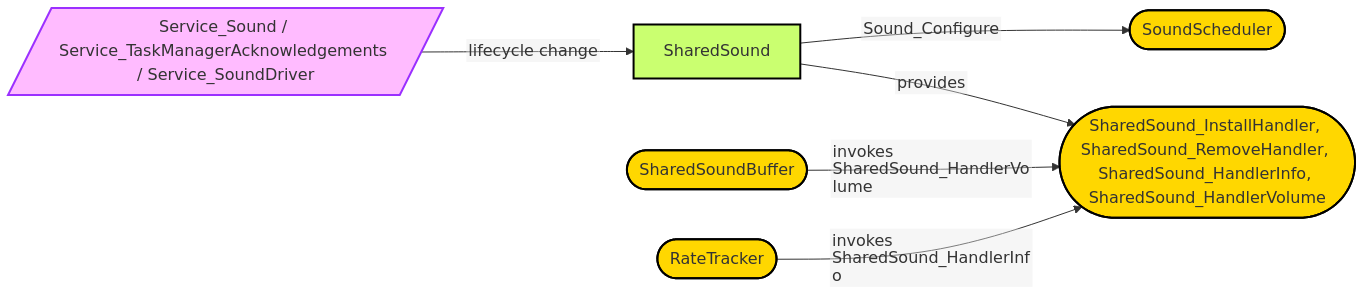

Relationships

Discovered features

• Has background processing
• Has services
• Has services fast
• Has swis

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	License info
🔲	🔲	Sound driver

Commands

None

SWIs

In 32bit	In 64 bit	Interface
🔲	🔲	SharedSound_InstallHandler (&4B440)
🔲	🔲	SharedSound_RemoveHandler (&4B441)
🔲	🔲	SharedSound_HandlerInfo (&4B442)
🔲	🔲	SharedSound_HandlerVolume (&4B443)
🔲	🔲	SharedSound_HandlerSampleType (&4B444)
🔲	🔲	SharedSound_HandlerPause (&4B445)
🔲	🔲	SharedSound_SampleRate (&4B446)
🔲	🔲	SharedSound_InstallDriver (&4B447)
🔲	🔲	SharedSound_RemoveDriver (&4B448)
🔲	🔲	SharedSound_DriverInfo (&4B449)
🔲	🔲	SharedSound_DriverVolume (&4B44A)
🔲	🔲	SharedSound_DriverMixer (&4B44B)
🔲	🔲	SharedSound_CheckDriver (&4B44C)
🔲	🔲	SharedSound_ControlWord (&4B44D)
🔲	🔲	SharedSound_HandlerType (&4B44E)

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_Sound
🔲	🔲	Service_TaskManagerAcknowledgements

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_Sound
🔲	🔲	Service_TaskManagerAcknowledgements

Vectors

None

Events

None

UpCalls

None

Modules

• Sound
