Module_Pinboard

Module: Pinboard

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Pinboard	ROM modules					not built in repo, not tested in repo

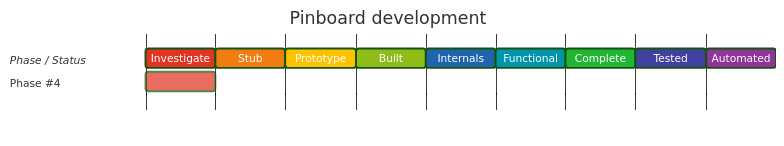

Development status

Completeness

Functionality	Commands	Services	TOTAL
0.00%	0.00%	0.00%	0.00%

Summary

Pinboard is the desktop-background and pinned-object application. It starts after Wimp and Filer, owns the backdrop/desktop icons and responds to memory/resource changes so the persistent desktop presentation can be rebuilt.

Documentation

URL: PRM

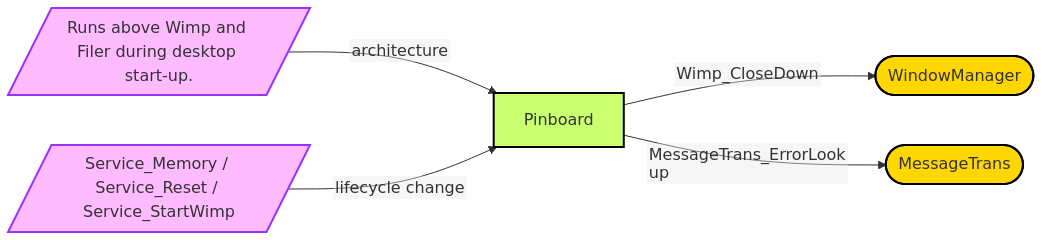

Relationships

Discovered features

• Has argument parsing
• Has file access
• Has nvram state
• Has services
• Has services fast
• Is desktop application
• Sets variables
• Uses graphics output
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Default desktop application
🔲	🔲	Desktop filer icon

Commands

In 32bit	In 64 bit	Interface
🔲	🔲	*AddTinyDir
🔲	🔲	*BackDrop
🔲	🔲	*Desktop_Pinboard
🔲	🔲	*Pin
🔲	🔲	*Pinboard
🔲	🔲	*PinboardOptions
🔲	🔲	*RemoveTinyDir
🔲	🔲	*XPin

SWIs

None

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_Memory
🔲	🔲	Service_Reset
🔲	🔲	Service_StartFiler
🔲	🔲	Service_StartWimp
🔲	🔲	Service_StartedWimp

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• ColourTrans
• DragASprite
• FilerAction
• Font
• Hourglass
• ImageFileRender
• MessageTrans
• TaskManager
• Territory
• Wimp
