Module_ImageFileRender

Module: ImageFileRender

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ImageFileRender	ROM modules	-	Functional	Gerph		not built in repo, not tested in repo

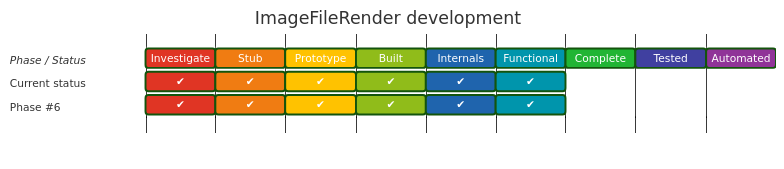

Development status

Completeness

Commands	SWIs	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%

Summary

ImageFileRender is the pluggable image-renderer registry and common rendering API. Renderer modules register/deregister capabilities; callers render, obtain bounds, transform images, declare fonts and enumerate renderer metadata without knowing a particular file format.

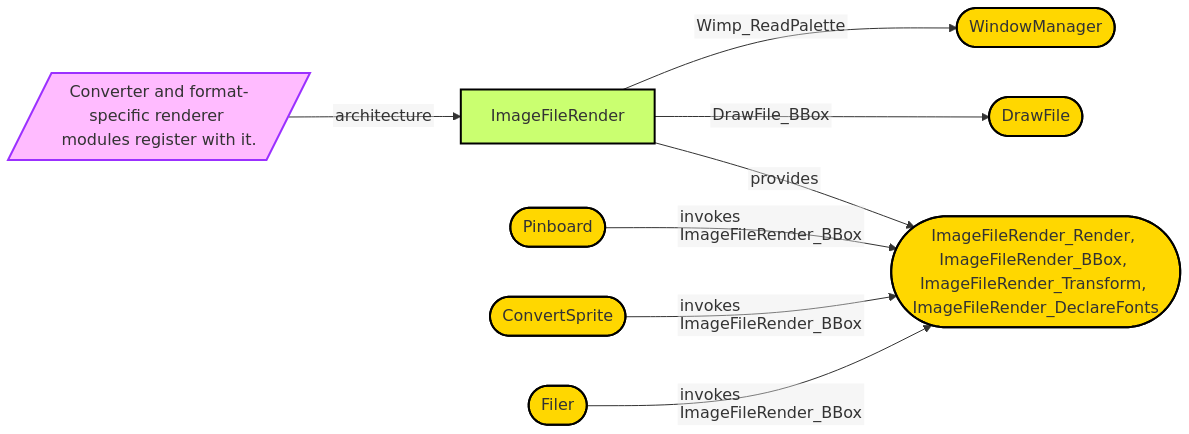

Relationships

Discovered features

• Can print
• Has swis
• Is c
• Uses graphics output

---

Provides

Functionality

In 32bit	In 64 bit	Interface

None found

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*ImageFileRenderers
✅	🔲	*ImageFileViewer

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	ImageFileRender_Render (&562C0)
✅	🔲	ImageFileRender_BBox (&562C1)
✅	🔲	ImageFileRender_Transform (&562C2)
✅	🔲	ImageFileRender_DeclareFonts (&562C3)
✅	🔲	ImageFileRender_Info (&562C4)
✅	🔲	ImageFileRender_RendererInfo (&562C5)
✅	🔲	ImageFileRender_Register (&562C6)
✅	🔲	ImageFileRender_Deregister (&562C7)
✅	🔲	ImageFileRender_EnumerateRenderers (&562C8)

Services

None

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_ImageFileRender_Dying
✅	🔲	Service_ImageFileRender_RendererChanged
✅	🔲	Service_ImageFileRender_Started

Vectors

None

Events

None

UpCalls

None

Modules

• ColourTrans
• DrawFile
• JPEG
• MessageTrans
• SharedCLibrary
• Wimp
