Module_Kernel_Introspection

Module: Kernel (Introspection)

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Kernel:Introspection	ROM modules	Stub	Stub	Gerph	GitHub	32-bit built, 64-bit built, tested in repo

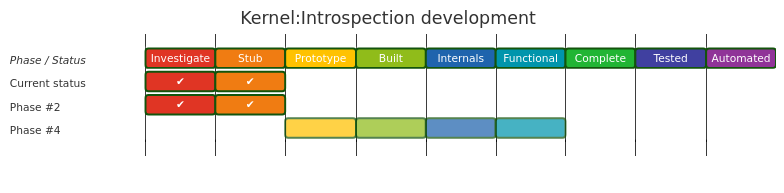

Development status

Completeness

Functionality	SWIs	Vectors	TOTAL
40.18%	100.00%	50.00%	45.24%

Summary

The Kernel is being worked on in parts, to allow it to have delineated implementation. This component will provide the interfaces for reading information about the OS itself and about hardware.

Providing stub implementation functions for the different interfaces will allow us to get a simple implementation provisioned, and then expanded as we have more of the system that we can read information from.

The expectation is that there will be both command line versions of the implementation that can be used for testing, and a fake module which implements the equivalent of the OS_* SWI calls. This should mean that the subsequent integration to create the Kernel itself just has to hook the defined SWIs into the existing code. Or that the code can be hooked into the existing Kernel.

Documentation

URL: PRM

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	OS_Byte 0 version
✅	🔲	OS_Byte 129, 0, 255 version
✅	✅	OS_ReadSysInfo 0 (Configured Screen Size) stub
🔲	🔲	OS_ReadSysInfo 0 (Configured Screen Size)
✅	✅	OS_ReadSysInfo 1 (Configured Mode) stub
🔲	🔲	OS_ReadSysInfo 1 (Configured Mode)
✅	✅	OS_ReadSysInfo 2 (Chips And UniqueID) stub
🔲	🔲	OS_ReadSysInfo 2 (Chips And UniqueID)
✅	✅	OS_ReadSysInfo 3 (IO Features) stub
🔲	🔲	OS_ReadSysInfo 3 (IO Features)
✅	🔲	OS_ReadSysInfo 4 (Ethernet Address) stub
🔲	🔲	OS_ReadSysInfo 4 (Ethernet Address)
✅	✅	OS_ReadSysInfo 5 (Raw Unique ID) stub
🔲	🔲	OS_ReadSysInfo 5 (Raw Unique ID)
✅	✅	OS_ReadSysInfo 6 (Kernel Value) stub
🔲	🔲	OS_ReadSysInfo 6 (Kernel Value)
✅	✅	OS_ReadSysInfo 7 (Last Abort) stub
🔲	🔲	OS_ReadSysInfo 7 (Last Abort)
✅	✅	OS_ReadSysInfo 8 (Platform Class) stub
🔲	🔲	OS_ReadSysInfo 8 (Platform Class)
✅	✅	OS_ReadSysInfo 9 (ROM Information) stub
🔲	🔲	OS_ReadSysInfo 9 (ROM Information)
✅	✅	OS_ReadSysInfo 10 (OS Version) stub
🔲	🔲	OS_ReadSysInfo 10 (OS Version)
✅	✅	OS_ReadSysInfo 11 (Debug Information) stub
🔲	🔲	OS_ReadSysInfo 11 (Debug Information)
🔲	🔲	OS_ReadSysInfo 12 (Read Extended MachineId) stub
🔲	🔲	OS_ReadSysInfo 12 (Read Extended MachineId)
🔲	🔲	OS_ReadSysInfo 13 (Validate Key Handler) stub
🔲	🔲	OS_ReadSysInfo 13 (Validate Key Handler)
🔲	🔲	OS_ReadSysInfo 14 (IIC) stub
🔲	🔲	OS_ReadSysInfo 14 (IIC)
🔲	🔲	OS_ReadSysInfo 15 (EnumerateFooterEntries) stub
🔲	🔲	OS_ReadSysInfo 15 (EnumerateFooterEntries)
✅	✅	OS_Memory 6 (Read Physical Table Size) stub
🔲	🔲	OS_Memory 6 (Read Physical Table Size)
✅	✅	OS_Memory 7 (Read Physical Table) stub
🔲	🔲	OS_Memory 7 (Read Physical Table)
✅	✅	OS_Memory 8 (Amounts) stub
🔲	🔲	OS_Memory 8 (Amounts)
✅	✅	OS_Memory 9 (IO Space) stub
🔲	🔲	OS_Memory 9 (IO Space)
✅	✅	OS_PlatformFeatures 0 (code features) stub
🔲	🔲	OS_PlatformFeatures 0 (code features)
✅	✅	OS_PlatformFeatures 1 (MMU features) stub
🔲	🔲	OS_PlatformFeatures 1 (MMU features)
✅	✅	OS_PlatformFeatures 33 (Cache features) stub
🔲	🔲	OS_PlatformFeatures 33 (Cache features)
🔲	🔲	OS_PlatformFeatures 34 (CPU features) stub
🔲	🔲	OS_PlatformFeatures 34 (CPU features)
✅	✅	OS_PlatformFeatures 64 (CPU registers) stub
✅	✅	OS_PlatformFeatures 64 (CPU registers)
✅	🔲	OS_ReadMemMapInfo stub
🔲	🔲	OS_ReadMemMapInfo
✅	🔲	OS_ReadMemMapEntries stub
🔲	🔲	OS_ReadMemMapEntries

Commands

None

SWIs

In 32bit	In 64 bit	Interface
✅	✅	OS_ReadMemMapInfo (&51)
✅	✅	OS_ReadMemMapEntries (&51)
✅	✅	OS_ReadSysInfo (&58)
✅	✅	OS_Memory (&68)
✅	✅	OS_PlatformFeatures (&6d)

Services

None

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	ByteV 0
✅	🔲	ByteV 129, 0, 255

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

None
