Module_PrintDbox

Module: PrintDbox

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
PrintDbox	ROM modules	-				not built in repo, not tested in repo

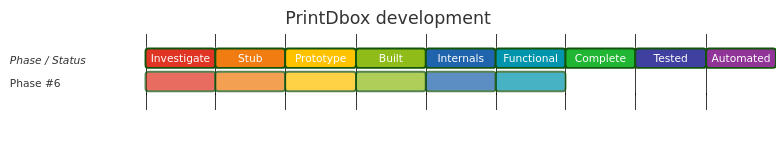

Development status

Completeness

Functionality	SWIs	Services	TOTAL
50.00%	50.00%	50.00%	50.00%

Summary

PrintDbox is the Toolbox printing dialogue object. It supplies standard printer/options UI and passes the application's decision back through Toolbox events.

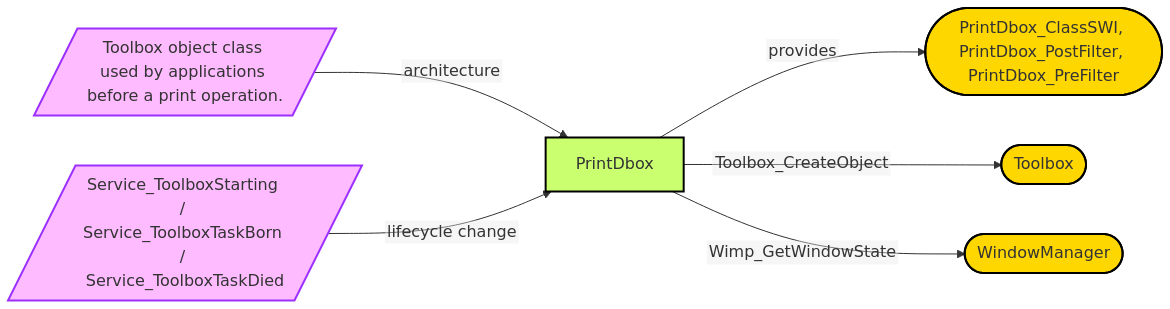

Relationships

Discovered features

• Has services
• Has services fast
• Has swis
• Is c
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Resourcefs files
✅	🔲	Toolbox object

Commands

None

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	PrintDbox_ClassSWI (&82B00)
✅	🔲	PrintDbox_PostFilter (&82B01)
✅	🔲	PrintDbox_PreFilter (&82B02)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_ResourceFSStarting
✅	🔲	Service_ToolboxStarting
✅	🔲	Service_ToolboxTaskBorn
✅	🔲	Service_ToolboxTaskDied

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• MessageTrans
• PDriver
• ResourceFS
• SharedCLibrary
• Toolbox
• Wimp
• Window
