Module_IIC

Module: IIC

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
IIC	ROM modules	Stub	Stub	Gerph		32-bit built, 64-bit built, tested in repo

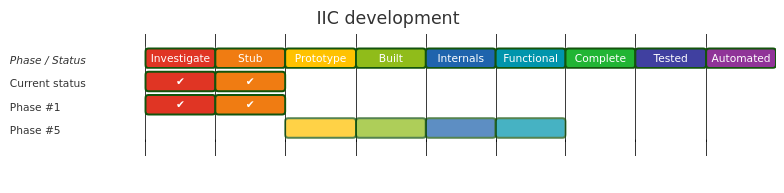

Development status

Completeness

Functionality	SWIs	TOTAL
100.00%	100.00%	100.00%

Summary

IIC is the low-level I²C bus controller module. Its Control SWI performs transfers to supported on-board peripherals including the RTC/CMOS and portable battery-management microcontrollers.

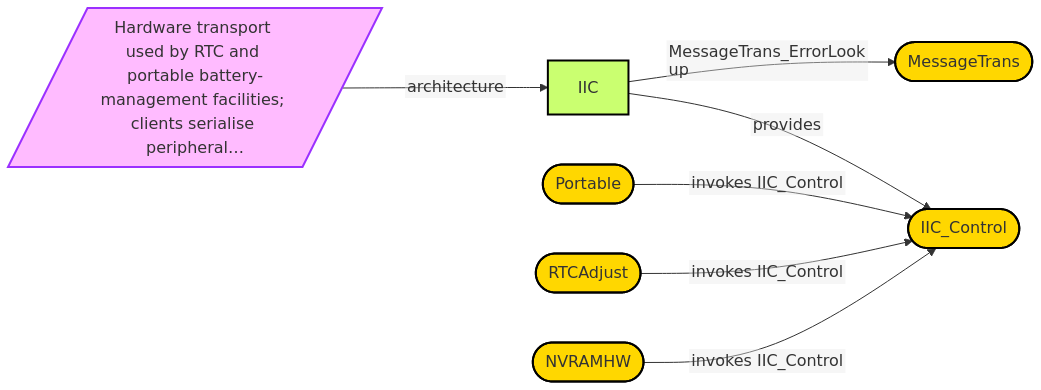

Relationships

Discovered features

• Has swis
• Is hardware specific
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	✅	Rejects invalid addresses

Commands

None

SWIs

In 32bit	In 64 bit	Interface
✅	✅	IIC_Control (&240)

Services

None

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• MessageTrans
