Module_NetI

Module: NetI

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
NetI	ROM modules					not built in repo, not tested in repo

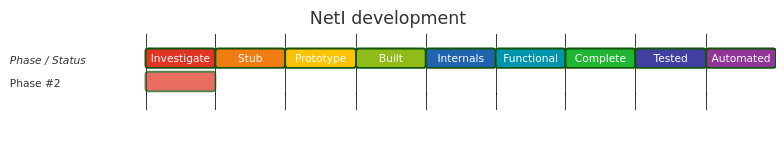

Development status

Completeness

Functionality	Commands	SWIs	Services	Vectors	Uses Services	Uses Events	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

cmhg header file for NetI module

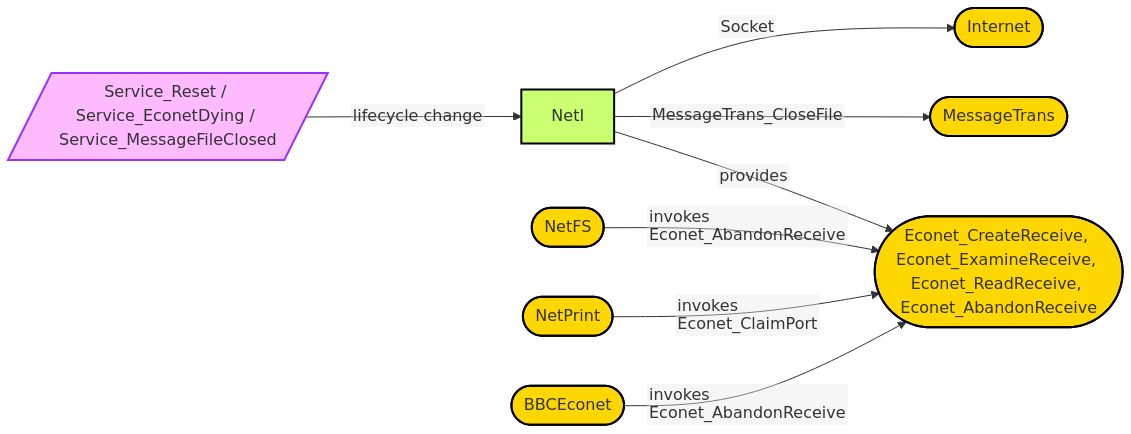

Relationships

Discovered features

• Has nvram state
• Has services
• Has services fast
• Has swis
• Is c
• Is hardware specific
• Uses internet
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Internet service

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*AddMap
✅	🔲	*Configure NetIAutoMap
✅	🔲	*DelMap
✅	🔲	*NetMap
✅	🔲	*NetProbe
✅	🔲	*NetStat

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	Econet_CreateReceive (&40000)
✅	🔲	Econet_ExamineReceive (&40001)
✅	🔲	Econet_ReadReceive (&40002)
✅	🔲	Econet_AbandonReceive (&40003)
✅	🔲	Econet_WaitForReception (&40004)
✅	🔲	Econet_EnumerateReceive (&40005)
✅	🔲	Econet_StartTransmit (&40006)
✅	🔲	Econet_PollTransmit (&40007)
✅	🔲	Econet_AbandonTransmit (&40008)
✅	🔲	Econet_DoTransmit (&40009)
✅	🔲	Econet_ReadLocalStationAndNet (&4000A)
✅	🔲	Econet_ConvertStatusToString (&4000B)
✅	🔲	Econet_ConvertStatusToError (&4000C)
✅	🔲	Econet_ReadProtection (&4000D)
✅	🔲	Econet_SetProtection (&4000E)
✅	🔲	Econet_ReadStationNumber (&4000F)
✅	🔲	Econet_PrintBanner (&40010)
✅	🔲	Econet_ReadTransportType (&40011)
✅	🔲	Econet_ReleasePort (&40012)
✅	🔲	Econet_AllocatePort (&40013)
✅	🔲	Econet_DeAllocatePort (&40014)
✅	🔲	Econet_ClaimPort (&40015)
✅	🔲	Econet_StartImmediate (&40016)
✅	🔲	Econet_DoImmediate (&40017)
✅	🔲	Econet_AbandonAndReadReceive (&40018)
✅	🔲	Econet_Version (&40019)
✅	🔲	Econet_NetworkState (&4001A)
✅	🔲	Econet_PacketSize (&4001B)
✅	🔲	Econet_ReadTransportName (&4001C)
✅	🔲	Econet_InetRxDirect (&4001D)
✅	🔲	Econet_EnumerateMap (&4001E)
✅	🔲	Econet_EnumerateTransmit (&4001F)
✅	🔲	Econet_HardwareAddresses (&40020)
✅	🔲	Econet_NetworkParameters (&40021)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIDriverStatus
✅	🔲	Service_DCIProtocolStatus
✅	🔲	Service_EconetDying
✅	🔲	Service_InternetStatus
✅	🔲	Service_MessageFileClosed
✅	🔲	Service_Reset

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	?

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	?
✅	🔲	Service_InternetStatus

Vectors

None

Events

In 32bit	In 64 bit	Interface
✅	🔲	?

UpCalls

None

Modules

• MessageTrans
• SharedCLibrary
• Socket
