Module_Hourglass

Module: Hourglass

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Hourglass	ROM modules	Functional	Functional	Gerph	GitHub	32-bit built, 64-bit built, tested in repo

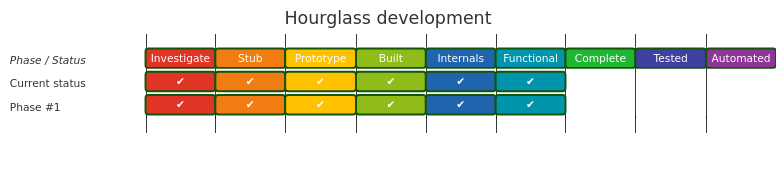

Development status

Completeness

Functionality	Commands	SWIs	Services	TOTAL
76.92%	100.00%	71.43%	0.00%	73.91%

Summary

Hourglass is the standard busy/progress pointer module. It maintains nested busy and percentage state, changes pointer/palette data and exposes the Hourglass SWI chunk for On, Off, Smash, Start and progress operations.

Documentation

URL: PRM

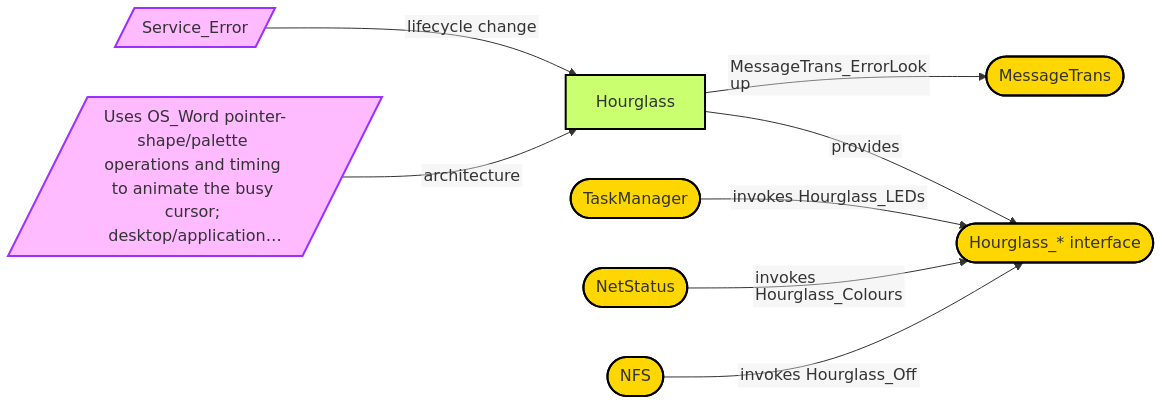

Relationships

Discovered features

• Has background processing
• Has pointer control
• Has services
• Has services fast
• Has swis

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	✅	Can be turned on (default delay)
✅	✅	Can be turned on (user delay)
✅	✅	Can be turned off
✅	✅	Can be smashed to destroy
✅	✅	Can show percentage values
✅	✅	Animates
✅	✅	Restores prior colours
✅	✅	Restores prior pointer state
✅	✅	Restores prior colours and state on finalisation
✅	✅	Uses own colours
🔲	🔲	Can shows 2 LEDs
🔲	🔲	Can shows 4 LEDs
🔲	🔲	Can change its colours

None found

Commands

In 32bit	In 64 bit	Interface
✅	✅	*HOff
✅	✅	*HOn

SWIs

In 32bit	In 64 bit	Interface
✅	✅	Hourglass_On (&406C0)
✅	✅	Hourglass_Off (&406C1)
✅	✅	Hourglass_Smash (&406C2)
✅	✅	Hourglass_Start (&406C3)
✅	✅	Hourglass_Percentage (&406C4)
🔲	🔲	Hourglass_LEDs (&406C5)
🔲	🔲	Hourglass_Colours (&406C6)

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_Error

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• Hourglass
• MessageTrans
