Module_WindowManager_Introspection

Module: WindowManager (Introspection)

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Wimp:Introspection	ROM modules					not built in repo, not tested in repo

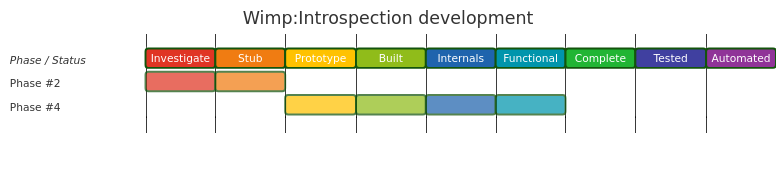

Development status

Completeness

Functionality	SWIs	TOTAL
0.00%	0.00%	0.00%

Summary

The WindowManager provides a few calls for reading information about itself and the system's configuration. These can largely be implemented before the functions themselves, providing dummy or error responses.

Documentation

URL: PRM

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Wimp_ReadSysInfo 0 (Tasks Active)
🔲	🔲	Wimp_ReadSysInfo 1 (Mode)
🔲	🔲	Wimp_ReadSysInfo 2 (Read Sprite Suffix)
🔲	🔲	Wimp_ReadSysInfo 3 (Desktop State)
🔲	🔲	Wimp_ReadSysInfo 4 (Write Direction)
🔲	🔲	Wimp_ReadSysInfo 5 (Current Task)
🔲	🔲	Wimp_ReadSysInfo 6 (Swapping)
🔲	🔲	Wimp_ReadSysInfo 7 (Wimp Version)
🔲	🔲	Wimp_ReadSysInfo 8 (System Font)
🔲	🔲	Wimp_ReadSysInfo 9 (Tool Sprites)
🔲	🔲	Wimp_ReadSysInfo 10 (IconBar)
🔲	🔲	Wimp_ReadSysInfo 11 (App Space Size)
🔲	🔲	Wimp_ReadSysInfo 12 (Messages Debug)
🔲	🔲	Wimp_ReadSysInfo 13 (Memory Debug)
🔲	🔲	Wimp_ReadSysInfo 14 (Translation Tables)
🔲	🔲	Wimp_ReadSysInfo 15 (Iconise Button)
🔲	🔲	Wimp_ReadSysInfo 16 (Base Of Sprites)
🔲	🔲	Wimp_ReadSysInfo 17 (Scroll Pause)
🔲	🔲	Wimp_ReadSysInfo 18 (Task Pollword)
🔲	🔲	Wimp_ReadSysInfo 19 (Base Of Sprites2)
🔲	🔲	Wimp_ReadSysInfo 20 (Special Highlights)
🔲	🔲	Wimp_ReadSysInfo 21 (Text Selections)
🔲	🔲	Wimp_ReadSysInfo 22 (Cursor Colour)
🔲	🔲	Wimp_ReadSysInfo 23 (Drag Move Delay)
🔲	🔲	Wimp_ReadSysInfo 24 (DClick Move Delay)
🔲	🔲	Wimp_ReadSysInfo 25 (Auto-Menu Delays)
🔲	🔲	Wimp_ReadSysInfo 26 (Iconbar Scrolling)
🔲	🔲	Wimp_ReadSysInfo 27 (Edge Notify Delay)

Commands

None

SWIs

In 32bit	In 64 bit	Interface
🔲	🔲	Wimp_ReadSysInfo (&400F2)

Services

None

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• ColourTrans
• Font
