Module_EvaluateExpression

Module: EvaluateExpression

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
EvaluateExpression	ROM modules	Automated	Automated	Gerph		32-bit built, 64-bit built, tested in repo

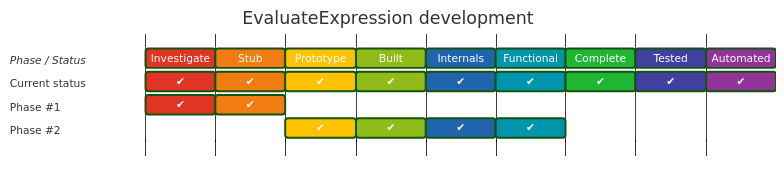

Development status

Completeness

Functionality	Commands	SWIs	TOTAL
100.00%	100.00%	100.00%	100.00%

Summary

The EvaluateExpression module provides the interface for expression processing, used by OS_EvaluateExpression.

The expectation is that there will be both command line versions of the implementation that can be used for testing, and a module which implements the equivalent of the OS_EvaluateExpression SWI calls.

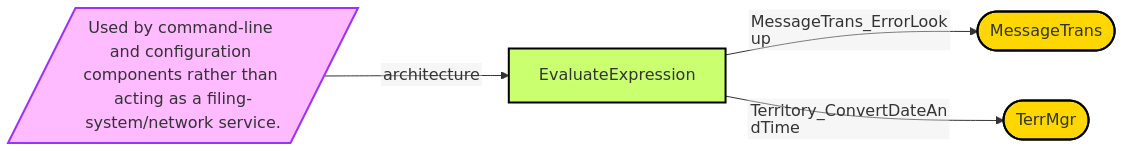

Relationships

Discovered features

• Has kernel collusion
• Uses console output

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	✅	Expands variables
✅	✅	Operates on strings
✅	✅	Operates on numbers
✅	✅	Returns strings
✅	✅	Returns numbers
✅	✅	Precedence honoured
✅	✅	( expressions
✅	✅	( mismatch reported
✅	✅	* multiply
✅	✅	/ division
✅	✅	MOD modulo
✅	✅	+ as unary operator
✅	✅	- as unary operator
✅	✅	+ as binary operator
✅	✅	- as binary operator
✅	✅	<= comparison (number)
✅	✅	>= comparison (number)
✅	✅	= comparison (number)
✅	✅	<> comparison (number)
✅	✅	< comparison (number)
✅	✅	> comparison (number)
✅	✅	<= comparison (string)
✅	✅	>= comparison (string)
✅	✅	= comparison (string)
✅	✅	<> comparison (string)
✅	✅	< comparison (string)
✅	✅	> comparison (string)
✅	✅	<< shift
✅	✅	>>> shift
✅	✅	>> shift
✅	✅	STR conversion
✅	✅	VAL conversion
✅	✅	RIGHT substring
✅	✅	INSTR search
✅	✅	LEFT substring
✅	✅	LEN length
✅	✅	AND binary operator
✅	✅	OR binary operator
✅	✅	EOR binary operator
✅	✅	NOT unary operator
✅	✅	LEAFNAME file leafname
✅	✅	DIRNAME file dirname
✅	✅	CANONICALISE file canonical name
✅	✅	TIMEFORMAT format specifier
✅	✅	SET variable state
✅	✅	MODULEVERSION module version

Commands

In 32bit	In 64 bit	Interface
✅	✅	*Eval

SWIs

In 32bit	In 64 bit	Interface
✅	✅	OS_EvaluateExpression

Services

None

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• MessageTrans
• Territory
