Module_ColourDbox

Module: ColourDbox

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ColourDbox	ROM modules	-				not built in repo, not tested in repo

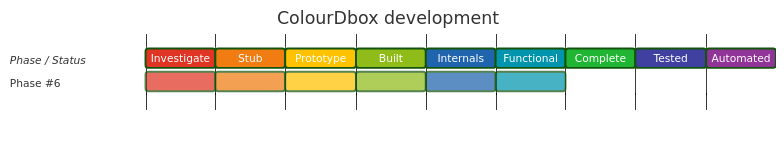

Development status

Completeness

Functionality	SWIs	Services	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%

Summary

ColourDbox is a Toolbox colour-selection dialogue object, normally coordinating with the Colour Picker to edit a chosen colour and delivering the result as Toolbox events.

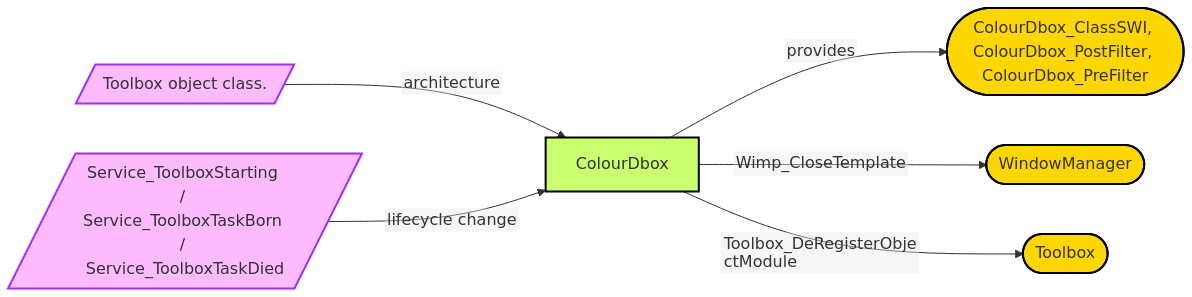

Relationships

Discovered features

• Has services
• Has services fast
• Has swis
• Is c
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Resourcefs files
✅	🔲	Toolbox object

Commands

None

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	ColourDbox_ClassSWI (&829C0)
✅	🔲	ColourDbox_PostFilter (&829C1)
✅	🔲	ColourDbox_PreFilter (&829C2)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_ResourceFSStarting
✅	🔲	Service_ToolboxStarting
✅	🔲	Service_ToolboxSubMenu
✅	🔲	Service_ToolboxTaskBorn
✅	🔲	Service_ToolboxTaskDied

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_ToolboxSubMenu

Vectors

None

Events

None

UpCalls

None

Modules

• ColourPicker
• MessageTrans
• ResourceFS
• SharedCLibrary
• Toolbox
• Wimp
