Module_InternetTime

Module: InternetTime

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
InternetTime	ROM modules	-				not built in repo, not tested in repo

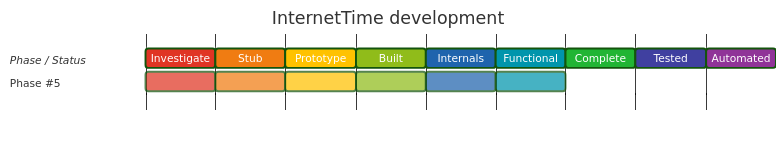

Development status

Completeness

Functionality	SWIs	Services	Vectors	Events	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

InternetTime collects Internet/DCI network statistics and uses Internet events to update its state; it is the network-time/status support module rather than a transport driver.

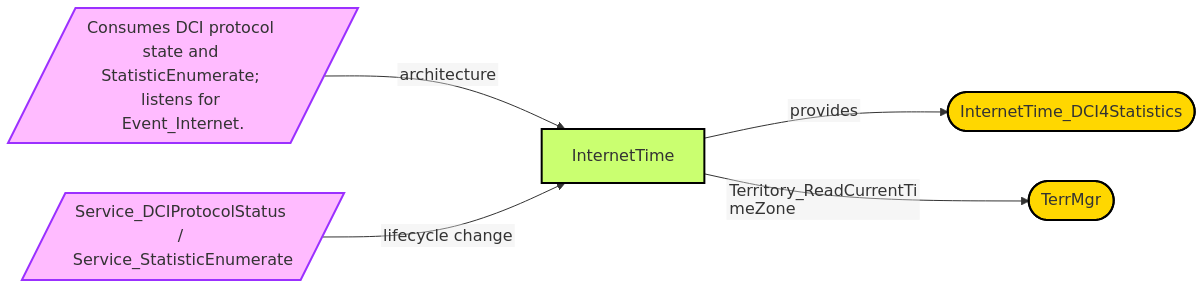

Relationships

Discovered features

• Has background processing
• Has services
• Has services fast
• Has swis
• Is c
• Sets variables
• Uses internet

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Dci4 statistics
✅	🔲	Internet service

Commands

None

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	InternetTime_DCI4Statistics (&578C0)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIProtocolStatus
✅	🔲	Service_StatisticEnumerate

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	EventV

Events

In 32bit	In 64 bit	Interface
✅	🔲	Event_Internet

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• MessageTrans
• Resolver
• SharedCLibrary
• Socket
• Territory
