Module_Toolbox

Module: Toolbox

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Toolbox	ROM modules	-				not built in repo, not tested in repo

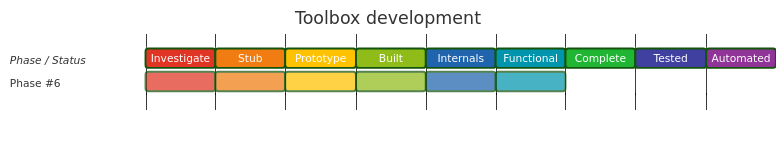

Development status

Completeness

Functionality	Commands	SWIs	Services	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

Toolbox is the object-oriented GUI framework above Wimp. It creates, shows, hides, copies and destroys objects from templates; registers object modules and Wimp filters; owns Toolbox task lifetime; raises Toolbox events; and provides timers/resources. Object-class modules register with it rather than having applications manipulate all Wimp details directly.

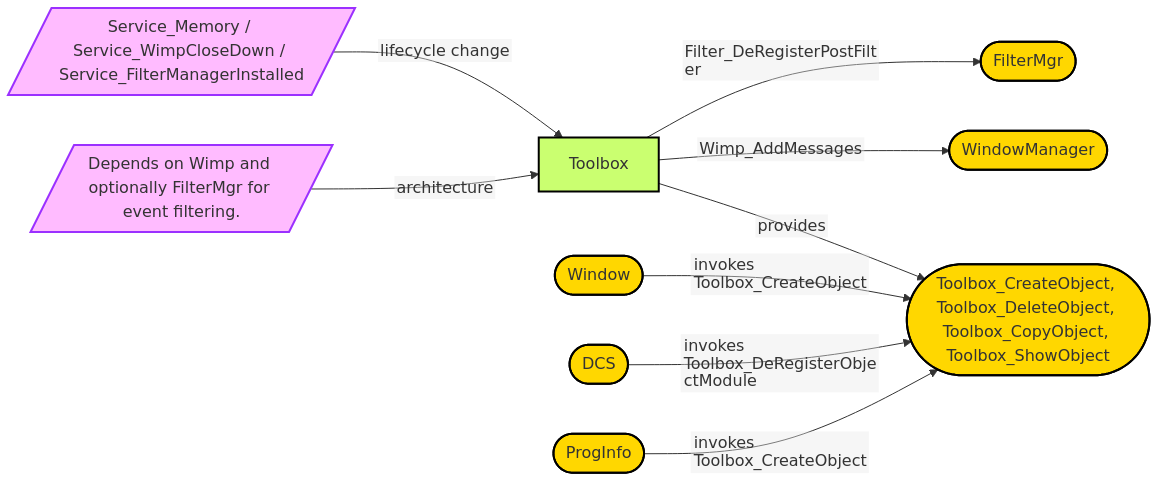

Relationships

Discovered features

• Has kernel collusion
• Has services
• Has services fast
• Has swis
• Is c
• Is desktop application
• Sets variables
• Uses dynamic area
• Uses graphics output
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Desktop filter
✅	🔲	Resourcefs files

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*Toolbox_Objects

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	Toolbox_CreateObject (&44EC0)
✅	🔲	Toolbox_DeleteObject (&44EC1)
✅	🔲	Toolbox_CopyObject (&44EC2)
✅	🔲	Toolbox_ShowObject (&44EC3)
✅	🔲	Toolbox_HideObject (&44EC4)
✅	🔲	Toolbox_GetObjectInfo (&44EC5)
✅	🔲	Toolbox_ObjectMiscOp (&44EC6)
✅	🔲	Toolbox_SetClientHandle (&44EC7)
✅	🔲	Toolbox_GetClientHandle (&44EC8)
✅	🔲	Toolbox_GetObjectClass (&44EC9)
✅	🔲	Toolbox_GetParent (&44ECA)
✅	🔲	Toolbox_GetAncestor (&44ECB)
✅	🔲	Toolbox_GetTemplateName (&44ECC)
✅	🔲	Toolbox_RaiseToolboxEvent (&44ECD)
✅	🔲	Toolbox_GetSysInfo (&44ECE)
✅	🔲	Toolbox_Initialise (&44ECF)
✅	🔲	Toolbox_LoadResources (&44ED0)
✅	🔲	Toolbox_NULL (&44ED1)
✅	🔲	Toolbox_TimerOp (&44EF8)
✅	🔲	Toolbox_Memory (&44EF9)
✅	🔲	Toolbox_DeRegisterObjectModule (&44EFA)
✅	🔲	Toolbox_TemplateLookUp (&44EFB)
✅	🔲	Toolbox_GetInternalHandle (&44EFC)
✅	🔲	Toolbox_RegisterObjectModule (&44EFD)
✅	🔲	Toolbox_RegisterPreFilter (&44EFE)
✅	🔲	Toolbox_RegisterPostFilter (&44EFF)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DynamicAreaRenumber
✅	🔲	Service_FilterManagerInstalled
✅	🔲	Service_Memory
✅	🔲	Service_PostInit
✅	🔲	Service_ResourceFSStarting
✅	🔲	Service_WimpCloseDown

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	?
✅	🔲	Service_ToolboxDying
✅	🔲	Service_ToolboxSubMenu
✅	🔲	Service_ToolboxTaskBorn

Vectors

None

Events

None

UpCalls

None

Modules

• Filter
• MessageTrans
• ResourceFS
• SharedCLibrary
• Territory
• Toolbox
• Wimp
