Module_DisplayManager

Module: Display

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
DisplayManager	ROM modules	Built	Built	Martin Eastwood	GitHub	not built in repo, not tested in repo

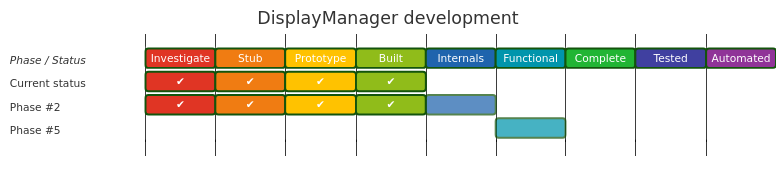

Development status

Completeness

Functionality	Commands	Services	Uses Vectors	TOTAL
0.00%	0.00%	0.00%	0.00%	0.00%

Summary

Display is the desktop display-configuration/front-end component. It responds to mode, calibration and palette changes and to the Wimp/Filer start sequence, presenting and maintaining the user's display settings.

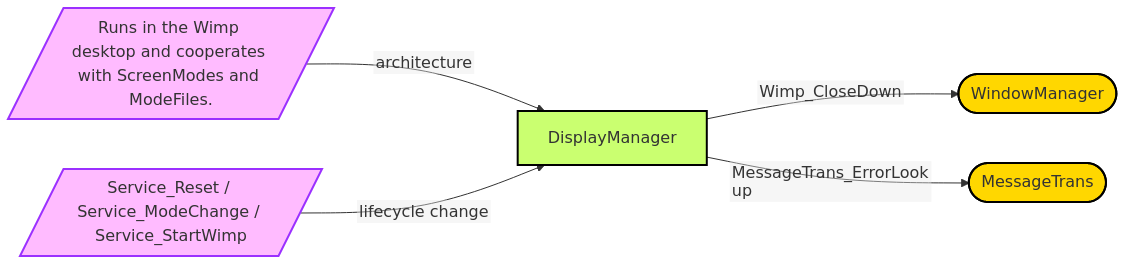

Relationships

Discovered features

• Has services
• Has services fast
• Is desktop application
• Sets variables
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Default desktop application
🔲	🔲	Can select modes by string
🔲	🔲	Menu of resolutions
🔲	🔲	Divider between DARs
🔲	🔲	Menu of depths
🔲	🔲	Menu of refresh rates
🔲	🔲	Greys impossible depths

Commands

In 32bit	In 64 bit	Interface
🔲	🔲	*Desktop_DisplayManager

SWIs

None

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_CalibrationChanged
🔲	🔲	Service_ModeChange
🔲	🔲	Service_ModeFileChanged
🔲	🔲	Service_Reset
🔲	🔲	Service_StartWimp
🔲	🔲	Service_StartedWimp
🔲	🔲	Service_WimpPalette

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

In 32bit	In 64 bit	Interface
🔲	🔲	PaletteV

Events

None

UpCalls

None

Modules

• ColourTrans
• MessageTrans
• ScreenModes
• Wimp
