Module_ImageFileConvert

Module: ImageFileConvert

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ImageFileConvert	ROM modules	-				not built in repo, not tested in repo

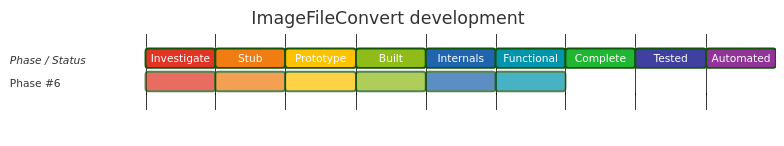

Development status

Completeness

Functionality	Commands	SWIs	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%

Summary

ImageFileConvert is the companion pluggable image-converter registry. It lets converter modules register their formats and lets callers convert/enumerate/query converters through one API; it tracks ImageFileRender lifetime because conversion can require rendering support.

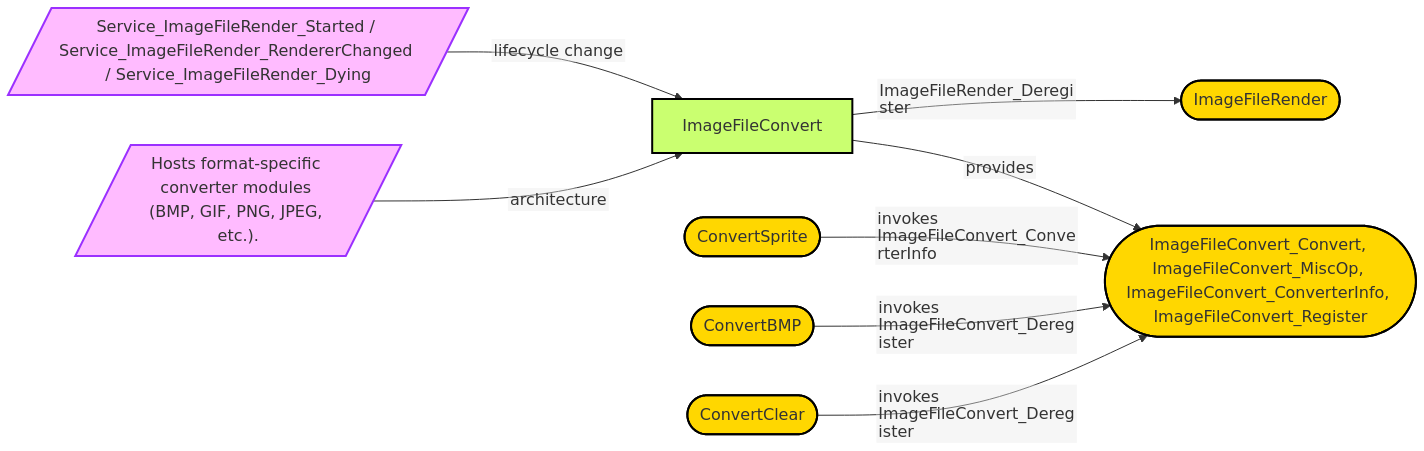

Relationships

Discovered features

• Has services
• Has services fast
• Has swis
• Is c
• Uses dynamic area
• Uses image conversion

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Image rendering

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*ImageFileConverters

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	ImageFileConvert_Convert (&56840)
✅	🔲	ImageFileConvert_MiscOp (&56841)
✅	🔲	ImageFileConvert_ConverterInfo (&56842)
✅	🔲	ImageFileConvert_Register (&56843)
✅	🔲	ImageFileConvert_Deregister (&56844)
✅	🔲	ImageFileConvert_EnumerateConverters (&56845)

Services

None

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_ImageFileConvert_ConverterChanged
✅	🔲	Service_ImageFileConvert_Dying
✅	🔲	Service_ImageFileConvert_Started

Vectors

None

Events

None

UpCalls

None

Modules

• ImageFileConvert
• ImageFileRender
• MessageTrans
• SharedCLibrary
