Module_FileInfo

Module: FileInfo

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
FileInfo	ROM modules	-				not built in repo, not tested in repo

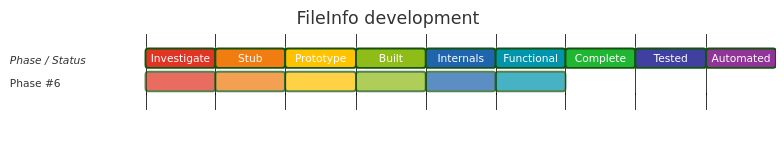

Development status

Completeness

Functionality	SWIs	Services	TOTAL
50.00%	50.00%	50.00%	50.00%

Summary

FileInfo is a Toolbox object class for displaying/editing file information in standard UI. Like other Toolbox classes it has object/task/filter/create/show/hide lifecycle layers rather than owning the Wimp directly.

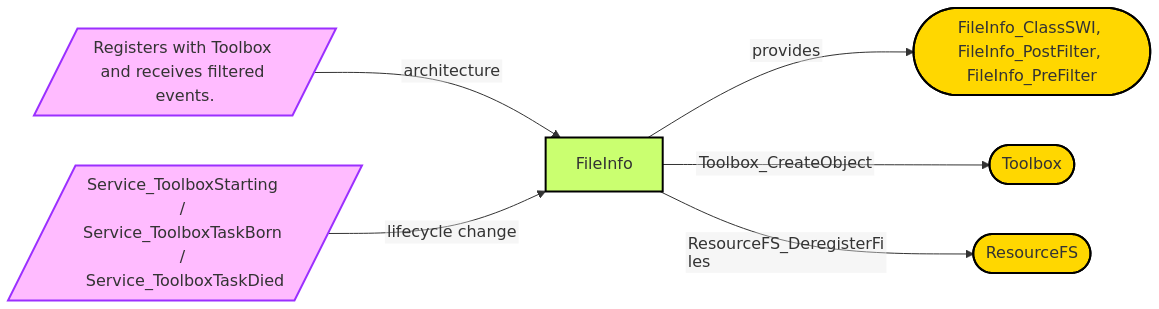

Relationships

Discovered features

• Has services
• Has services fast
• Has swis
• Is c
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Resourcefs files
✅	🔲	Toolbox object

Commands

None

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	FileInfo_ClassSWI (&82AC0)
✅	🔲	FileInfo_PostFilter (&82AC1)
✅	🔲	FileInfo_PreFilter (&82AC2)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_ResourceFSStarting
✅	🔲	Service_ToolboxStarting
✅	🔲	Service_ToolboxTaskBorn
✅	🔲	Service_ToolboxTaskDied

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• MessageTrans
• ResourceFS
• SharedCLibrary
• Territory
• Toolbox
• Wimp
• Window
