Module_Debugger

Module: Debugger

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Debugger	ROM modules	Functional	Functional	Gerph	GitHub	32-bit built, 64-bit built, tested in repo

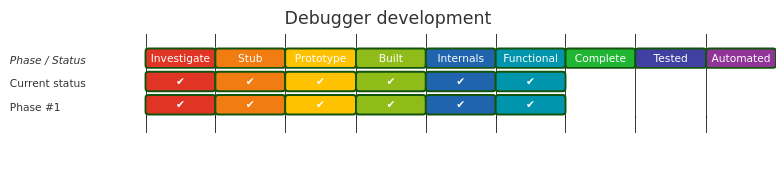

Development status

Completeness

Functionality	Commands	SWIs	Services	TOTAL
19.64%	77.27%	50.00%	0.00%	36.96%

Summary

Debugger is the low-level RISC OS debugger/disassembler module, including ARM and Thumb disassembly support plus debugger workspace, floating-point and option handling.

Documentation

URL: PRM

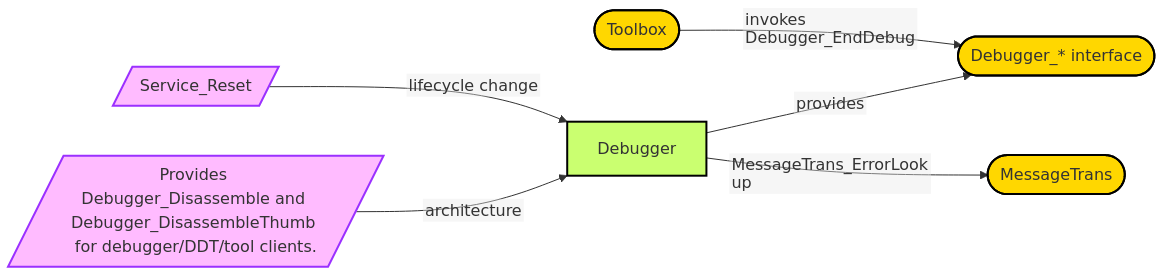

Relationships

Discovered features

• Has application environment
• Has dynamic code
• Has services
• Has services fast
• Has swis
• Uses console input
• Uses console output
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Breakpoints
✅	✅	ARM32 default in ARM32 host, AArch64 default in AArch64 host
✅	✅	Provides comments on immediate constants
🔲	🔲	Indicates target address contents for load instructions
🔲	🔲	Provides warnings in comments for bad usage of instructions
🔲	🔲	*MemoryI/*DumpI shows function names beside entry points
🔲	🔲	*MemoryI/*DumpI shows function names at branch points
🔲	🔲	Uses MessageTrans
✅	✅	DisassembleArch supports ARM
✅	✅	DisassembleArch supports Thumb
✅	✅	DisassembleArch supports AArch64
🔲	🔲	Supports DebuggerPlus flag FDwithR13 (use FD with R13, eg. STMDB R13 -> STMFD R13)
🔲	🔲	Supports DebuggerPlus flag APCS (use APCS-R register set)
🔲	🔲	Supports DebuggerPlus flag LFMstack (use stack notation with LFM & SFM where possible)
🔲	🔲	Supports DebuggerPlus flag LFS (use LFS and SFS in preference to LFM & SFM)
🔲	🔲	Supports DebuggerPlus flag QuoteSWIs (put quotes around SWI names)
🔲	🔲	Supports DebuggerPlus flag UseDCD (use DCD instead of 'Undefined instruction')
🔲	🔲	Supports DebuggerPlus flag UseVDU (use VDU x instead of SWI OS_WriteI+x)
🔲	🔲	Supports DebuggerPlus flag ANDEQasDCD (use DCD instead of 'ANDEQ' and similar)
🔲	🔲	Supports DebuggerPlus flag UseADRL (use ADRL (ADRX) instead of ADR + ADD/SUB (+ ADD/SUB))
🔲	🔲	Supports DebuggerPlus flag UseADRW (use ADRW, LDRW, STRW for R12+/-m & [R12,#m])
🔲	🔲	Supports DebuggerPlus flag LongMul (append L to UMUL, SMUL, UMLA, SMLA)
🔲	🔲	Supports DebuggerPlus flag UseLDRL (use LDRL instead of ADR/ADD/SUB + LDR)
🔲	🔲	Supports DebuggerPlus flag UseNOP (use NOP for MOV R0,R0 and BRK for DCD &x6000010)
🔲	🔲	Supports DebuggerPlus flag OldPSR (use old CPSR/SPSR names)
🔲	🔲	Supports DebuggerPlus flag Wide (disassemble for wide display)
🔲	🔲	Supports DebuggerPlus flag HSLO (use HS and LO instead of CS and CC)
🔲	🔲	Supports DebuggerPlus flag Shift (append comments of the form x<<y)

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*BreakClr
✅	🔲	*BreakList
✅	🔲	*BreakSet
✅	🔲	*Continue
✅	🔲	*Debug
✅	✅	*InitStore
✅	✅	*Memory
✅	✅	*MemoryA
✅	✅	*MemoryI
✅	✅	*DumpI
✅	✅	*ShowRegs

SWIs

In 32bit	In 64 bit	Interface
✅	✅	Debugger_Disassemble (&40380)
✅	✅	Debugger_DisassembleThumb (&40381)
🔲	🔲	Debugger_Flags (&40382)
🔲	🔲	Debugger_CPU (&40383)
🔲	🔲	Debugger_DisassemblePlus (&40384)
✅	✅	Debugger_DisassembleArch (&40385)

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_Reset

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• Debugger
• MessageTrans
