Module_ColourTrans

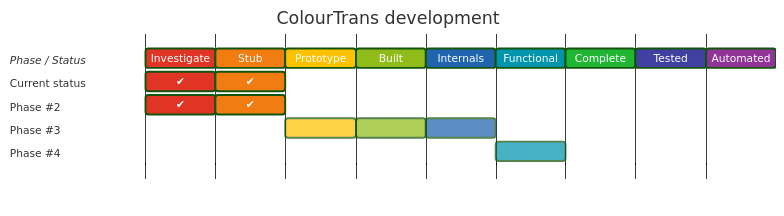

| Component | Section | 32-bit | 64-bit | Claimant | Source | Repo summary |
|---|---|---|---|---|---|---|
| ColourTrans | ROM modules | Stub | Stub | Gerph | not built in repo, not tested in repo |
| Functionality | Commands | SWIs | Services | Vectors | Uses Services | Uses Vectors | TOTAL |
|---|---|---|---|---|---|---|---|
| 0.00% | 0.00% | 0.00% | 0.00% | 0.00% | 0.00% | 0.00% | 0.00% |

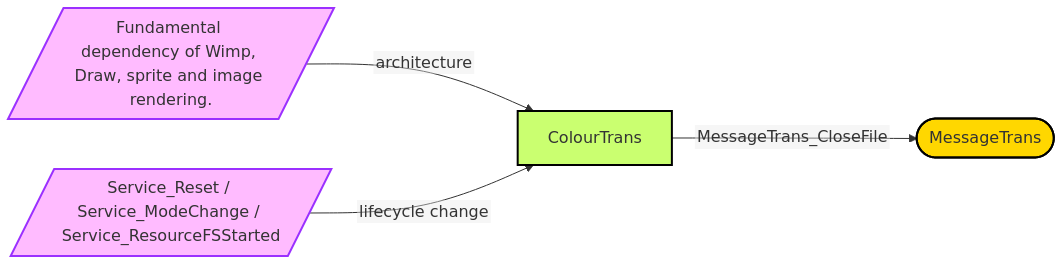

Colours is the ColourTrans/colour-translation rendering service. It tracks mode, calibration and palette-related changes and is used by rendering clients to map colours correctly between sprites, screen modes and output contexts.
URL: PRM
- Has directory access
- Has dynamic code
- Has file access
- Has services
- Has services fast
- Has swis
- Uses graphics output
- Uses messagetrans
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Device-independent RGB colour selection |
| 🔲 | 🔲 | Weighted least-squares colour mapping (R:2, G:4, B:1) |
| 🔲 | 🔲 | Colour calibration for monitors and printers |
| 🔲 | 🔲 | Pixel translation table generation for sprites |
| 🔲 | 🔲 | Anti-aliasing colour range calculation for Font Manager |
| 🔲 | 🔲 | Colour model conversion: RGB to CIE (XYZ) |
| 🔲 | 🔲 | Colour model conversion: RGB to HSV |
| 🔲 | 🔲 | Colour model conversion: RGB to CMYK |
| 🔲 | 🔲 | Calibration table interpolation |
| 🔲 | 🔲 | Colour mapping cache management |
| 🔲 | 🔲 | Support for 2-colour modes |
| 🔲 | 🔲 | Support for 4-colour modes |
| 🔲 | 🔲 | Support for 16-colour modes |
| 🔲 | 🔲 | Support for 256-colour compacted palettes |
| 🔲 | 🔲 | Support for 256-colour fully-specified palettes |
| 🔲 | 🔲 | Support for 16-bit palettes |
| 🔲 | 🔲 | Support for 32-bit palettes |
| 🔲 | 🔲 | PixTrans: Support for targetting 2-colour modes |
| 🔲 | 🔲 | PixTrans: Support for targetting 4-colour modes |
| 🔲 | 🔲 | PixTrans: Support for targetting 16-colour modes |
| 🔲 | 🔲 | PixTrans: Support for targetting 256-colour compacted palettes |
| 🔲 | 🔲 | PixTrans: Support for targetting 256-colour fully-specified palettes |
| 🔲 | 🔲 | PixTrans: Support for targetting 16-bit palettes |
| 🔲 | 🔲 | PixTrans: Support for targetting 32-bit palettes |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | *ColourTransLoadings |
| 🔲 | 🔲 | *ColourTransMap |
| 🔲 | 🔲 | *ColourTransMapSize |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 |
ColourTrans_SelectTable (&40740) |
| 🔲 | 🔲 |
ColourTrans_SelectGCOLTable (&40741) |
| 🔲 | 🔲 |
ColourTrans_ReturnGCOL (&40742) |
| 🔲 | 🔲 |
ColourTrans_SetGCOL (&40743) |
| 🔲 | 🔲 |
ColourTrans_ReturnColourNumber (&40744) |
| 🔲 | 🔲 |
ColourTrans_ReturnGCOLForMode (&40745) |
| 🔲 | 🔲 |
ColourTrans_ReturnColourNumberForMode (&40746) |
| 🔲 | 🔲 |
ColourTrans_ReturnOppGCOL (&40747) |
| 🔲 | 🔲 |
ColourTrans_SetOppGCOL (&40748) |
| 🔲 | 🔲 |
ColourTrans_ReturnOppColourNumber (&40749) |
| 🔲 | 🔲 |
ColourTrans_ReturnOppGCOLForMode (&4074A) |
| 🔲 | 🔲 |
ColourTrans_ReturnOppColourNumberForMode (&4074B) |
| 🔲 | 🔲 |
ColourTrans_GCOLToColourNumber (&4074C) |
| 🔲 | 🔲 |
ColourTrans_ColourNumberToGCOL (&4074D) |
| 🔲 | 🔲 |
ColourTrans_ReturnFontColours (&4074E) |
| 🔲 | 🔲 |
ColourTrans_SetFontColours (&4074F) |
| 🔲 | 🔲 |
ColourTrans_InvalidateCache (&40750) |
| 🔲 | 🔲 |
ColourTrans_SetCalibration (&40751) |
| 🔲 | 🔲 |
ColourTrans_ReadCalibration (&40752) |
| 🔲 | 🔲 |
ColourTrans_ConvertDeviceColour (&40753) |
| 🔲 | 🔲 |
ColourTrans_ConvertDevicePalette (&40754) |
| 🔲 | 🔲 |
ColourTrans_ConvertRGBToCIE (&40755) |
| 🔲 | 🔲 |
ColourTrans_ConvertCIEToRGB (&40756) |
| 🔲 | 🔲 |
ColourTrans_WriteCalibrationToFile (&40757) |
| 🔲 | 🔲 |
ColourTrans_ConvertRGBToHSV (&40758) |
| 🔲 | 🔲 |
ColourTrans_ConvertHSVToRGB (&40759) |
| 🔲 | 🔲 |
ColourTrans_ConvertRGBToCMYK (&4075A) |
| 🔲 | 🔲 |
ColourTrans_ConvertCMYKToRGB (&4075B) |
| 🔲 | 🔲 |
ColourTrans_ReadPalette (&4075C) |
| 🔲 | 🔲 |
ColourTrans_WritePalette (&4075D) |
| 🔲 | 🔲 |
ColourTrans_SetColour (&4075E) |
| 🔲 | 🔲 |
ColourTrans_MiscOp (&4075F) |
| 🔲 | 🔲 |
ColourTrans_WriteLoadingsToFile (&40760) |
| 🔲 | 🔲 |
ColourTrans_SetTextColour (&40761) |
| 🔲 | 🔲 |
ColourTrans_SetOppTextColour (&40762) |
| 🔲 | 🔲 |
ColourTrans_GenerateTable (&40763) |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Service_ModeChange |
| 🔲 | 🔲 | Service_Reset |
| 🔲 | 🔲 | Service_ResourceFSStarted |
| 🔲 | 🔲 | Service_SwitchingOutputToSprite |
| 🔲 | 🔲 | Service_WimpSaveDesktop |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | ColourV |
None
None
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Service_CalibrationChanged |
| 🔲 | 🔲 | Service_InvalidateCache |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | ColourV |
| 🔲 | 🔲 | PaletteV |
None
None
ColourTransFontMessageTransSquash
