Module: Internet

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Internet	ROM modules	-				not built in repo, not tested in repo

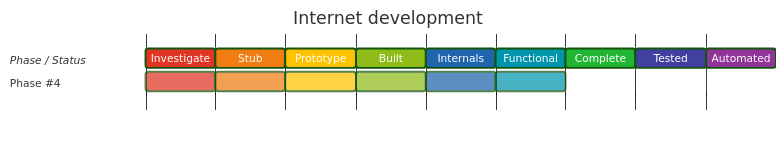

Development status

Completeness

Commands	SWIs	Services	Vectors	Uses Services	Uses Events	Uses UpCalls	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

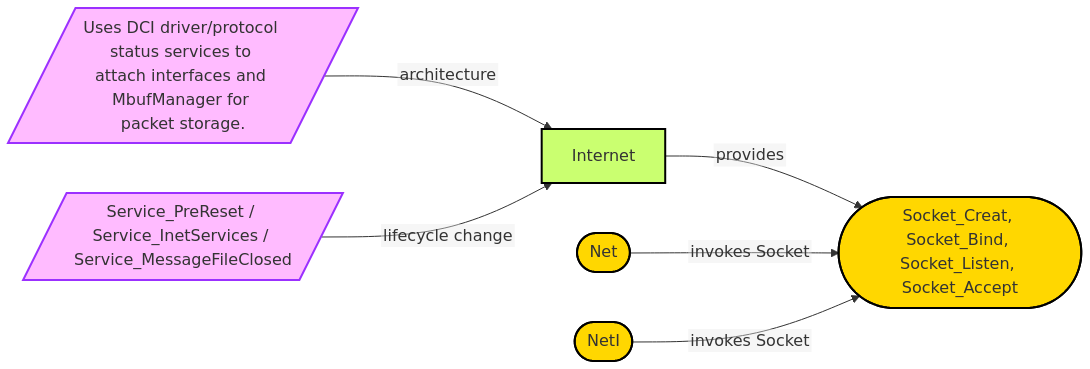

Internet is the RISC OS TCP/IP stack and Berkeley-socket API module. It supplies Socket_* calls for TCP/UDP/IP sockets, select/ioctl and vector I/O; it attaches to DCI-4 network drivers and can invoke packet filters/InetServices.

Documentation

URL: PRM

Relationships

Discovered features

• Has services
• Has services fast
• Has swis
• Is c
• Uses econet
• Uses logging
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface

None found

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*InetGateway
✅	🔲	*InetInfo

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	Socket_Creat (&41200)
✅	🔲	Socket_Bind (&41201)
✅	🔲	Socket_Listen (&41202)
✅	🔲	Socket_Accept (&41203)
✅	🔲	Socket_Connect (&41204)
✅	🔲	Socket_Recv (&41205)
✅	🔲	Socket_Recvfrom (&41206)
✅	🔲	Socket_Recvmsg (&41207)
✅	🔲	Socket_Send (&41208)
✅	🔲	Socket_Sendto (&41209)
✅	🔲	Socket_Sendmsg (&4120A)
✅	🔲	Socket_Shutdown (&4120B)
✅	🔲	Socket_Setsockopt (&4120C)
✅	🔲	Socket_Getsockopt (&4120D)
✅	🔲	Socket_Getpeername (&4120E)
✅	🔲	Socket_Getsockname (&4120F)
✅	🔲	Socket_Close (&41210)
✅	🔲	Socket_Select (&41211)
✅	🔲	Socket_Ioctl (&41212)
✅	🔲	Socket_Read (&41213)
✅	🔲	Socket_Write (&41214)
✅	🔲	Socket_Stat (&41215)
✅	🔲	Socket_Readv (&41216)
✅	🔲	Socket_Writev (&41217)
✅	🔲	Socket_Gettsize (&41218)
✅	🔲	Socket_Sendtosm (&41219)
✅	🔲	Socket_Sysctl (&4121A)
✅	🔲	Socket_Accept_1 (&4121B)
✅	🔲	Socket_Recvfrom_1 (&4121C)
✅	🔲	Socket_Recvmsg_1 (&4121D)
✅	🔲	Socket_Sendmsg_1 (&4121E)
✅	🔲	Socket_Getpeername_1 (&4121F)
✅	🔲	Socket_Getsockname_1 (&41220)
✅	🔲	Socket_InternalLookup (&41221)
✅	🔲	Socket_Version (&41222)
✅	🔲	Socket_Filter (&41223)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIDriverStatus
✅	🔲	Service_InetServices
✅	🔲	Service_MbufManagerStatus
✅	🔲	Service_MessageFileClosed
✅	🔲	Service_PreReset

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	?

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIProtocolStatus
✅	🔲	Service_EnumerateNetworkDrivers
✅	🔲	Service_InternetStatus

Vectors

None

Events

In 32bit	In 64 bit	Interface
✅	🔲	?
✅	🔲	Event_Internet

UpCalls

In 32bit	In 64 bit	Interface
✅	🔲	?

Modules

• Econet
• InetServices
• Mbuf
• MessageTrans
• Resolver
• SharedCLibrary
• SysLog
• TaskWindow
