Module_ResourceFS

Module: ResourceFS

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ResourceFS	ROM modules	Internals	Internals	Gerph		32-bit built, 64-bit built, tested in repo

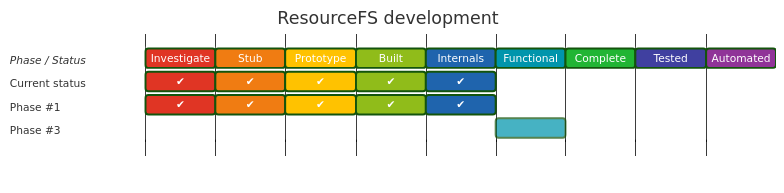

Development status

Completeness

Functionality	Commands	SWIs	Services	Uses Services	Uses UpCalls	TOTAL
15.38%	0.00%	50.00%	0.00%	50.00%	0.00%	20.45%

Summary

ResourceFS is the ROM/RMA resource filing system. Modules register embedded, named resource files (messages, sprites, templates, etc.); ResourceFS links them into Resources: and notifies consumers after the combined resource namespace changes.

Documentation

URL: PRM

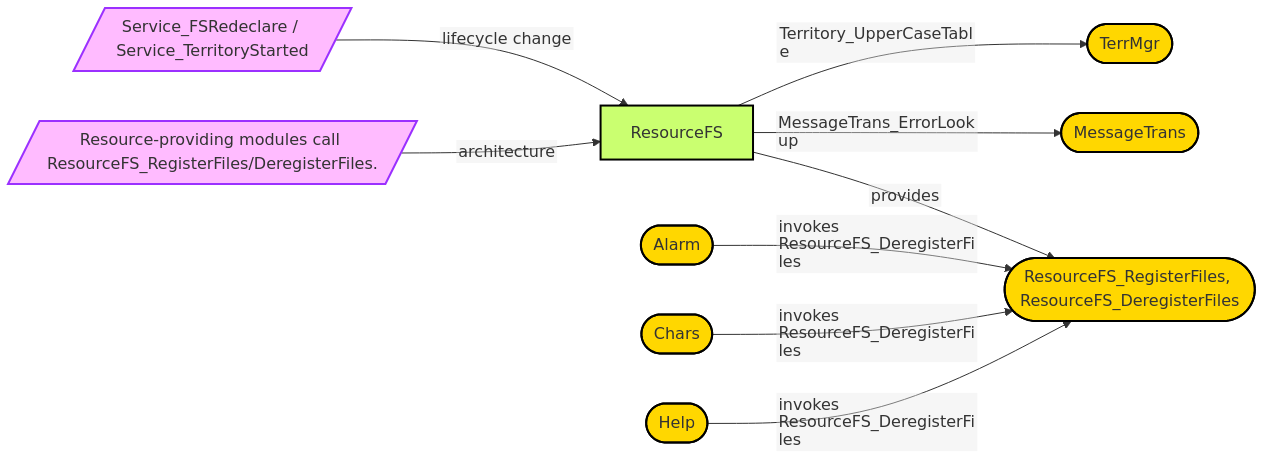

Relationships

Discovered features

• Has services
• Has services fast
• Has swis
• Sets variables
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Filesystem
✅	🔲	Can register file lists
✅	🔲	Can deregister file lists
✅	🔲	Can list files
✅	🔲	Can export files
🔲	🔲	FS: Can enumerate registered files
🔲	🔲	FS: Can generate implicit directories
🔲	🔲	FS: Can open files
🔲	🔲	FS: Can close files
🔲	🔲	FS: Can load files
🔲	🔲	FS: Can read bytes from open files
🔲	🔲	FS: Can read blocks from open files
🔲	🔲	FS: Can directory entry

Commands

In 32bit	In 64 bit	Interface
🔲	🔲	*ResourceFS

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	ResourceFS_RegisterFiles (&41B40)
✅	🔲	ResourceFS_DeregisterFiles (&41B41)

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_FSRedeclare
🔲	🔲	Service_TerritoryStarted

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_ResourceFSDying
✅	🔲	Service_ResourceFSStarted
✅	🔲	Service_ResourceFSStarting

Vectors

None

Events

None

UpCalls

In 32bit	In 64 bit	Interface
🔲	🔲	UpCall_ModifyingFile

Modules

• MessageTrans
• Territory
