Module_SerialDeviceDriver

Module: SerialDeviceDriver

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
SerialDeviceDriver	ROM modules					not built in repo, not tested in repo

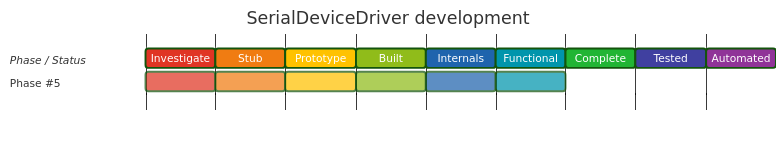

Development status

Completeness

Functionality	Services	Uses Services	Uses Vectors	Uses Events	TOTAL
0.00%	0.00%	0.00%	0.00%	0.00%	0.00%

Summary

SerialDeviceDriver implements the standard serial port using supported 6551 and 710 controller variants. It registers serial streams with DeviceFS and uses BufferManager for interrupt-driven receive/transmit.

Documentation

URL: PRM

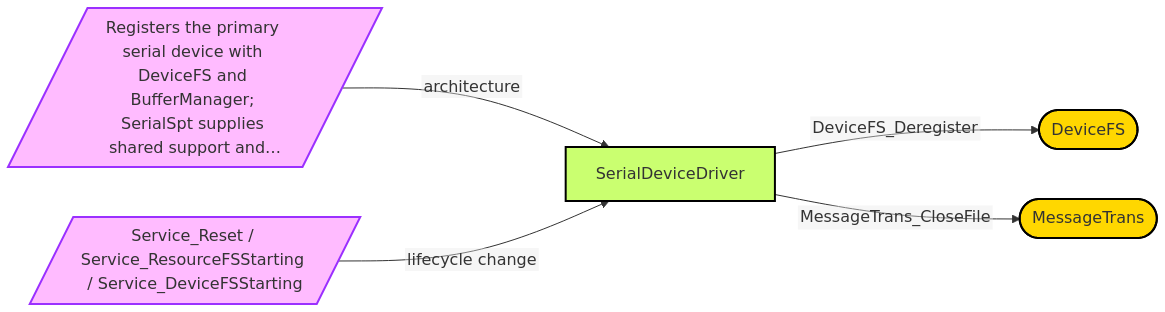

Relationships

Discovered features

• Has background processing
• Has nvram state
• Has services
• Has services fast
• Is hardware specific
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Hardware driver
🔲	🔲	Resourcefs files

Commands

None

SWIs

None

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_DeviceFSCloseRequest
🔲	🔲	Service_DeviceFSDying
🔲	🔲	Service_DeviceFSStarting
🔲	🔲	Service_Portable
🔲	🔲	Service_Reset
🔲	🔲	Service_ResourceFSStarting
🔲	🔲	Service_SerialDevice

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_SerialDevice

Vectors

In 32bit	In 64 bit	Interface
🔲	🔲	?
🔲	🔲	INSV
🔲	🔲	REMV

Events

In 32bit	In 64 bit	Interface
🔲	🔲	Event_RS423Error

UpCalls

None

Modules

• DeviceFS
• MessageTrans
• Portable
• ResourceFS
