Module_RedrawManager

Module: RedrawManager

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
RedrawManager	ROM modules					not built in repo, not tested in repo

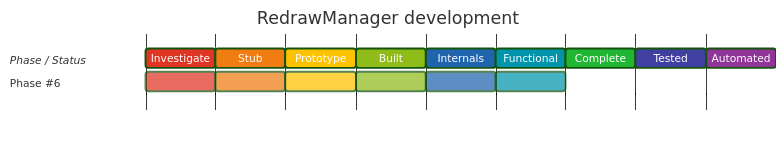

Development status

Completeness

Functionality	Commands	SWIs	Services	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

RedrawManager is a redraw callback coordinator layered on the Wimp filter mechanism. Clients register callbacks with Redraw_AddCallBack/Redraw_RemoveCallBack; it hooks the dynamically allocated Wimp filter vector while present and announces its installation/removal through service calls.

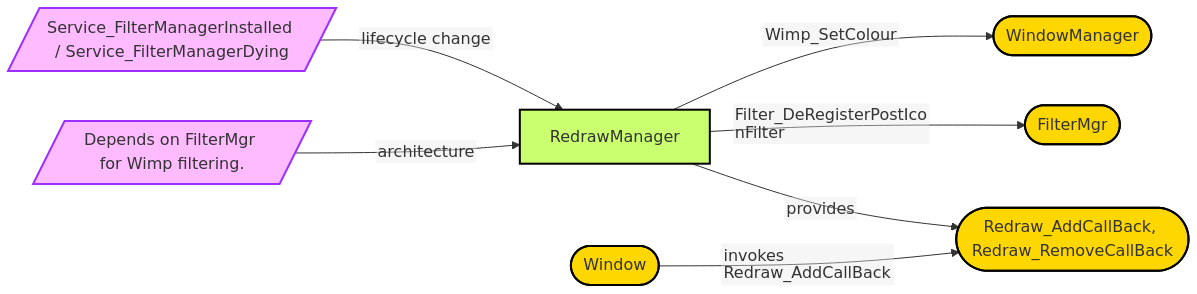

Relationships

Discovered features

• Has kernel collusion
• Has services
• Has services fast
• Has swis
• Is c
• Uses dynamic area

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Desktop filter redraw

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*RedrawList

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	Redraw_AddCallBack (&82C80)
✅	🔲	Redraw_RemoveCallBack (&82C81)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_FilterManagerDying
✅	🔲	Service_FilterManagerInstalled

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_RedrawManagerDying
✅	🔲	Service_RedrawManagerInstalled

Vectors

None

Events

None

UpCalls

None

Modules

• Filter
• MessageTrans
• SharedCLibrary
• Wimp
