Module_DHCPClient

Module: DHCPClient

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
DHCPClient	ROM modules	-				not built in repo, not tested in repo

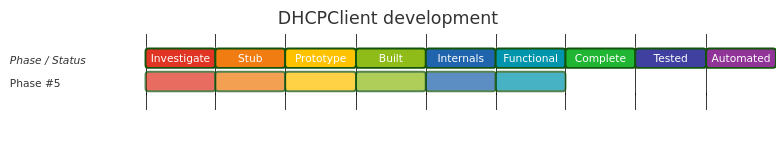

Development status

Completeness

Functionality	Commands	SWIs	Services	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

DHCPClient configures IPv4 network interfaces dynamically through DHCP, maintains leases/state and contributes DCI statistics.

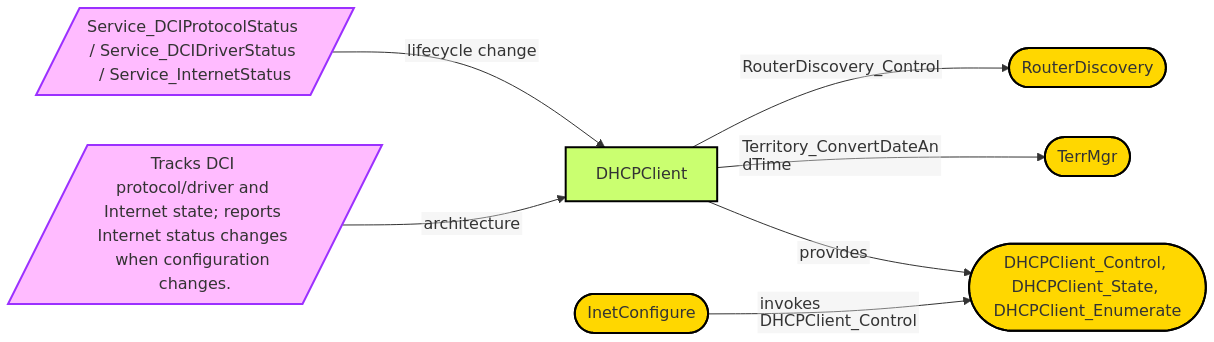

Relationships

Discovered features

• Has background processing
• Has services
• Has services fast
• Has swis
• Is c
• Uses internet
• Uses logging

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Dci4 statistics
✅	🔲	Internet configuration

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*DHCP
✅	🔲	*DHCPStatus

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	DHCPClient_Control (&55E00)
✅	🔲	DHCPClient_State (&55E01)
✅	🔲	DHCPClient_Enumerate (&55E02)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIDriverStatus
✅	🔲	Service_DCIProtocolStatus
✅	🔲	Service_InternetStatus
✅	🔲	Service_StatisticEnumerate

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_InternetStatus

Vectors

None

Events

None

UpCalls

None

Modules

• MessageTrans
• RouterDiscovery
• SharedCLibrary
• Socket
• SysLog
• Territory
