Module_SysLog

Module: SysLog

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
SysLog	ROM modules	-		Gerph		not built in repo, not tested in repo

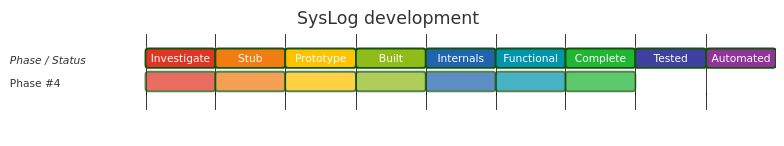

Development status

Completeness

Functionality	Commands	SWIs	Services	Vectors	Events	Uses Services	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

SysLog supplies system logging facilities, including configuration, host-name lookup, ticker/callback scheduling and a server. It follows Internet interface-status changes so logging transport state is correctly updated during network bring-up/shutdown.

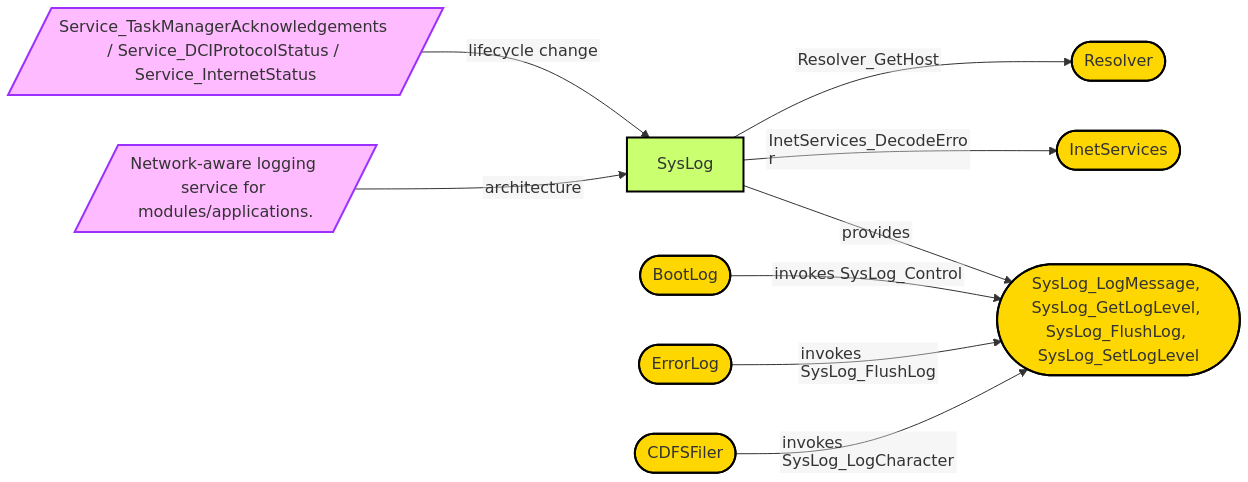

Relationships

Discovered features

• Has background processing
• Has services
• Has services fast
• Has swis
• Is c
• Sets variables
• Uses dynamic area
• Uses heap dynamic area
• Uses internet

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Internet service
✅	🔲	License info

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*SysLog
✅	🔲	*SysLog_Flush
✅	🔲	*SysLog_PollPeriod
✅	🔲	*SysLog_Status

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	SysLog_LogMessage (&4C880)
✅	🔲	SysLog_GetLogLevel (&4C881)
✅	🔲	SysLog_FlushLog (&4C882)
✅	🔲	SysLog_SetLogLevel (&4C883)
✅	🔲	SysLog_LogUnstamped (&4C884)
✅	🔲	SysLog_Indent (&4C885)
✅	🔲	SysLog_UnIndent (&4C886)
✅	🔲	SysLog_NoIndent (&4C887)
✅	🔲	SysLog_OpenSessionLog (&4C888)
✅	🔲	SysLog_CloseSessionLog (&4C889)
✅	🔲	SysLog_LogData (&4C88A)
✅	🔲	SysLog_LogFormatted (&4C88B)
✅	🔲	SysLog_ReadErrorMessage (&4C88C)
✅	🔲	SysLog_LogComplete (&4C88D)
✅	🔲	SysLog_IRQMode (&4C88E)
✅	🔲	SysLog_LogCharacter (&4C88F)
✅	🔲	SysLog_Control (&4C890)
✅	🔲	SysLog_Enumerate (&4C891)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIProtocolStatus
✅	🔲	Service_InternetStatus
✅	🔲	Service_InternetVars
✅	🔲	Service_ShutDown
✅	🔲	Service_ShutDownDismounting
✅	🔲	Service_TaskManagerAcknowledgements

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	EventV

Events

In 32bit	In 64 bit	Interface
✅	🔲	Event_Internet

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_TaskManagerAcknowledgements

Vectors

None

Events

None

UpCalls

None

Modules

• InetServices
• MessageTrans
• Resolver
• SharedCLibrary
• Socket
