Module: FileCore

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
FileCore	ROM modules					not built in repo, not tested in repo

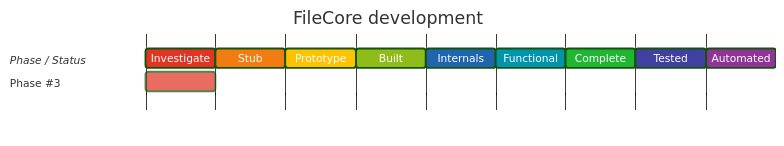

Development status

Completeness

Functionality	Commands	SWIs	Services	Vectors	Uses Services	Uses UpCalls	TOTAL
0.00%	0.00%	0.00%	0.00%	0.00%	0.00%	0.00%	0.00%

Summary

FileCore is RISC OS's core disc-format and block-filesystem engine. It manages FileCore-format maps, directories, allocation, mounting, formatting, sector I/O/cache and disc records while delegating actual media operations to ADFS/SCSIFS-compatible drivers.

Documentation

URL: PRM

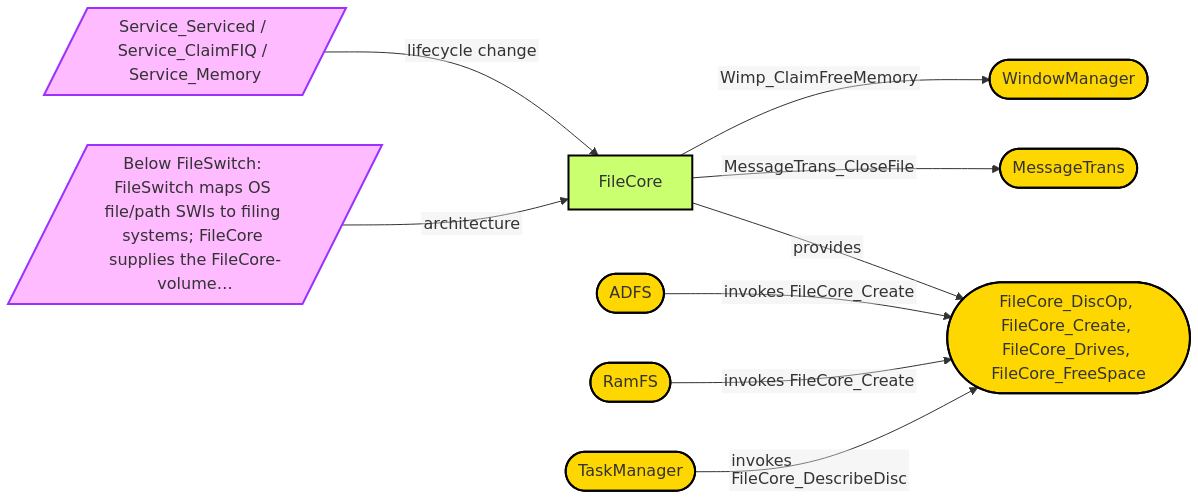

Relationships

Discovered features

• Has background processing
• Has disc access
• Has nvram state
• Has services
• Has services fast
• Has swis
• Uses console input
• Uses console output
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Disc layouts

Commands

In 32bit	In 64 bit	Interface
🔲	🔲	*Backup
🔲	🔲	*Bye
🔲	🔲	*CheckMap
🔲	🔲	*Compact
🔲	🔲	*Defect
🔲	🔲	*Dismount
🔲	🔲	*Drive
🔲	🔲	*Free
🔲	🔲	*Map
🔲	🔲	*Mount
🔲	🔲	*NameDisc
🔲	🔲	*NameDisk
🔲	🔲	*Verify

SWIs

In 32bit	In 64 bit	Interface
🔲	🔲	FileCore_DiscOp (&40540)
🔲	🔲	FileCore_Create (&40541)
🔲	🔲	FileCore_Drives (&40542)
🔲	🔲	FileCore_FreeSpace (&40543)
🔲	🔲	FileCore_FloppyStructure (&40544)
🔲	🔲	FileCore_DescribeDisc (&40545)
🔲	🔲	FileCore_DiscardReadSectorsCache (&40546)
🔲	🔲	FileCore_DiscFormat (&40547)
🔲	🔲	FileCore_LayoutStructure (&40548)
🔲	🔲	FileCore_MiscOp (&40549)
🔲	🔲	FileCore_SectorOp (&4054A)
🔲	🔲	FileCore_FreeSpace64 (&4054B)
🔲	🔲	FileCore_DiscOp64 (&4054C)
🔲	🔲	FileCore_Features (&4054D)

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_ClaimFIQ
🔲	🔲	Service_DisplayFormatHelp
🔲	🔲	Service_EnumerateFormats
🔲	🔲	Service_FSRedeclare
🔲	🔲	Service_IdentifyDisc
🔲	🔲	Service_IdentifyFormat
🔲	🔲	Service_Memory
🔲	🔲	Service_Reset
🔲	🔲	Service_TerritoryStarted

Vectors

In 32bit	In 64 bit	Interface
🔲	🔲	?
🔲	🔲	TickerV

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
🔲	🔲	?
🔲	🔲	Service_ClaimFIQ
🔲	🔲	Service_ReleaseFIQ

Vectors

None

Events

None

UpCalls

In 32bit	In 64 bit	Interface
🔲	🔲	?

Modules

• FileCore
• FSLock
• MessageTrans
• Territory
• Wimp
