Module_Desktop

Module: Desktop

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
Desktop	ROM modules	Internals	Internals	Gerph		not built in repo, not tested in repo
Desktop	Boot utilities					not built in repo, not tested in repo

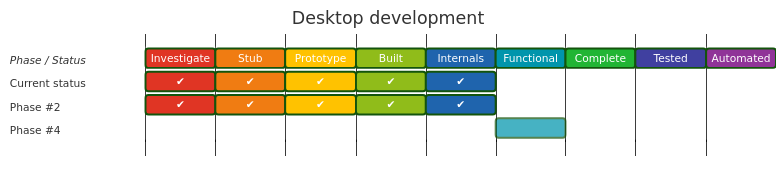

Development status

Completeness

Functionality	Commands	Uses Services	TOTAL
50.00%	50.00%	0.00%	28.57%

Summary

The Desktop module is the session-level desktop coordinator. Its service handler is deliberately small: it mediates the Service_Serviced protocol used while the desktop is being assembled, rather than implementing the Wimp itself. It belongs above Wimp, Filer and Pinboard in the boot-time desktop stack.

Documentation

URL: PRM

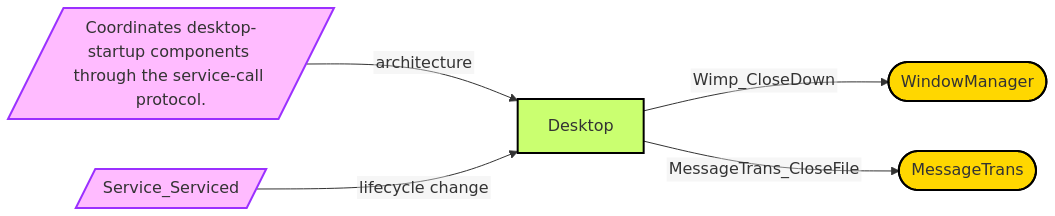

Relationships

Discovered features

• Has argument parsing
• Has directory access
• Has file access
• Has nvram state
• Is desktop application
• Sets variables
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Draws banner on entry to desktop
✅	🔲	Supports compressed sprite area
✅	🔲	Launches standard apps by configuration

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*Desktop

SWIs

None

Services

None

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_DesktopWelcome
🔲	🔲	Service_StartWimp
🔲	🔲	Service_StartedWimp

Vectors

None

Events

None

UpCalls

None

Modules

• ADFS
• Font
• MessageTrans
• Squash
• Wimp
