Module_OSPointer

Module: OSPointer

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
OSPointer	ROM modules	Functional	Internals	Gerph	GitHub	not built in repo, not tested in repo

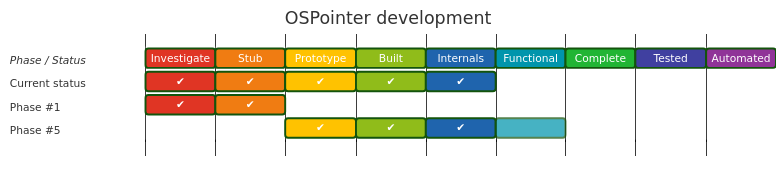

Development status

Completeness

Functionality	Services	Vectors	Events	Uses Vectors	Uses Events	TOTAL
100.00%	100.00%	100.00%	100.00%	100.00%	100.00%	100.00%

Summary

OSPointer owns system pointer/cursor state and updates it across display and buffer lifecycle changes.

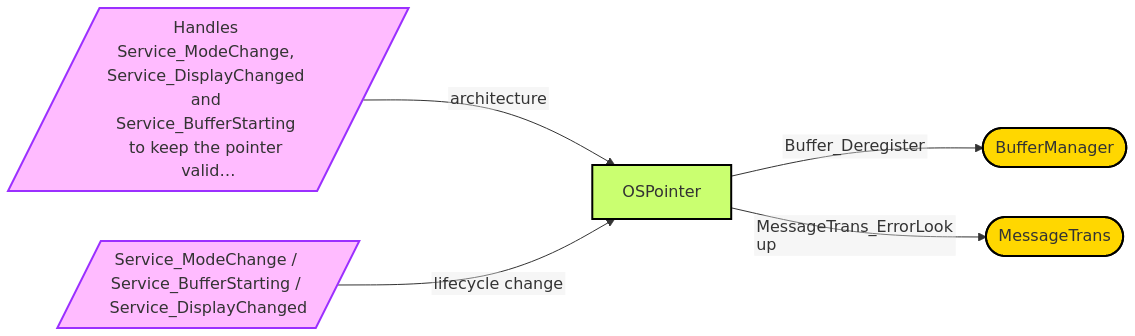

Relationships

Discovered features

• Has kernel collusion
• Has nvram state
• Has services
• Has services fast

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	✅	Buffers
✅	✅	Os swis

Commands

None

SWIs

None

Services

In 32bit	In 64 bit	Interface
✅	✅	Service_BufferStarting
✅	✅	Service_DisplayChanged
✅	✅	Service_ModeChange

Vectors

In 32bit	In 64 bit	Interface
✅	✅	ByteV
✅	✅	EventV
✅	✅	KEYV
✅	✅	MouseV
✅	✅	WordV

Events

In 32bit	In 64 bit	Interface
✅	✅	Event_Expansion
✅	✅	Event_VSync

UpCalls

None

---

Issues calls to

Services

None

Vectors

In 32bit	In 64 bit	Interface
✅	✅	INSV
✅	✅	KEYV
✅	✅	PointerV
✅	✅	REMV
✅	✅	VideoV

Events

In 32bit	In 64 bit	Interface
✅	✅	Event_Expansion
✅	✅	Event_Keyboard
✅	✅	Event_Mouse

UpCalls

None

Modules

• Buffer
• MessageTrans
