Module_WindowManager
| Component | Section | 32-bit | 64-bit | Claimant | Source | Repo summary |
|---|---|---|---|---|---|---|
| WindowManager | ROM modules | not built in repo, not tested in repo |

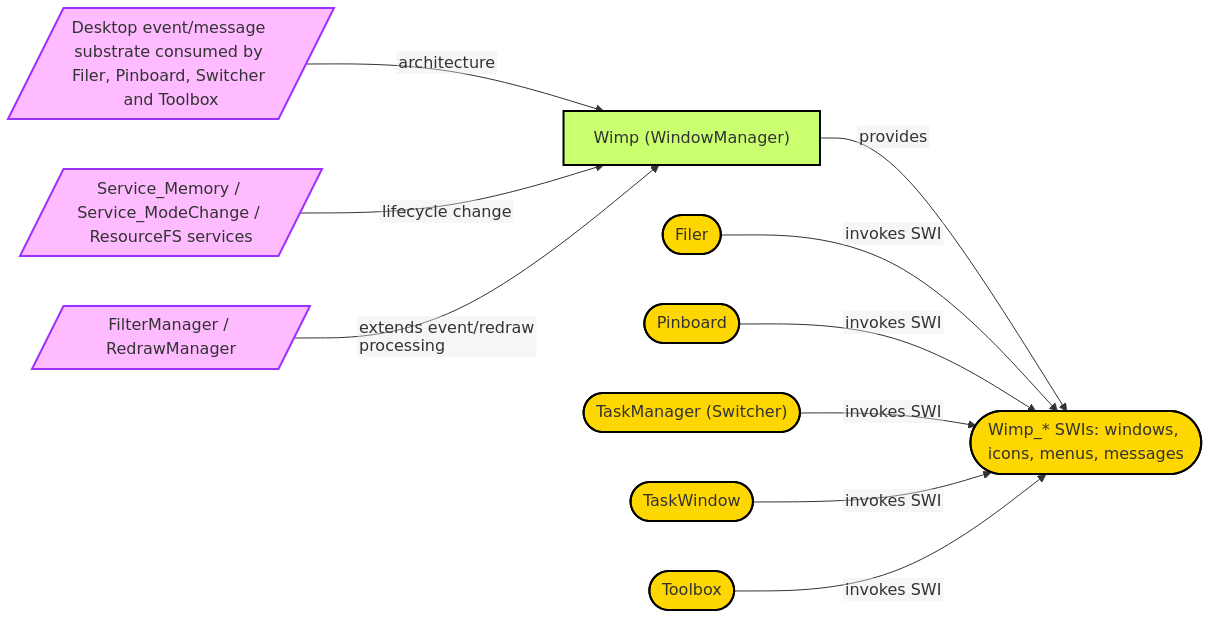

Wimp is the Window Manager Protocol implementation: it owns RISC OS desktop windows, icons, menus, pointer/keyboard dispatch and task-to-task Wimp messaging. It is the foundational desktop service used by Filer, Pinboard, Switcher, TaskWindow, Toolbox and almost every GUI application; it reacts to memory/mode/resource changes so those clients see a consistent desktop.
URL: PRM
- Accesses page table
- Accesses task memory
- Has application environment
- Has argument parsing
- Has background processing
- Has directory access
- Has file access
- Has nvram state
- Has pointer control
- Has services
- Has services fast
- Has swis
- Is desktop application
- Sets variables
- Uses clipboard
- Uses console input
- Uses console output
- Uses dynamic area
- Uses graphics output
- Uses heap dynamic area
- Uses messagetrans
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Code variables |
| 🔲 | 🔲 | Resourcefs files |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | *Configure WimpAutoFrontDelay |
| 🔲 | 🔲 | *Configure WimpAutoFrontIconBar |
| 🔲 | 🔲 | *Configure WimpAutoMenuDelay |
| 🔲 | 🔲 | *Configure WimpAutoScrollDelay |
| 🔲 | 🔲 | *Configure WimpButtonType |
| 🔲 | 🔲 | *Configure WimpClickSubmenu |
| 🔲 | 🔲 | *Configure WimpDoubleClickDelay |
| 🔲 | 🔲 | *Configure WimpDoubleClickMove |
| 🔲 | 🔲 | *Configure WimpDragDelay |
| 🔲 | 🔲 | *Configure WimpDragMove |
| 🔲 | 🔲 | *Configure WimpFlags |
| 🔲 | 🔲 | *Configure WimpFont |
| 🔲 | 🔲 | *Configure WimpIconBarAcceleration |
| 🔲 | 🔲 | *Configure WimpIconBarSpeed |
| 🔲 | 🔲 | *Configure WimpIconiseButton |
| 🔲 | 🔲 | *Configure WimpMenuDragDelay |
| 🔲 | 🔲 | *Configure WimpSpritePrecedence |
| 🔲 | 🔲 | *IconSprites |
| 🔲 | 🔲 | *Pointer |
| 🔲 | 🔲 | *ToolSprites |
| 🔲 | 🔲 | *WimpKillSprite |
| 🔲 | 🔲 | *WimpMode |
| 🔲 | 🔲 | *WimpPalette |
| 🔲 | 🔲 | *WimpSlot |
| 🔲 | 🔲 | *WimpTask |
| 🔲 | 🔲 | *WimpTextSelection |
| 🔲 | 🔲 | *WimpToolOrder |
| 🔲 | 🔲 | *WimpVisualFlags |
| 🔲 | 🔲 | *WimpWriteDir |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 |
Wimp_Initialise (&400C0) |
| 🔲 | 🔲 |
Wimp_CreateWindow (&400C1) |
| 🔲 | 🔲 |
Wimp_CreateIcon (&400C2) |
| 🔲 | 🔲 |
Wimp_DeleteWindow (&400C3) |
| 🔲 | 🔲 |
Wimp_DeleteIcon (&400C4) |
| 🔲 | 🔲 |
Wimp_OpenWindow (&400C5) |
| 🔲 | 🔲 |
Wimp_CloseWindow (&400C6) |
| 🔲 | 🔲 |
Wimp_Poll (&400C7) |
| 🔲 | 🔲 |
Wimp_RedrawWindow (&400C8) |
| 🔲 | 🔲 |
Wimp_UpdateWindow (&400C9) |
| 🔲 | 🔲 |
Wimp_GetRectangle (&400CA) |
| 🔲 | 🔲 |
Wimp_GetWindowState (&400CB) |
| 🔲 | 🔲 |
Wimp_GetWindowInfo (&400CC) |
| 🔲 | 🔲 |
Wimp_SetIconState (&400CD) |
| 🔲 | 🔲 |
Wimp_GetIconState (&400CE) |
| 🔲 | 🔲 |
Wimp_GetPointerInfo (&400CF) |
| 🔲 | 🔲 |
Wimp_DragBox (&400D0) |
| 🔲 | 🔲 |
Wimp_ForceRedraw (&400D1) |
| 🔲 | 🔲 |
Wimp_SetCaretPosition (&400D2) |
| 🔲 | 🔲 |
Wimp_GetCaretPosition (&400D3) |
| 🔲 | 🔲 |
Wimp_CreateMenu (&400D4) |
| 🔲 | 🔲 |
Wimp_DecodeMenu (&400D5) |
| 🔲 | 🔲 |
Wimp_WhichIcon (&400D6) |
| 🔲 | 🔲 |
Wimp_SetExtent (&400D7) |
| 🔲 | 🔲 |
Wimp_SetPointerShape (&400D8) |
| 🔲 | 🔲 |
Wimp_OpenTemplate (&400D9) |
| 🔲 | 🔲 |
Wimp_CloseTemplate (&400DA) |
| 🔲 | 🔲 |
Wimp_LoadTemplate (&400DB) |
| 🔲 | 🔲 |
Wimp_ProcessKey (&400DC) |
| 🔲 | 🔲 |
Wimp_CloseDown (&400DD) |
| 🔲 | 🔲 |
Wimp_StartTask (&400DE) |
| 🔲 | 🔲 |
Wimp_ReportError (&400DF) |
| 🔲 | 🔲 |
Wimp_GetWindowOutline (&400E0) |
| 🔲 | 🔲 |
Wimp_PollIdle (&400E1) |
| 🔲 | 🔲 |
Wimp_PlotIcon (&400E2) |
| 🔲 | 🔲 |
Wimp_SetMode (&400E3) |
| 🔲 | 🔲 |
Wimp_SetPalette (&400E4) |
| 🔲 | 🔲 |
Wimp_ReadPalette (&400E5) |
| 🔲 | 🔲 |
Wimp_SetColour (&400E6) |
| 🔲 | 🔲 |
Wimp_SendMessage (&400E7) |
| 🔲 | 🔲 |
Wimp_CreateSubMenu (&400E8) |
| 🔲 | 🔲 |
Wimp_SpriteOp (&400E9) |
| 🔲 | 🔲 |
Wimp_BaseOfSprites (&400EA) |
| 🔲 | 🔲 |
Wimp_BlockCopy (&400EB) |
| 🔲 | 🔲 |
Wimp_SlotSize (&400EC) |
| 🔲 | 🔲 |
Wimp_ReadPixTrans (&400ED) |
| 🔲 | 🔲 |
Wimp_ClaimFreeMemory (&400EE) |
| 🔲 | 🔲 |
Wimp_CommandWindow (&400EF) |
| 🔲 | 🔲 |
Wimp_TextColour (&400F0) |
| 🔲 | 🔲 |
Wimp_TransferBlock (&400F1) |
| 🔲 | 🔲 |
Wimp_ReadSysInfo (&400F2) |
| 🔲 | 🔲 |
Wimp_SetFontColours (&400F3) |
| 🔲 | 🔲 |
Wimp_GetMenuState (&400F4) |
| 🔲 | 🔲 |
Wimp_RegisterFilter (&400F5) |
| 🔲 | 🔲 |
Wimp_AddMessages (&400F6) |
| 🔲 | 🔲 |
Wimp_RemoveMessages (&400F7) |
| 🔲 | 🔲 |
Wimp_SetColourMapping (&400F8) |
| 🔲 | 🔲 |
Wimp_TextOp (&400F9) |
| 🔲 | 🔲 |
Wimp_SetWatchdogState (&400FA) |
| 🔲 | 🔲 |
Wimp_Extend (&400FB) |
| 🔲 | 🔲 |
Wimp_ResizeIcon (&400FC) |
| 🔲 | 🔲 |
Wimp_AutoScroll (&400FD) |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Service_ModeChange |
| 🔲 | 🔲 | Service_NewApplication |
| 🔲 | 🔲 | Service_Reset |
| 🔲 | 🔲 | Service_ResourceFSDying |
| 🔲 | 🔲 | Service_ResourceFSStarted |
| 🔲 | 🔲 | Service_ResourceFSStarting |
| 🔲 | 🔲 | Service_SwitchingOutputToSprite |
| 🔲 | 🔲 | Service_ValidateAddress |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | ? |
| 🔲 | 🔲 | EventV |
| 🔲 | 🔲 | WrchV |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Event_Keyboard |
None
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Service_ErrorButtonPressed |
| 🔲 | 🔲 | Service_ErrorEnding |
| 🔲 | 🔲 | Service_ErrorStarting |
| 🔲 | 🔲 | Service_Memory |
| 🔲 | 🔲 | Service_MouseTrap |
| 🔲 | 🔲 | Service_TaskPageOut |
| 🔲 | 🔲 | Service_WimpCloseDown |
| 🔲 | 🔲 | Service_WimpPalette |
| 🔲 | 🔲 | Service_WimpRegisterFilters |
| 🔲 | 🔲 | Service_WimpReportError |
| 🔲 | 🔲 | Service_WimpSpritesMoved |
| 🔲 | 🔲 | Service_WimpToolSpritesMoved |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | ? |
None
None
ClipboardHolderColourMapColourTransFontHourglassMessageTransPDriverPortableResourceFSScreenBlankerTaskManagerTerritoryWimp
