Module_SoundChannels
| Component | Section | 32-bit | 64-bit | Claimant | Source | Repo summary |
|---|---|---|---|---|---|---|
| SoundChannels | ROM modules | not built in repo, not tested in repo |
| Functionality | Commands | SWIs | Services | Uses Services | TOTAL |
|---|---|---|---|---|---|
| 0.00% | 0.00% | 0.00% | 0.00% | 0.00% | 0.00% |

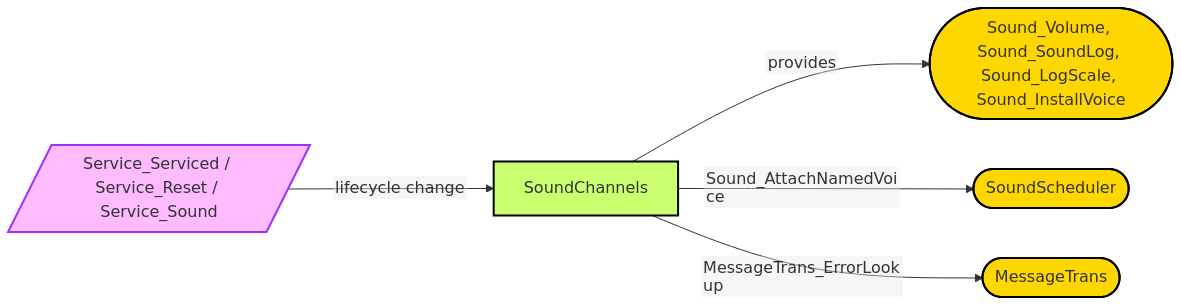

SoundChannels is the Level 1 legacy sound synthesiser and mixer. It exposes the SOUND-style control SWIs, manages channel control blocks and attached voice generators, and is called by SoundDMA to fill each 8-bit mu-law buffer. It converts foreground Sound_Control requests into channel gate/update state, provides volume and pitch control, and publishes a Service_SoundControl interception point so another module can suppress or alter a requested note.
- Has nvram state
- Has services
- Has services fast
- Has sound output
- Has swis
- Uses console output
- Uses messagetrans
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Supports registration of multiple voices |
| 🔲 | 🔲 | Supports mapping of voices to channels |
| 🔲 | 🔲 | Issues service when Sound_Control issued |
| 🔲 | 🔲 | Can enumerate installed voices |
| 🔲 | 🔲 | Can enumerate channel mappings |
| 🔲 | 🔲 | Registers with SoundDMA / SharedSound |
| 🔲 | 🔲 | Calls mapped channel voices on fill |
| 🔲 | 🔲 | Performs transformation of Log handler to Linear PCM |
| 🔲 | 🔲 | Provides lookup table for log/linear translation |
| 🔲 | 🔲 | Re-registers on SoundDMA start |
| 🔲 | 🔲 | Issues service on start and shutdown |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | *ChannelVoice |
| 🔲 | 🔲 | *Configure SoundDefault |
| 🔲 | 🔲 | *Sound |
| 🔲 | 🔲 | *Tuning |
| 🔲 | 🔲 | *Voices |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 |
Sound_Volume (&40180) |
| 🔲 | 🔲 |
Sound_SoundLog (&40181) |
| 🔲 | 🔲 |
Sound_LogScale (&40182) |
| 🔲 | 🔲 |
Sound_InstallVoice (&40183) |
| 🔲 | 🔲 |
Sound_RemoveVoice (&40184) |
| 🔲 | 🔲 |
Sound_AttachVoice (&40185) |
| 🔲 | 🔲 |
Sound_ControlPacked (&40186) |
| 🔲 | 🔲 |
Sound_Tuning (&40187) |
| 🔲 | 🔲 |
Sound_Pitch (&40188) |
| 🔲 | 🔲 |
Sound_Control (&40189) |
| 🔲 | 🔲 |
Sound_AttachNamedVoice (&4018A) |
| 🔲 | 🔲 |
Sound_ReadControlBlock (&4018B) |
| 🔲 | 🔲 |
Sound_WriteControlBlock (&4018C) |
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Service_Reset |
| 🔲 | 🔲 | Service_Sound |
None
None
None
| In 32bit | In 64 bit | Interface |
|---|---|---|
| 🔲 | 🔲 | Service_Sound |
| 🔲 | 🔲 | Service_SoundControl |
None
None
None
MessageTransSound
