Module_InetConfigure

Module: InetConfigure

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
InetConfigure	ROM modules	-				not built in repo, not tested in repo

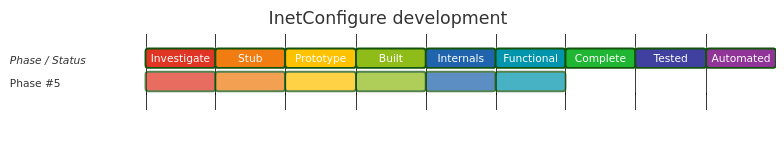

Development status

Completeness

Functionality	Commands	Services	TOTAL
50.00%	50.00%	50.00%	50.00%

Summary

InetConfigure is the configuration/UI companion for Internet networking. It watches DCI protocol and driver state and applies or presents interface configuration rather than implementing an IP stack itself.

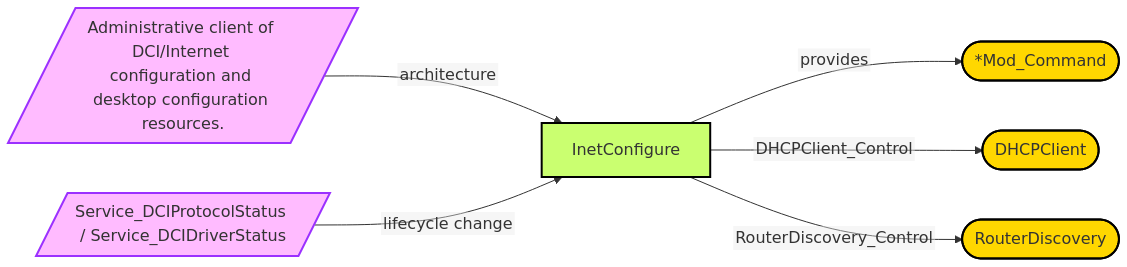

Relationships

Discovered features

• Has nvram state
• Has services
• Has services fast
• Is c
• Uses internet

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Internet configuration

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*Configure InternetIP

SWIs

None

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIDriverStatus
✅	🔲	Service_DCIProtocolStatus

Vectors

None

Events

None

UpCalls

None

---

Issues calls to

Services

None

Vectors

None

Events

None

UpCalls

None

Modules

• DHCP
• DHCPClient
• MessageTrans
• RouterDiscovery
• SharedCLibrary
• Socket
• ZeroConf
