Module_ADFS

Module: ADFS

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ADFS	ROM modules	Functional		macpato82	GitHub	not built in repo, not tested in repo

Summary

ADFS is the Acorn Disc Filing System hardware/filesystem driver. It exposes FileCore-compatible low-level disc operations for floppy and IDE/ATA hard drives, mediates controller-specific operations (including podule IDE), and is the principal physical-disc backend used by FileCore.

Documentation

URL: PRM

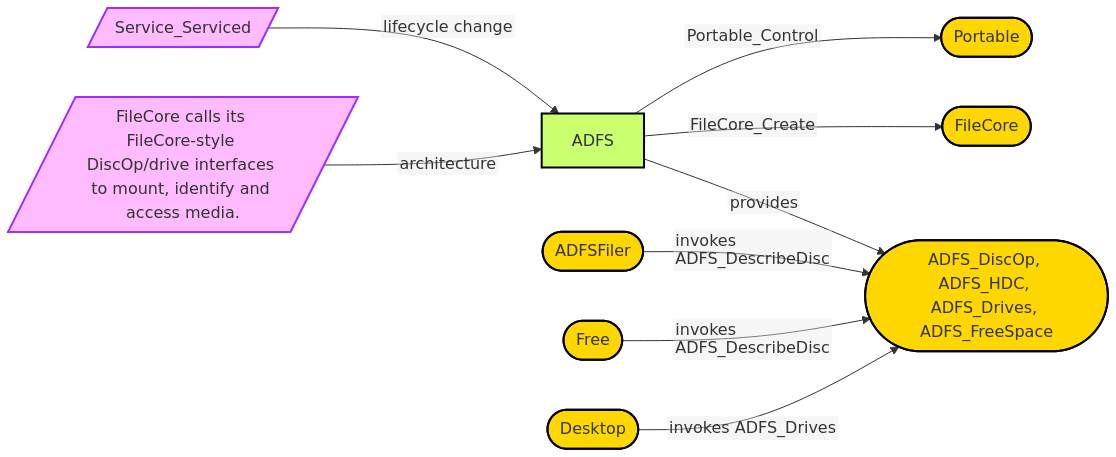

Relationships

Discovered features

• Has argument parsing
• Has background processing
• Has disc access
• Has dynamic code
• Has nvram state
• Has services
• Has services fast
• Has swis
• Is hardware specific
• Uses console output
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
🔲	🔲	Filecore filesystem
🔲	🔲	Hardware driver

Commands

In 32bit	In 64 bit	Interface
🔲	🔲	*ADFS
🔲	🔲	*Configure ADFSDirCache
🔲	🔲	*Configure ADFSbuffers
🔲	🔲	*Configure Drive
🔲	🔲	*Configure Floppies
🔲	🔲	*Configure IDEDiscs
🔲	🔲	*Configure Step
🔲	🔲	*Format

SWIs

In 32bit	In 64 bit	Interface
🔲	🔲	ADFS_DiscOp (&40240)
🔲	🔲	ADFS_HDC (&40241)
🔲	🔲	ADFS_Drives (&40242)
🔲	🔲	ADFS_FreeSpace (&40243)
🔲	🔲	ADFS_Retries (&40244)
🔲	🔲	ADFS_DescribeDisc (&40245)
🔲	🔲	ADFS_VetFormat (&40246)
🔲	🔲	ADFS_FlpProcessDCB (&40247)
🔲	🔲	ADFS_ControllerType (&40248)
🔲	🔲	ADFS_PowerControl (&40249)
🔲	🔲	ADFS_SetIDEController (&4024A)
🔲	🔲	ADFS_IDEUserOp (&4024B)
🔲	🔲	ADFS_MiscOp (&4024C)
🔲	🔲	ADFS_SectorDiscOp (&4024D)
🔲	🔲	ADFS_14 (&4024E)
🔲	🔲	ADFS_15 (&4024F)
🔲	🔲	ADFS_ECCSAndRetries (&40250)
🔲	🔲	ADFS_LockIDE (&40251)
🔲	🔲	ADFS_FreeSpace64 (&40252)
🔲	🔲	ADFS_19 (&40253)
🔲	🔲	ADFS_DiscOp64 (&40254)

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_ADFSPoduleIDEDying
🔲	🔲	Service_Portable
🔲	🔲	Service_Reset

Vectors

In 32bit	In 64 bit	Interface
🔲	🔲	IrqV
🔲	🔲	TickerV

Events

None

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
🔲	🔲	Service_ADFSPoduleIDE
🔲	🔲	Service_ClaimFIQ
🔲	🔲	Service_DisplayFormatHelp
🔲	🔲	Service_IdentifyFormat
🔲	🔲	Service_ReleaseFIQ

Vectors

None

Events

None

UpCalls

None

Modules

• ADFS
• FileCore
• MessageTrans
• Portable
