Module_ShareFS

Module: ShareFS

Status summary

Component	Section	32-bit	64-bit	Claimant	Source	Repo summary
ShareFS	ROM modules	-				not built in repo, not tested in repo

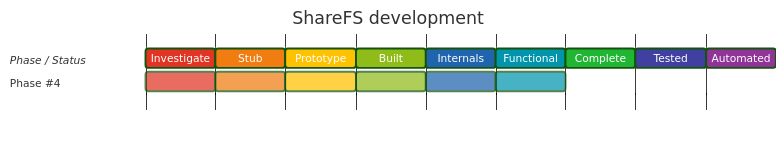

Development status

Completeness

Functionality	Commands	SWIs	Services	Vectors	Events	Uses Services	Uses Vectors	Uses UpCalls	TOTAL
50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%	50.00%

Summary

ShareFS exports selected local filesystem shares over the Freeway remote-filesystem transport and receives remote filesystem messages to create/manage accessible shares.

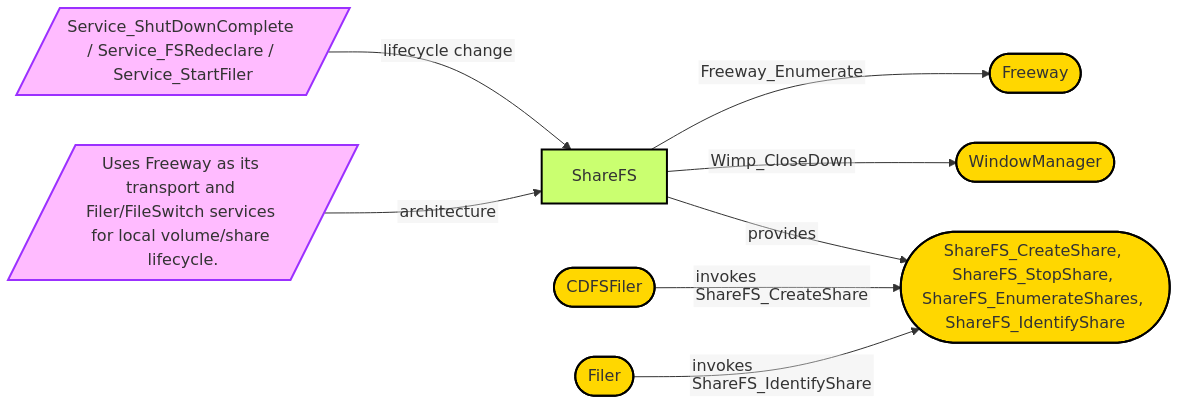

Relationships

Discovered features

• Has background processing
• Has directory access
• Has file access
• Has nvram state
• Has services
• Has services fast
• Has swis
• Is c
• Is desktop application
• Sets variables
• Uses internet
• Uses messagetrans

---

Provides

Functionality

In 32bit	In 64 bit	Interface
✅	🔲	Desktop filer icon
✅	🔲	Filesystem
✅	🔲	Freeway resources
✅	🔲	Internet service
✅	🔲	Resourcefs files

Commands

In 32bit	In 64 bit	Interface
✅	🔲	*Configure ShareBoot
✅	🔲	*Desktop_ShareFSFiler
✅	🔲	*Dismount
✅	🔲	*Free
✅	🔲	*Share
✅	🔲	*ShareFS
✅	🔲	*ShareFSCache
✅	🔲	*ShareFSCacheType
✅	🔲	*ShareFSIcon
✅	🔲	*ShareFSLogoff
✅	🔲	*ShareFSLogon
✅	🔲	*ShareFSWindow
✅	🔲	*Shares
✅	🔲	*UnShare

SWIs

In 32bit	In 64 bit	Interface
✅	🔲	ShareFS_CreateShare (&47AC0)
✅	🔲	ShareFS_StopShare (&47AC1)
✅	🔲	ShareFS_EnumerateShares (&47AC2)
✅	🔲	ShareFS_IdentifyShare (&47AC3)

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_DCIProtocolStatus
✅	🔲	Service_DiscDismounted
✅	🔲	Service_FSRedeclare
✅	🔲	Service_FilerDying
✅	🔲	Service_FreewayStarting
✅	🔲	Service_FreewayTerminating
✅	🔲	Service_InternetStatus
✅	🔲	Service_PostInit
✅	🔲	Service_ShutDownComplete
✅	🔲	Service_StartFiler
✅	🔲	Service_StartedFiler

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	EventV
✅	🔲	UpCallV

Events

In 32bit	In 64 bit	Interface
✅	🔲	Event_Internet

UpCalls

None

---

Issues calls to

Services

In 32bit	In 64 bit	Interface
✅	🔲	Service_RemoteFSExport
✅	🔲	Service_RemoteFSVolume
✅	🔲	Service_ShareDStarting
✅	🔲	Service_ShareDTerminating
✅	🔲	Service_Sharing

Vectors

In 32bit	In 64 bit	Interface
✅	🔲	?
✅	🔲	EconetV

Events

None

UpCalls

In 32bit	In 64 bit	Interface
✅	🔲	UpCall_MediaNotKnown
✅	🔲	UpCall_MediaSearchEnd
✅	🔲	UpCall_ModifyingFile

Modules

• Free
• Freeway
• Hourglass
• MessageTrans
• ResourceFS
• SharedCLibrary
• Socket
• Wimp
