fix(lifecycle): hide decorative rail during semantic interactions

[sacloudy]

Problem and value

Closes #244.

Lifecycle diagrams render a decorative primary rail behind the authored states. During Intent Trace, direct-relationship preview, and committed Semantic Passport focus, semantic nodes and edges dim but that unmarked decoration stays fully opaque. It can then read as a false direct edge across unrelated states.

This change keeps the rail in the ordinary READ view while removing that false semantic signal from all three public interaction states.

Scope

• What changed:
  • Mark only the decorative lifecycle path with data-lifecycle-rail.
  • Hide that decoration while data-intent-trace-active, data-relationship-preview-active, or data-focus-active is present.
  • Add final-HTML contract coverage plus a real-Chrome regression that exercises node hover, relationship hover, and committed focus.
  • Refresh all generated HTML, Gallery metadata, README motion proof, Architecture Delta proof, and the packaged skill.
• What deliberately did not change:
  • No JSON schema, validator, layout, authored topology, route, reachability, relationship identity, or default READ presentation changed.
  • The rail does not receive data-edge-from, data-edge-to, or any semantic relationship metadata.
• No unrelated changes: confirmed.

Stability impact

• Compatibility and migration risk: low. Existing typed JSON and public viewer APIs are unchanged; this is one renderer marker and three interaction-scoped CSS rules.
• Renderer, validator, package, or generated-artifact risk: lifecycle output gains one inert data attribute. The validator remains unchanged. Checked-in artifacts and archify.zip were regenerated and verified.
• Failure behavior and rollback path: unsupported or non-lifecycle diagrams do not emit the marker, so the selectors are no-ops. Reverting this single commit restores the previous presentation.

Tests run

ARCHIFY_CHROME='/Applications/Google Chrome.app/Contents/MacOS/Google Chrome' \
  npx -y -p node@22 -c 'node --test \
    archify/test/architecture-delta.test.mjs \
    archify/test/cli.test.mjs \
    archify/test/generated-artifact-xml.test.mjs \
    archify/test/intent-trace.test.mjs \
    archify/test/lifecycle-rail-browser.test.mjs \
    archify/test/readme-showcase.test.mjs \
    archify/test/relationship-direct-explorer.test.mjs \
    archify/test/semantic-passport.test.mjs'

Result: 86 tests passed, 0 failed, 0 skipped. The browser test uses pointer events in real Chrome and asserts the computed rail opacity in all three interaction modes.

cd archify
ARCHIFY_CHROME='/Applications/Google Chrome.app/Contents/MacOS/Google Chrome' \
  npx -y -p node@22 -c 'npm test'

Result: 1,021 tests; 1,017 passed, 0 failed, 4 environment-gated tests skipped.

node archify/bin/archify.mjs deliver lifecycle /tmp/lifecycle-rail-repro.json \
  /tmp/lifecycle-rail-repro.html --quality showcase --json
node archify/bin/archify.mjs visual-check /tmp/lifecycle-rail-repro.html \
  --json

Result: delivery passed 9/9 validation checks with 0 errors and 0 warnings; automated Chrome evidence passed with no diagnostics.

Visual evidence

Manual review passed at 1440×900 in both light and dark themes. A before/after real-Chrome capture confirmed:

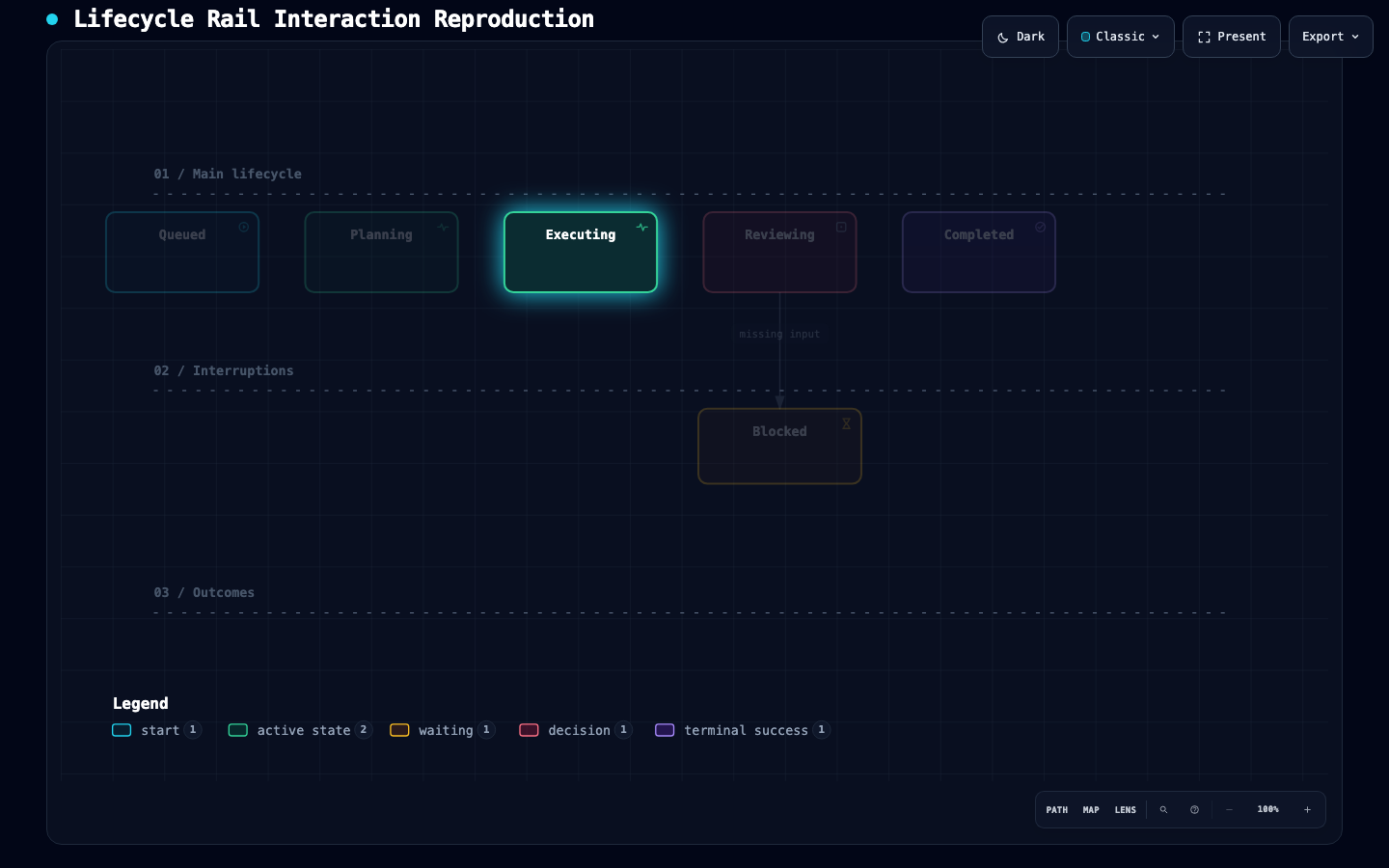

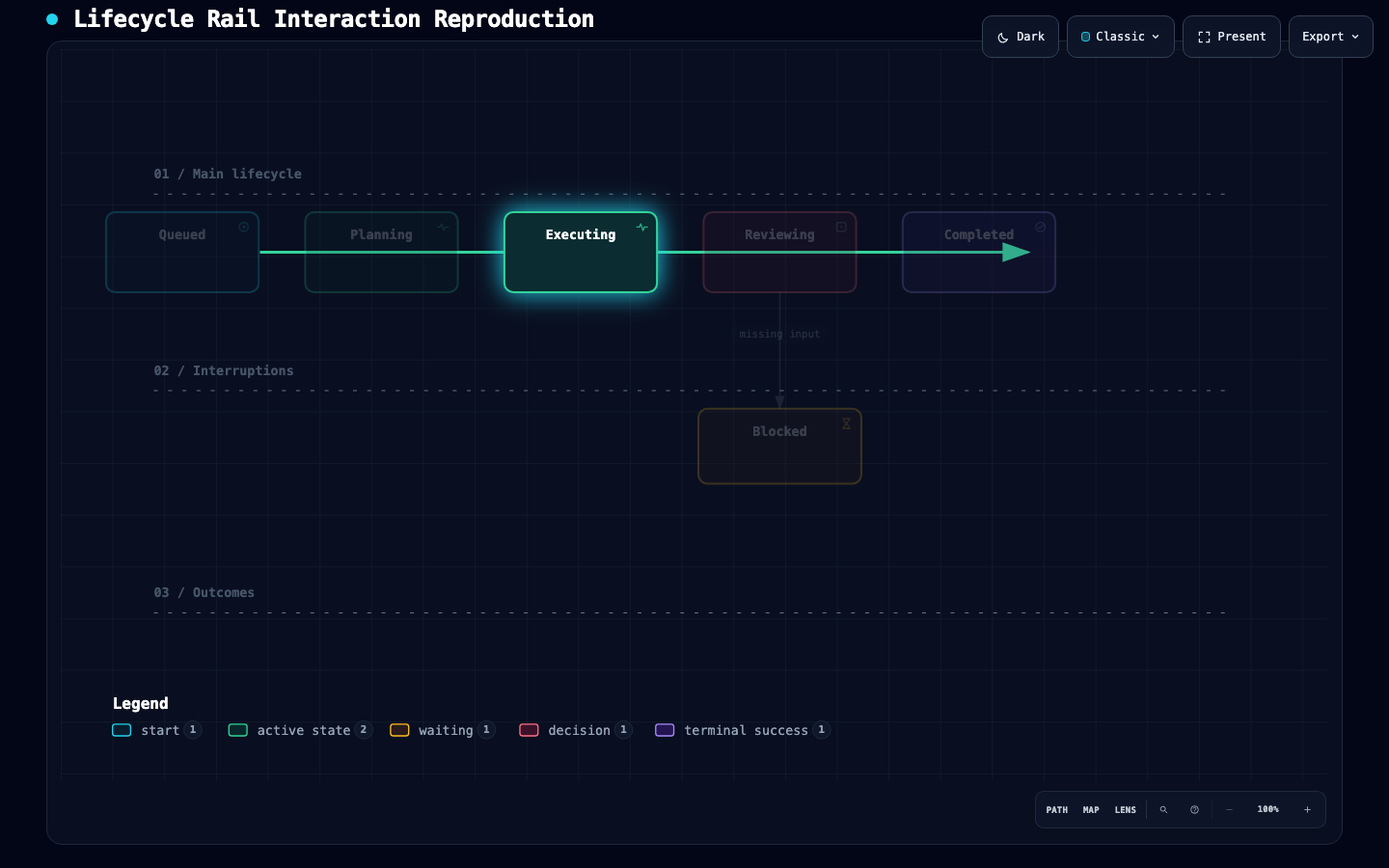

Node Intent Trace — before	Node Intent Trace — after

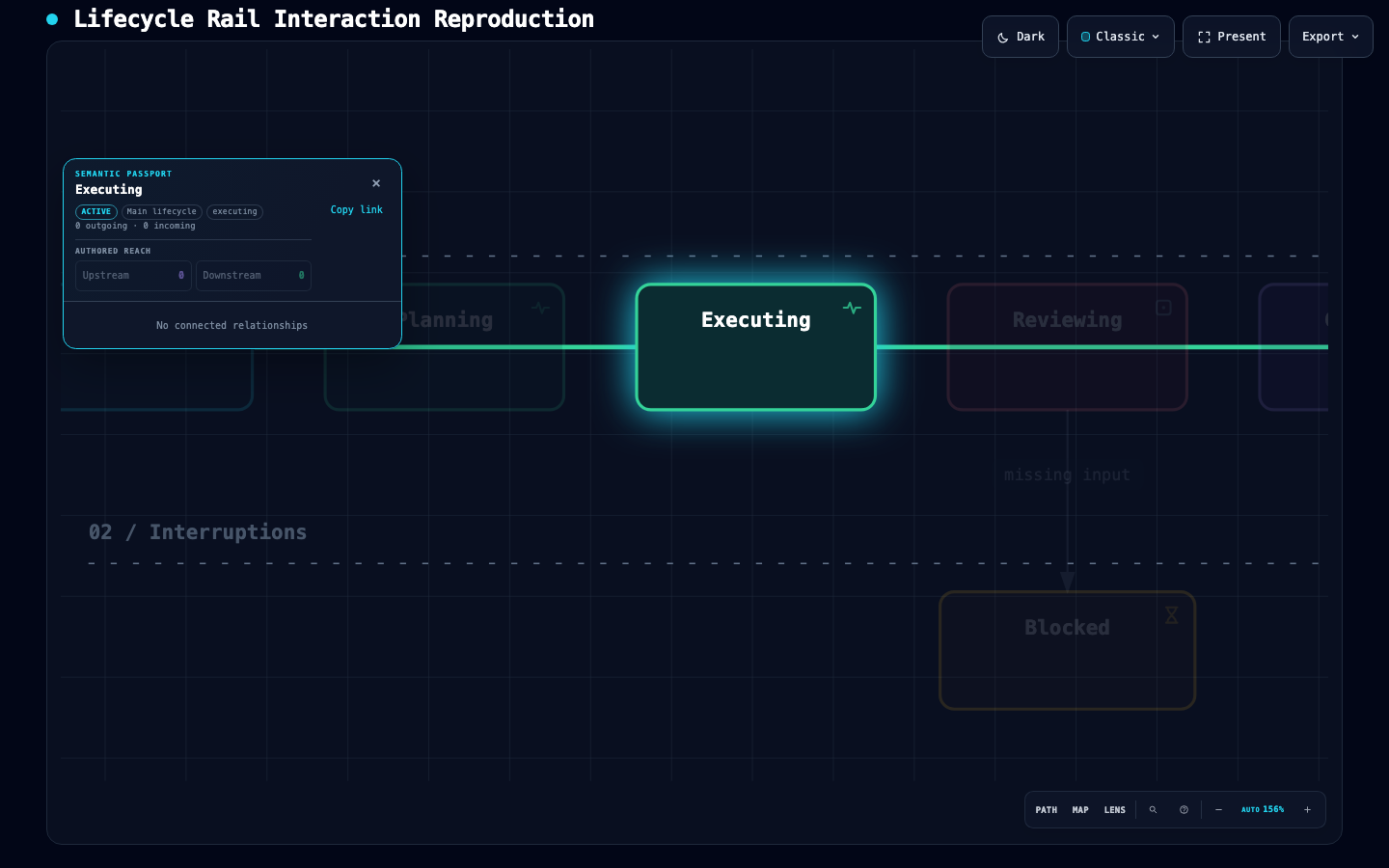

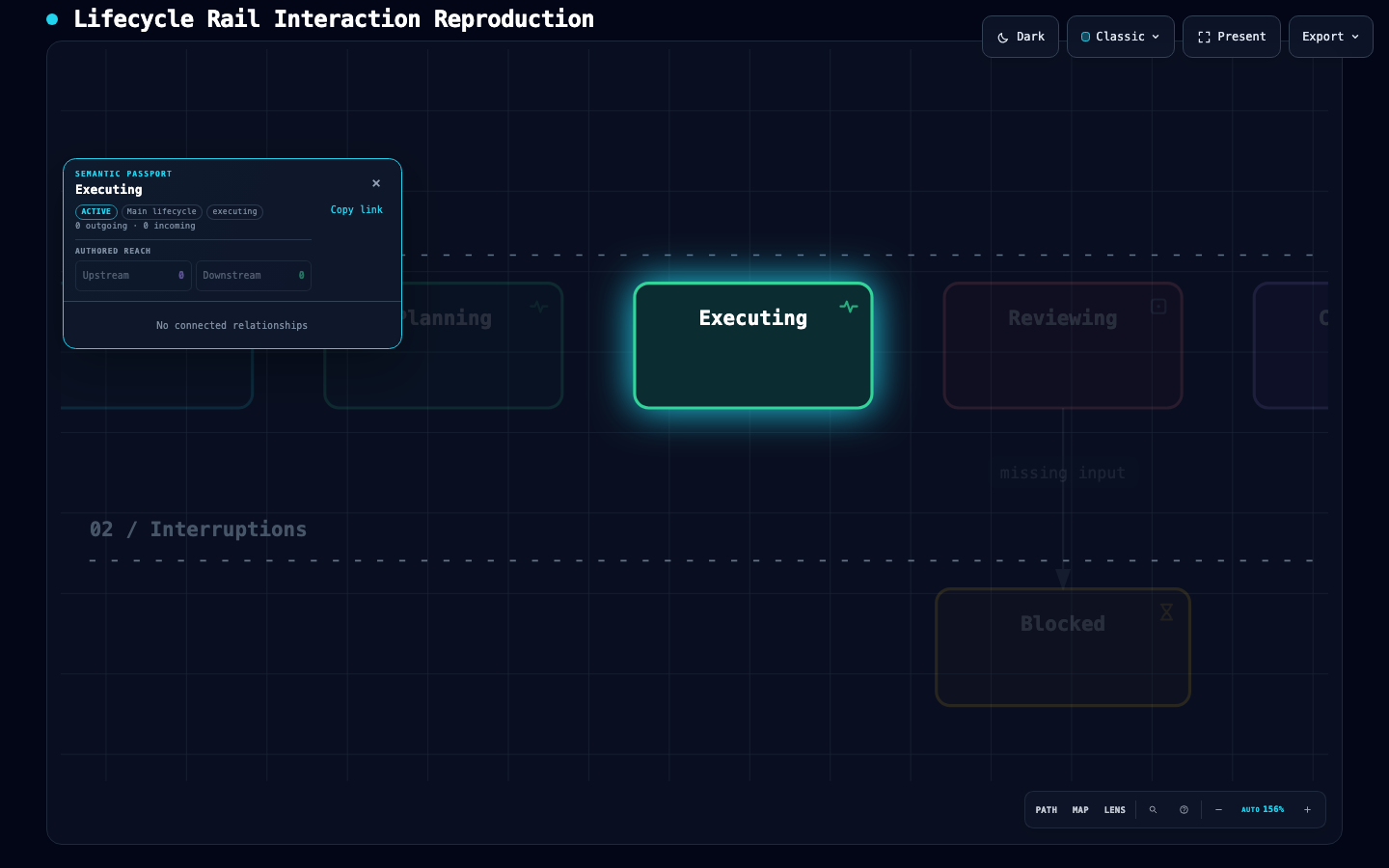

Committed focus — before	Committed focus — after

Runtime measurements match the captures: the rail had computed opacity 1 before the fix and 0 in each semantic interaction after the fix.

Normal READ remains visually unchanged: the marked rail is present and its computed opacity is not 0.

Generated artifacts

• Rebuilt root and packaged examples under examples/ and archify/examples/, including the legacy examples/web-app.html alias.
• Rebuilt docs/gallery.html, all 11 Gallery artifacts, and docs/gallery/manifest.json.
• Rebuilt examples/checkout-platform-delta.html and its receipt.
• Re-recorded docs/assets/archify-live-proof.gif and its proof JSON from the refreshed Gallery artifacts.
• Rebuilt archify.zip with Node.js 22; archive integrity and package-freshness tests pass.

Checklist

• I used a minimal focused change and preserved existing typed JSON behavior unless the issue requires a contract change.
• I ran the relevant targeted tests and npm test in archify/.
• I added or updated a regression test for behavioral changes.
• I checked generated artifacts and package freshness when their sources changed.
• I removed secrets, private repository content, and customer data from fixtures and screenshots.
