Sixfab Raspberry Pi NBIoT Shield

It is repository of python library for Sixfab Raspberry Pi NB-IoT Shield.

Library Installation

Manual Installation

git clone https://github.com/sixfab/Sixfab_RPi_NBIoT_Library.git
cd Sixfab_RPi_NBIoT_Library
sudo python3 setup.py install

Install with pip3

Use pip3 to install from PyPI.

sudo pip3 install sixfab-nbiot

Test

Enable serial_hw and I2C interfaces by following instructions below:

1. Run sudo raspi-config
2. Select 5 Interfacing Options
3. Enable P5 I2C
4. For P6 Serial
   • Disable Login shell to be accessible over serial
   • Enable Serial port hardware
5. Finish
6. Reboot
7. It's done.

cd sample
python3 sensor_test.py  #for testing sensor_test example

Examples

** basicUDP
** sensorTest

Tutorials will be here (very soon)

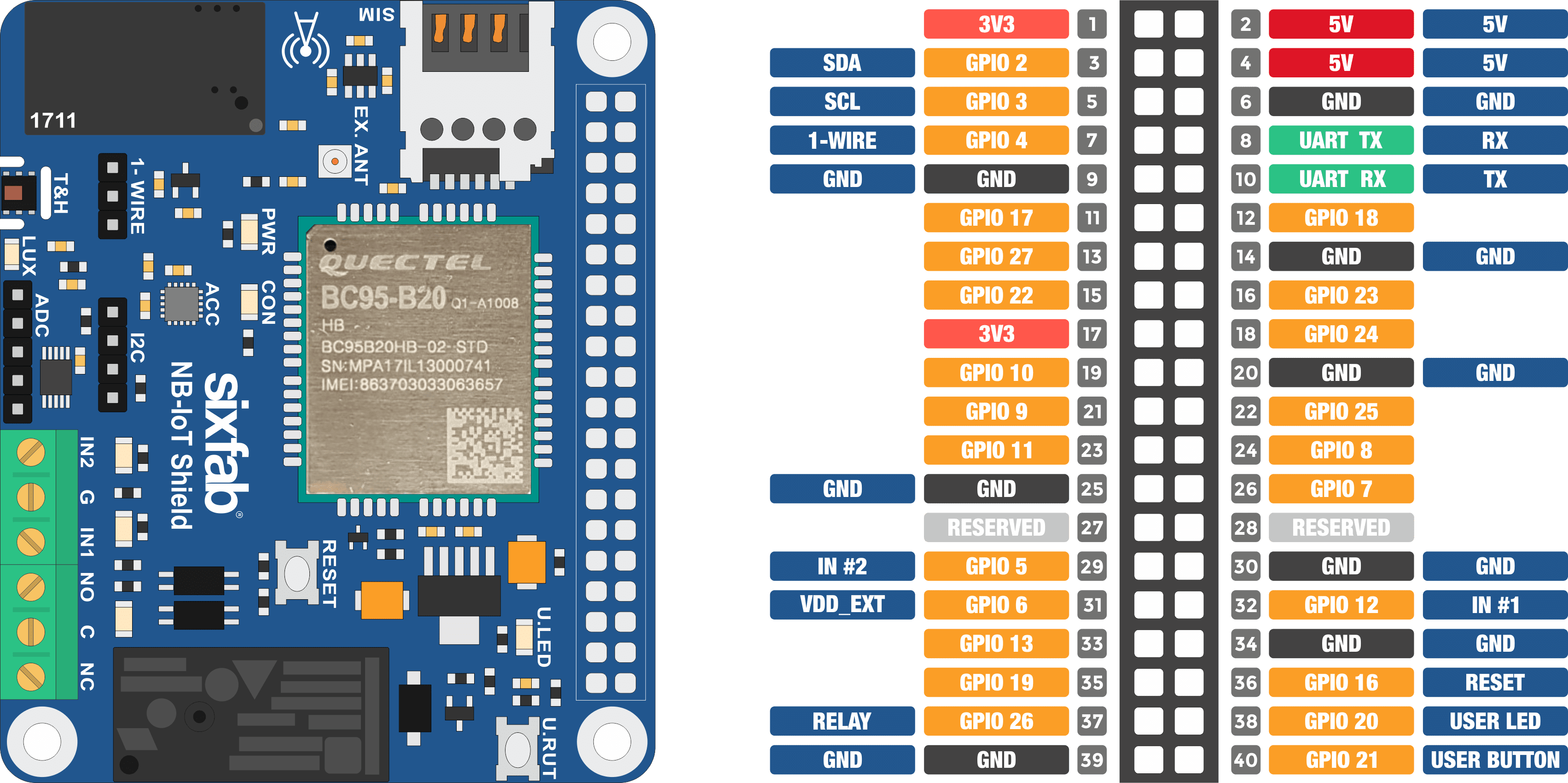

Pinout

Attention

! All data pins work with 3.3V reference. Any other voltage level should harm your hat or RPI.

Layout
