Extend support for more kinds of barriers, including node and ways, and blocking pedestrians / bicycles in addition to motor vehicles

[miklcct]

Summary

Improve support for more kinds of barriers, including point barriers and linear barriers, which can block travel for multiple modes of traversal.

In implementation terms, it does the following:

• Barrier node detection is improved to handle more kinds of barriers and traversal modes
• If a way crosses a linear barrier, the vertices are split with an edge added to cross the barrier only for allowable traversal modes. If the node is tagged with barrier=entrance, the restrictions for the barrier is ignored. Note that if two linear barriers join end to end, it is possible to cross between them at the joining node, unless the node itself blocks access. Update 2025-08-06: After checking some real-world mapping, I have decided to disallow passing through the end of a barrier as well, like the photo shown below but with two areas.
• Areas are not joined if they share the same barrier which blocks traversal for some street modes for the area (sharing at least two nodes of the barrier), so that a linear barrier can block area routing between two areas and force the user to go via the end. Also, areas are only joined if they share at least two consecutive nodes (when two areas join at one node, it is possible for a wall to block access between them).

What this PR does not do

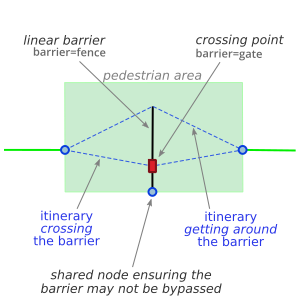

Note that barrier blocking access within a single area (whether the barrier effectively splits the area into two or not), like the following picture is not implemented.

Issue

Closes #6689

The following screenshots show the fixed routing to avoid walking into a wall inside a train station:

original:

fixed:

Unit tests

Added for area splitting, vertex handling and barrier permission detection including wheelchair accessibility.

Documentation

Changelog

Bumping the serialization version id

Definitely required. A new kind of vertex is added to prevent duplicate labels for split vertices.

[codecov]

Codecov Report

❌ Patch coverage is 94.53376% with 17 lines in your changes missing coverage. Please review.
✅ Project coverage is 72.08%. Comparing base (b5f5faf) to head (7ba8b42).
⚠️ Report is 139 commits behind head on dev-2.x.

Files with missing lines	Patch %	Lines
...r/graph_builder/module/osm/BarrierEdgeBuilder.java	88.63%	1 Missing and 4 partials ⚠️
...nner/graph_builder/module/osm/VertexGenerator.java	93.54%	2 Missing and 2 partials ⚠️
...aph_builder/issues/BarrierIntersectingHighway.java	50.00%	2 Missing ⚠️
..._builder/issues/DifferentLevelsSharingBarrier.java	50.00%	2 Missing ⚠️
...pplanner/graph_builder/module/osm/OsmNodePair.java	81.81%	0 Missing and 2 partials ⚠️
...planner/graph_builder/module/osm/OsmAreaGroup.java	98.21%	0 Missing and 1 partial ⚠️
...ripplanner/graph_builder/module/osm/OsmModule.java	97.05%	0 Missing and 1 partial ⚠️

Additional details and impacted files

@@              Coverage Diff              @@
##             dev-2.x    #6774      +/-   ##
=============================================
+ Coverage      71.96%   72.08%   +0.12%
- Complexity     19423    19517      +94
=============================================
  Files           2099     2105       +6
  Lines          78756    78966     +210
  Branches        7970     8003      +33
=============================================
+ Hits           56680    56926     +246
+ Misses         19257    19225      -32
+ Partials        2819     2815       -4

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:

• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[miklcct]

Add comment on barrier after OSM ground survey

[vesameskanen]

The logic is somewhat complex and it is a bit hard to understand what kind of effects this PR has, although there is a very nice test set. It may be that areas surrounded by barriers get some sort of redundant edge set, which does not lead anywhere, at every boundary vertex. The screenshots below indicate that there are regressions in area processing. Maybe the code should more carefully process only vertices between two areas.

Location: https://hsl-debug.digitransit.fi/?variables=%257B%2522from%2522%253A%257B%257D%252C%2522to%2522%253A%257B%257D%252C%2522dateTime%2522%253A%25222025-08-12T12%253A06%253A49.257Z%2522%257D#17.27/60.16861/24.959832

[vesameskanen]

This change has side effects, which are hard to predict. Vertex is no longer added to intersectionNodes map, which is later used in area processing.

[miklcct]

This is intended. intersectionNodes track nodes which are used in multiple OSM ways, however, if a node is on a barrier, a separate node is created for each way so it is not used in multiple OSM ways.

The reasoning is the same as splitting nodes on areas on multiple levels into different vertices.

[vesameskanen]

I am a bit concerned how WalkableAreaBuilder selects OSM way entities in vertex generation. Sometimes way is picked randomly, sometimes parent area is used. I suspect that this occasionally creates duplicated vertices and somewhat strange edge connections.

In the past, intersection vertex map eliminated duplicates in a simple way.

[vesameskanen]

I added some logging and found out that BarrierEdgeBuilder tries to connect distant sections of area groups, not just the two at opposite side of a barrier.

I believe use of this entity reference is the reason:

OpenTripPlanner/application/src/main/java/org/opentripplanner/graph_builder/module/osm/WalkableAreaBuilder.java

Line 191 in ec60f14

OsmEntity areaEntity = group.getSomeOsmObject();

The code should consistently use parent entity of the currently processed area, not a random pick from the area group.

[vesameskanen]

@miklcct I fixed this problem in #6826

[miklcct]

I have found the regression. The intention of isNodeBelongsToWay is to check if a node belongs to a routable way, but now it also includes nodes on barrier way as a result.

[vesameskanen]

Graph build works now much better. Barriers no longer remove important bridges in Helsinki.

[vesameskanen]

I am a bit concerned how WalkableAreaBuilder selects OSM way entities in vertex generation. Sometimes way is picked randomly, sometimes parent area is used. I suspect that this occasionally creates duplicated vertices and somewhat strange edge connections.

In the past, intersection vertex map eliminated duplicates in a simple way.

[vesameskanen]

One more discovery: you should consider no through traversal limitations when adding connections through a barrier, the same way as here:

https://github.com/HSLdevcom/OpenTripPlanner/blob/fix-area-edge-props/application/src/main/java/org/opentripplanner/routing/linking/VertexLinker.java#L744

If areas (or a way connecting to an area) have private access and the connecting edges are not marked as no through, traversal is not possible - the edges are added for no reason.

[vesameskanen]

I am quite happy with the functionality now, especially when #6826 is included as well.

We are still considering if the two new issues are useful in their current form, or should the logic examine the data more carefully. For example, highways crossing a barrier tagged as barrier=retaining wall at a bridge structure seem to be very common. An example: https://www.openstreetmap.org/node/444209183

[vesameskanen]

After the fix presented in #6826, degree check seems unnecessary. I tested that this condition was always true when building helsinki area street graph.

[miklcct]

I think this check is still needed to prevent unnecessary edges being built when a one-way street joins an area at a gate through a wall. The end vertex of the one-way street will only have incoming edge but not outgoing edge, so this block will skip it when attempting to join from the vertex on the area to the vertex at the end of a one-way street which doesn't have outgoing edges.

[miklcct]

I just found out that I made a mistake in a previous PR, which was surprising untested. The method had a test case but it didn't contain this specific case.

https://github.com/opentripplanner/OpenTripPlanner/pull/6764/files#diff-91193fccae4c9a19c4e80aafdc3c8ec8ac4de356c86e42331c6728f85459b2a6R786

I forgot to add a return false; statement after checking all access was denied.

I have just corrected it and added a test for it.

[vesameskanen]

I added a couple of minor request. We are close getting this merged.

[optionsome]

@miklcct you can merge this if you think this is ready
