Cocos Creator Reactive

This repo will provide reactive features for Cocos Creator projects. By using this lib you can bind data to the CC component in an easy way.

Main features

• Easy to use in any project
• Will remove lots of boilerplate codes
• Supporting 2-way bindings
• Supporting in editor loops
• Nested Object Binding is supported
• Label, RichText, EditBox, Slider, Toggle and ProgressBar are supported
• Formatting text is supported for Label and RichText
• Using ES6 Proxy features
• The code has been written as simple as possible

Limitations

• Arrays are stateless
• A few memory management is required

Instruction

To utilize reactivity in your projects, you just need to copy/paste the Core folder into your projects.

Core Files

• ReactiveDecorator.Code.ts provides @Reactive() decorator for reactive properties.

• Reactivity.Code.ts is the heart of reactivity, a place where all procedures related to reactivity are happening.

• SchemeBase.Code.ts all classes which you need to be reactive must extend this class.

• SchemeBinderComponent.Code.ts This component must be added to the nodes which need to present data and binding.

Scheme Classes

All classes that have the reactivity features are called Scheme, to make a class Scheme you must extend SchemeBase.Code.ts. Scheme Classes are responsible for binding data to view, like what ViewModel in the MVVM design pattern. To use Schemes you need to follow the instructions correctly.

Let's check the simplest example!

1. Define a scheme class

import { makeReactive } from "../Core/Reactivity.Code";
import { SchemeBase } from "../Core/SchemeBase.Code";
class MySimplestScheme extends SchemeBase{
	@Reactive('name')
	name: string = "Mahdi";

	constructor(schemeName:string){
		super(schemeName);
	}

	override MakeReactive(): any {
		return makeReactive(this,this.__SchemeName);
	}
}

MySimplestScheme now is ready to use!

2. Initiate and use MySimplestScheme in a component

import { SchemeBase } from './Core/SchemeBase.Code';
import { MySimplestScheme } from './MySimplestScheme';

@ccclass('BindTestComponentCode')
export class BindTestComponentCode extends Component {
	_mySimplestScheme:MySimplestScheme;

	protected onLoad(): void {
		this._mySimplestScheme = new MySimplestScheme("myFirstScheme").MakeReactive();
	}

	onButtonClick(){
		this._mySimplestScheme.name = "David";
		//The following code is same as top code
		//SchemeBase.update(this._mySimplestScheme,{name:"David"});
	}
}

3. Bind scheme to a Label component in the CC editor

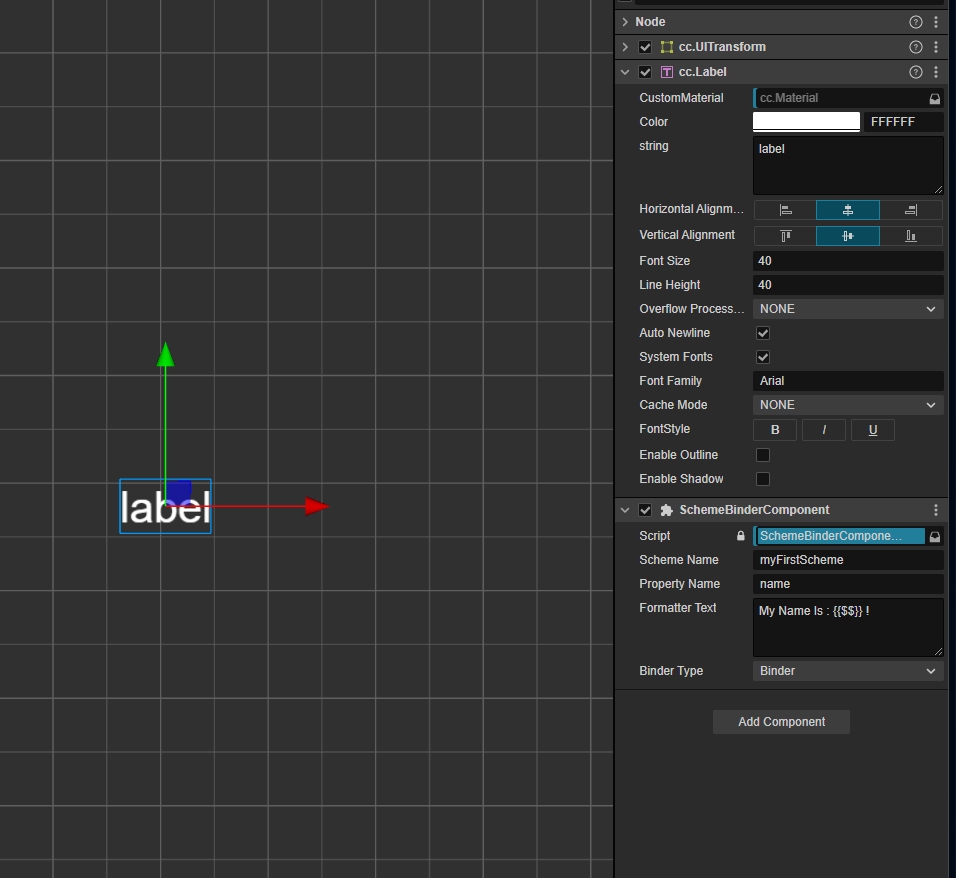

It is so simple, add SchemeBinderComponent.Code.ts to a label component like the following image

That is it!!

Now anywhere in your entire project when _mySimplestScheme.name changes, the text of Lable will change!

Advanced Usages

You can check the full features by running this project!

Important Notes

• If you use $ at the beginning the name of SchemeName which in our Simplest example was myFirstScheme will make the scheme permanent and you CANN'T destroy it when your app is running!

• {{$$}} use this in formatter section of SchemeBinderComponent to place the value of the property.

• Your score is <color=#ff0000>{{($$).toFixed(3)}}</color> ! this is an advanced sample of formatting

• Using nested objects is a little tricky, check the sample

• The sample is working properly and all features are implemented, however, I didn't have enough time to make better UI/UX for it!
