Cairo Play: Version 3.130;gftools[0.9.24.dev9+gaf4c611] added

[RosaWagner]

ad4f001: [gftools-packager] Cairo Play: Version 3.130;gftools[0.9.24.dev9+gaf4c611] added

• Cairo Play Version 3.130;gftools[0.9.24.dev9+gaf4c611] taken from the upstream repo https://github.com/Gue3bara/Cairo at commit Gue3bara/Cairo@617ed31.

[github-actions]

Fontbakery report

Fontbakery version: 0.8.10

[1] Family checks

ℹ INFO: Check axis ordering on the STAT table. (com.google.fonts/check/STAT/axis_order)

• ℹ INFO From a total of 1 font files, 0 of them (0.00%) lack a STAT table.

  And these are the most common STAT axis orderings:
  ('slnt-wght', 1) [code: summary]

[19] CairoPlay[slnt,wght].ttf

🔥 FAIL: Check METADATA.pb parse correctly. (com.google.fonts/check/metadata/parses)

• 🔥 FAIL Family metadata at ofl/cairoplay failed to parse.
  TRACEBACK:
  34:1 : Message type "google.fonts_public.FamilyProto" has no field named "primary_script". [code: parsing-error]

🔥 FAIL: Check Google Fonts glyph coverage. (com.google.fonts/check/glyph_coverage)

• 🔥 FAIL Missing required codepoints:

  • 0x0308 (COMBINING DIAERESIS)

  • 0x0300 (COMBINING GRAVE ACCENT)

  • 0x0301 (COMBINING ACUTE ACCENT)

  • 0x030B (COMBINING DOUBLE ACUTE ACCENT)

  • 0x0304 (COMBINING MACRON)

  • 0x0132 (LATIN CAPITAL LIGATURE IJ)

  • 0x1E9E (LATIN CAPITAL LETTER SHARP S)

  • 0x0133 (LATIN SMALL LIGATURE IJ)

  • 0x0307 (COMBINING DOT ABOVE)

  • 0x0302 (COMBINING CIRCUMFLEX ACCENT)

  • And 7 more.

Use -F or --full-lists to disable shortening of long lists. [code: missing-codepoints]

🔥 FAIL: Check variable font instances (com.google.fonts/check/fvar_instances)

• 🔥 FAIL fvar instances are incorrect:

• Add missing instances

Name	current	expected
ExtraLight Italic	N/A	wght=200.0, slnt=-11.0
ExtraLight	wght=200.0, slnt=0.0	wght=200.0, slnt=0.0
Light Italic	N/A	wght=300.0, slnt=-11.0
Light	wght=300.0, slnt=0.0	wght=300.0, slnt=0.0
Italic	N/A	wght=400.0, slnt=-11.0
Regular	wght=400.0, slnt=0.0	wght=400.0, slnt=0.0
Medium Italic	N/A	wght=500.0, slnt=-11.0
Medium	wght=500.0, slnt=0.0	wght=500.0, slnt=0.0
SemiBold Italic	N/A	wght=600.0, slnt=-11.0
SemiBold	wght=600.0, slnt=0.0	wght=600.0, slnt=0.0
Bold Italic	N/A	wght=700.0, slnt=-11.0
Bold	wght=700.0, slnt=0.0	wght=700.0, slnt=0.0
ExtraBold Italic	N/A	wght=800.0, slnt=-11.0
ExtraBold	wght=800.0, slnt=0.0	wght=800.0, slnt=0.0
Black Italic	N/A	wght=900.0, slnt=-11.0
Black	wght=900.0, slnt=0.0	wght=900.0, slnt=0.0

⚠ WARN: Check copyright namerecords match license file. (com.google.fonts/check/name/license)

• ⚠ WARN Please consider using HTTPS URLs at name table entry [plat=3, enc=1, name=13] [code: http-in-description]
• ⚠ WARN For now we're still accepting http URLs, but you should consider using https instead.
  [code: http]

⚠ WARN: License URL matches License text on name table? (com.google.fonts/check/name/license_url)

• ⚠ WARN Please consider using HTTPS URLs at name table entry [plat=3, enc=1, name=13] [code: http-in-description]
• ⚠ WARN Please consider using HTTPS URLs at name table entry [plat=3, enc=1, name=13] [code: http-in-description]
• ⚠ WARN Please consider using HTTPS URLs at name table entry [plat=3, enc=1, name=13] [code: http-in-description]
• ⚠ WARN Please consider using HTTPS URLs at name table entry [plat=3, enc=1, name=14] [code: http-in-license-info]
• ⚠ WARN For now we're still accepting http URLs, but you should consider using https instead.
  [code: http]

⚠ WARN: A static fonts directory with at least two fonts must accompany variable fonts (com.google.fonts/check/repo/vf_has_static_fonts)

• ⚠ WARN Please consider adding a subdirectory called "static/" and including in it static font files. [code: missing]

⚠ WARN: Ensure fonts have ScriptLangTags declared on the 'meta' table. (com.google.fonts/check/meta/script_lang_tags)

• ⚠ WARN This font file does not have a 'meta' table. [code: lacks-meta-table]

⚠ WARN: Glyph names are all valid? (com.google.fonts/check/valid_glyphnames)

• ⚠ WARN The following glyph names may be too long for some legacy systems which may expect a maximum 31-char length limit:
  alefMaksura_alefMaksuraar.fina.alt, yehHamzaabove_yehHamzaabovear.fina, alefMaksura_noonar.fina.alt.color0, alefMaksura_noonar.fina.alt.color1, noon_yehHamzaabovear.fina.color0, noon_yehHamzaabovear.fina.color1, noon_yehHamzaabovear.fina.color2, seen_yehHamzaabovear.fina.color0, seen_yehHamzaabovear.fina.color1, sheen_yehHamzaabovear.fina.color0 and 13 more.

Use -F or --full-lists to disable shortening of long lists. [code: legacy-long-names]

⚠ WARN: Check font contains no unreachable glyphs (com.google.fonts/check/unreachable_glyphs)

• ⚠ WARN The following glyphs could not be reached by codepoint or substitution rules:

  • at.cap

  • braceleft.cap

  • braceright.cap

  • bracketleft.cap

  • bracketright.cap

  • connection_r

  • dotcenterar

  • eight.pnum

  • emdash.cap

  • endash.cap

  • And 20 more.

Use -F or --full-lists to disable shortening of long lists.
[code: unreachable-glyphs]

⚠ WARN: Ensure dotted circle glyph is present and can attach marks. (com.google.fonts/check/dotted_circle)

• ⚠ WARN No dotted circle glyph present [code: missing-dotted-circle]

⚠ WARN: Check GDEF mark glyph class doesn't have characters that are not marks. (com.google.fonts/check/gdef_non_mark_chars)

• ⚠ WARN The following non-mark characters should not be in the GDEF mark glyph class:
  U+FBB2, U+FBB3, U+FBB4, U+FBB5, U+FBB6, U+FBB7, U+FBB8, U+FBB9, U+FBBD and U+FBBE [code: non-mark-chars]

ℹ INFO: Does DESCRIPTION file contain a upstream Git repo URL? (com.google.fonts/check/description/git_url)

• ℹ INFO Found a git repo URL: https://github.com/Gue3bara/Cairo [code: url-found]

ℹ INFO: Show hinting filesize impact. (com.google.fonts/check/hinting_impact)

• ℹ INFO Hinting filesize impact:

	ofl/cairoplay/CairoPlay[slnt,wght].ttf
Dehinted Size	598.7kb
Hinted Size	598.7kb
Increase	24 bytes
Change	0.0 %
[code: size-impact]

ℹ INFO: Font has old ttfautohint applied? (com.google.fonts/check/old_ttfautohint)

• ℹ INFO Could not detect which version of ttfautohint was used in this font. It is typically specified as a comment in the font version entries of the 'name' table. Such font version strings are currently: ['Version 3.130;gftools[0.9.24.dev9+gaf4c611]'] [code: version-not-detected]

ℹ INFO: EPAR table present in font? (com.google.fonts/check/epar)

• ℹ INFO EPAR table not present in font. To learn more see When missing EPAR table, just emit INFO alert fonttools/fontbakery#818 [code: lacks-EPAR]

ℹ INFO: Is the Grid-fitting and Scan-conversion Procedure ('gasp') table set to optimize rendering? (com.google.fonts/check/gasp)

• ℹ INFO These are the ppm ranges declared on the gasp table:

PPM <= 65535:
flag = 0x0F
- Use grid-fitting
- Use grayscale rendering
- Use gridfitting with ClearType symmetric smoothing
- Use smoothing along multiple axes with ClearType®
[code: ranges]

ℹ INFO: Check for font-v versioning. (com.google.fonts/check/fontv)

• ℹ INFO Version string is: "Version 3.130;gftools[0.9.24.dev9+gaf4c611]"
  The version string must ideally include a git commit hash and either a "dev" or a "release" suffix such as in the example below:
  "Version 1.3; git-0d08353-release" [code: bad-format]

ℹ INFO: Font contains all required tables? (com.google.fonts/check/required_tables)

• ℹ INFO This font contains the following optional tables:

  • loca

  • prep

  • GPOS

  • GSUB

  • And gasp [code: optional-tables]

ℹ INFO: List all superfamily filepaths (com.google.fonts/check/superfamily/list)

• ℹ INFO ofl/cairoplay [code: family-path]

### Summary

💔 ERROR	🔥 FAIL	⚠ WARN	💤 SKIP	ℹ INFO	🍞 PASS	🔎 DEBUG
0	3	8	89	9	118	0
0%	1%	4%	39%	4%	52%	0%

Note: The following loglevels were omitted in this report:

• SKIP
• PASS
• DEBUG

[m4rc1e]

Before:

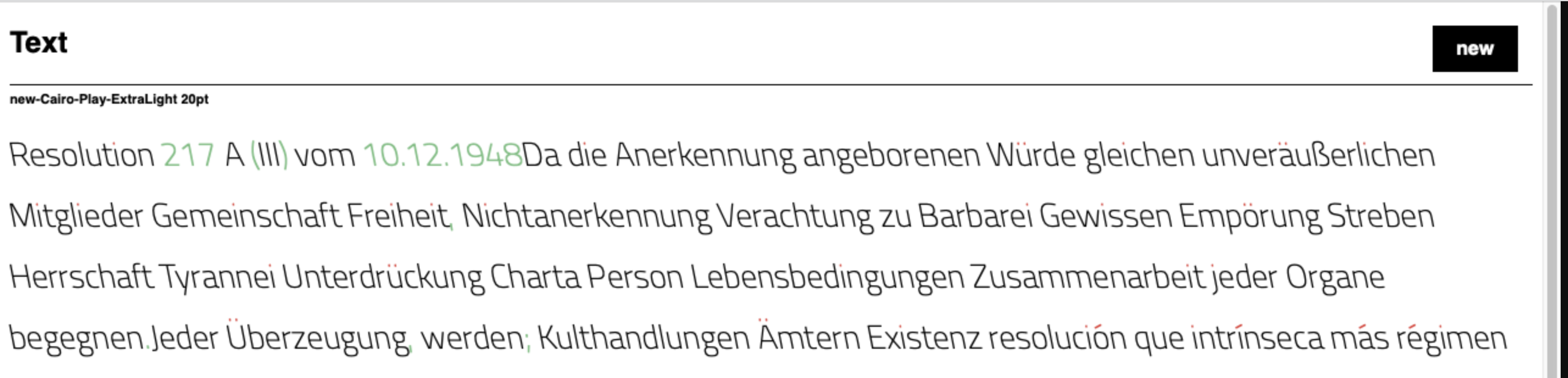

After:

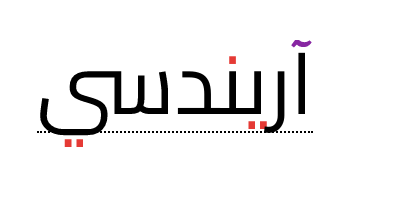

Only issue is what appears to be missing kerns on the Reh:

Since this fixes a major issue, we should merge it.

cc @yanone

[yanone]

Holding this back because Khaled may have fixed the glyphsLib issue that led to the duplicate red layer. Will check today and report back

[yanone]

I'm closing this because I manually added CairoPlay to the other PR #5924 and now I don't know how to undo it, so committing new versions over there.

[RosaWagner]

@yanone Please let's try to avoid manual addition, and let's keep PRs separated. We need the commit numbers to be in sync, and to track fonts individually once merged. Close the other one and re-do it if there is something wrong.

[yanone]

Okay he merged my PR in the meantime. I can redo both of them officially now
