metrics_calculator

This is a project that calculates code metrics on Java Source Code (.java files).

Citing MetricsCalculator

If you use MetricsCalculator in your research or project, please consider citing it. Proper citation helps acknowledge the authors' contributions and allows others to locate the tool easily. You can cite MetricsCalculator as follows:

Example Citation in LaTeX

@software{MetricsCalculator,
  author = {Dimitrios Zisis},
  title = {MetricsCalculator: A Tool for Calculating Software Metrics for Java Source Code},
  year = {2024},
  url = {https://github.com/dimizisis/metrics_calculator},
  version = {v0.0.1},
  license = {MIT},
  note = {Available at: https://github.com/dimizisis/metrics_calculator}
}

Plain Text Citation

Alternatively, you can use this plain text citation format:

Zisis, Dimitrios.
MetricsCalculator: A Tool for Calculating Software Metrics for Java Source Code (v0.0.1).
Available at: https://github.com/dimizisis/metrics_calculator. 2024.
Licensed under MIT.

Requirements

• Apache Maven project management and comprehension tool.

Build

This is a maven project. To compile the project execute the following command:
mvn package

Run

1. Instructions for use via Command Line

Open a cmd window in the directory where MetricsCalculator.jar is located and run the following command:

java -jar MetricsCalculator.jar <project_root_absolute_path> <outfilename>.csv

where project_root_absolute_path and outfilename are the full path to the root folder of the project you want to parse (ie before the src folders) and the name of the CSV file in which the metric results will be stored, respectively (see also the screenshot below).

Alternatively, instead of specifying <outfilename>.csv, you can use the keyword str to print the metrics directly to the console:

java -jar MetricsCalculator.jar <project_root_absolute_path> str

If you want the results file to be saved in a specific folder, then you also enter the complete path to that folder and then <outfilename> .csv (eg C:/Users/results.csv)

Once the process is complete, the results file should be created.

2. Instructions for use via GUI

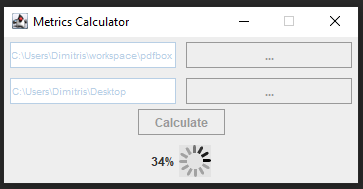

Double-clicking on MetricsCalculator.jar should bring up the following window:

where in the upper textbox should be placed (either with copy-paste, or with the Select button) the full path to the root folder of the project you want to analyze (before the src folders that is), while in the lower textbox the full path of the CSV file in which the metric results will be stored (the CSV filename is auto-generated: analysis_xxx.csv).

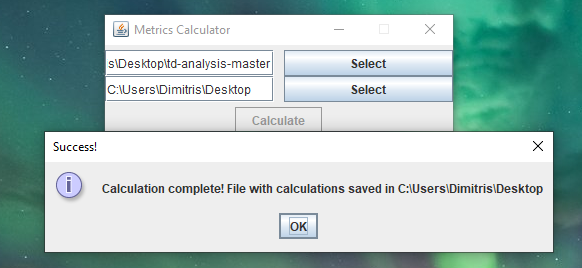

Once the process is complete, the program will output a completion message (see screenshot below) and the results file should be created in the selected folder.

Note 1: The UI function has not been completely tested yet, errors may occur.

Calculated metrics

The generated comma separated values (.csv) file contains 27 (+1 extra) metrics from four different metrics suites. The order of the extracted metrics along with the metrics suite that they belong to is presented in the following table.

Field	Metric Suite	Metric	Description
1	Chidamber & Kemerer	WMC	Weighted methods per class (Number of methods)
2	Chidamber & Kemerer	DIT	Depth of inheritance tree
3	Chidamber & Kemerer	NOCC	Number of Class Children
4	Chidamber & Kemerer	CBO	Coupling between object classes (Coupling between every user-defined class, except its inner & nested classes). Coupling: Method invocation, inheritance, exception handling, method parameters, class field access,
5	Chidamber & Kemerer	RFC	Response for class (WMC + Size of Response Set). The Response set for a class is defined by C&K as 'a set of methods that can potentially be executed in response to a message received by an object of that class
6	Chidamber & Kemerer	LCOM	Lack of cohesion in methods (LCOM1)
7	Li & Henry	WMC*	Weighted methods complexity (Avg Cyclomatic Complexity of Class (#SelectionStructures / #Methods))
8	Li & Henry	NOM	Number of methods
9	Li & Henry	MPC	Message-passing couple (Total Number of Methods Called)
10	Li & Henry	DAC	Data abstraction coupling (Number of user-defined classes as class properties)
11	Li & Henry	SIZE1	Lines of code (LOC)
12	Li & Henry	SIZE2	Number of properties
13	Bansyia	DSC	Design size in classes (Number of classes in the design)
14	Bansyia	NOH	Number of hierarchies (if NOCC > 0 && ANA == 0, NOH = 1)
15	Bansyia	ANA	Average number of ancestors
16	Bansyia	DAM	Data access metric ((#Total_Attributes - #Public_Attributes) / #Total_Attributes)
17	Bansyia	DCC	Direct class coupling (Same as CBO)
18	Bansyia	CAMC	Cohesion among methods in class (The summation of number of different types of method parameters in every method divided by a multiplication of number of different method parameter types in whole class and number of methods)
19	Bansyia	MOA	Measure of aggregation (Count of the number of class fields whose types are user-defined classes)
20	Bansyia	MFA	Measure of functional abstraction (The ratio of the number of methods inherited by a class to the total number of methods accessible by members in the class)
21	Bansyia	NOP	Number of polymorphic methods (Number of abstract methods)
22	Bansyia	CIS	Class interface size (Number of Public Methods)
23	Bansyia	NPM	Number of Public Methods (Same as CIS metric)
24	QMOOD	-	Reusability (-0.25*CBO + 0.25*CAMC + 0.5*NPM + 0.5*DSC)
25	QMOOD	-	Flexibility (+0.25*DAN - 0.25*CBO + 0.5*MOA + 0.5*NOP)
26	QMOOD	-	Understandability (-0.33*ANA + 0.33*DAM + 0.33*CAMC - 0.33*DCC - 0.33*NOP - 0.33*NOM - 0.33*DSC)
27	QMOOD	-	Functionality (0.12*CAMC + 0.22*NOP + 0.22*NPM + 0.22*DSC + 0.22*NOH)
28	QMOOD	-	Extendability (0.5*ANA - 0.5*DCC + 0.5*MFA + 0.5*NOP)
29	QMOOD	-	Effectiveness (0.2*ANA + 0.2*DAM + 0.2*MOA + 0.2*MFA + 0.2*NOP)
30	Other	FanIn	Afferent coupling (referred as Ca in the C&K metrics suite)

How to Add a New Metric

Step 1: Determine Calculator Type

Ask: Does this metric need information from multiple classes?

• Yes → Aggregate Calculator
• No → Single Calculator

Step 2: Choose the Category

Place the calculator in the appropriate package:

• cohesion/ - Metrics about how methods relate within a class
• complexity/ - Metrics about code complexity
• coupling/ - Metrics about dependencies between classes
• size/ - Metrics about class/method size
• inheritance/ - Metrics about inheritance relationships
• encapsulation/ - Metrics about data hiding
• design/ - Metrics about composition and architecture
• responsibility/ - Metrics about class responsibilities

Step 3: Implement the Calculator

For Single Metrics:

package calculator.single.impl.<category>;

import calculator.single.ClassMetricCalculator;
import context.ClassData;
import infrastructure.metrics.QualityMetrics;

/**
 * Computes the [Metric Name] ([ACRONYM]) metric.
 *
 * [Description of what the metric measures]
 *
 * Formula: [Mathematical formula if applicable]
 *
 * Returns [special values, e.g., -1 for edge cases]
 */
public class MyMetricCalculator implements ClassMetricCalculator {
    @Override
    public void compute(ClassData classData, QualityMetrics metrics) {
        // 1. Extract data from classData
        // 2. Perform calculation
        // 3. Set result: metrics.setMyMetric(value);
    }
}

For Aggregate Metrics:

package calculator.aggregate.impl.<category>;

import calculator.aggregate.AggregateMetricCalculator;
import repository.MetricsRepository;

/**
 * Computes the [Metric Name] ([ACRONYM]) metric.
 *
 * [Description - mention it's aggregate]
 *
 * Note: [Any dependencies on other metrics]
 */
public class MyMetricCalculator implements AggregateMetricCalculator {
    @Override
    public void compute(MetricsRepository repository) {
        for (String className : repository.getProjectClassNames()) {
            ClassData classData = repository.getClassData(className);
            if (classData == null) continue;

            // 1. Compute metric using repository data
            // 2. Update metrics: repository.getMetrics(className).setMyMetric(value);
        }
    }
}

Step 4: Add Tests

Create MyMetricCalculatorTest.java with minimum 3 tests:

package calculator.<single|aggregate>.impl.<category>;

import org.junit.jupiter.api.Test;
import static org.junit.jupiter.api.Assertions.*;

class MyMetricCalculatorTest {

    @Test
    void testNoData_ReturnsExpectedValue() {
        // Test edge case: empty/minimal input
    }

    @Test
    void testTypicalCase_ReturnsCorrectValue() {
        // Test normal scenario
    }

    @Test
    void testComplexCase_HandlesCorrectly() {
        // Test complex scenario
    }
}

Step 5: Register the Calculator

For Single Metrics, add to ProjectMetricsAnalyzer.buildCalculators():

private List<ClassMetricCalculator> buildCalculators() {
    return List.of(
        // ... existing calculators ...
        new MyMetricCalculator()  // Add here
    );
}

For Aggregate Metrics, add to ProjectMetricsAnalyzer.aggregateProjectMetrics():

private void aggregateProjectMetrics() {
    // ... existing code ...

    new NoccCalculator().compute(repository);
    new AnaCalculator().compute(repository);
    new MyMetricCalculator().compute(repository);  // Add here
    new NohCalculator().compute(repository);
}

⚠️ Important: If your metric depends on other metrics, ensure it runs after them!

Step 6: Add Getter/Setter to QualityMetrics

If needed, add the metric field and methods to QualityMetrics.java:

private double myMetric;

public double getMyMetric() {
    return myMetric;
}

public void setMyMetric(double myMetric) {
    this.myMetric = myMetric;
}

Step 7: Update ClassData (if needed)

If your metric needs data not currently in ClassData:

1. Option A (Recommended): Pre-compute during AST analysis

   // In ClassData.java
   private final int myPrecomputedValue;

   // In ClassVisitor.java
   int value = computeMyValue(node);
   builder.myPrecomputedValue(value);

2. Option B: Add AST nodes directly (only if necessary)

   // In ClassData.java
   private final List<SomeDeclaration> declarations;

Step 8: Run Tests

mvn test
