A fast, differentiable, JIT-free, debugging-friendly finite element library for PyTorch.
Documentation | Installation | Quickstart | Examples | Citation
TensorMesh is a finite element method (FEM) library built natively on PyTorch. It is designed to solve partial differential equations (PDEs) with the ergonomics of modern deep learning frameworks — automatic differentiation, GPU acceleration, eager execution — without sacrificing the rigour of classical FEM. Custom weak forms are written in pure Python; the library takes care of tensorized assembly, sparse linear algebra, boundary conditions, and time integration.
- GPU-native & differentiable. Built on PyTorch from the ground up. Moving an entire FEM workflow to the GPU takes a single line of code — every downstream assembly, solve, and gradient inherits the device automatically, with no separate backend or data-marshalling step. Native autograd flows seamlessly through assembly and solve, enabling end-to-end differentiable PDE pipelines.
- High-performance tensorized assembly. A fully tensorized Map-Reduce algorithm powered by TensorGalerkin, which fuses element-wise operations into monolithic GPU kernels, eliminating Python-level loops and delivering order-of-magnitude speedups over CPU-based FEM stacks.
- JIT-free & debugging-friendly. Eager execution with no compilation overhead. Dynamic meshes, adaptive refinement, and interactive workflows just work — no recompilation latency, no opaque traces.
- Comprehensive element & mesh support. Triangular, tetrahedral, pyramid, and prismatic elements with automated mesh generation for common geometries and seamless Gmsh / VTKHDF5 I/O.
- Flexible Solvers. Powered by torch-sla, our companion library for differentiable sparse linear algebra. Linear, nonlinear, and eigenvalue solvers run across multiple backends on CPU and GPU, with full autograd support, batched solves, and distributed multi-GPU scaling.
- Pythonic API. Custom weak forms in pure Python — no separate DSL, no form compiler. If you can write PyTorch, you can write FEM.
Requirements: Python ≥ 3.10, PyTorch ≥ 2.0.
pip install tensormesh-fem # CPU only
pip install "tensormesh-fem[gpu]" # + CUDA sparse solvers (CuPy + cuDSS)The base install ships only the CPU sparse stack (SciPy / native PyTorch via
torch-sla). The [gpu] extra pulls in both
CUDA backends; if you only want one, use [cupy] or [cudss] instead:
pip install "tensormesh-fem[cupy]" # CuPy CUDA backend (iterative + SuperLU)
pip install "tensormesh-fem[cudss]" # cuDSS CUDA backend (fastest GPU direct)The quotes are needed because [...] is a shell glob character.
Install from source (for development)
git clone https://github.com/camlab-ethz/TensorMesh.git
cd TensorMesh
pip install -e ".[test]"After installing, sanity-check the install:
python -m tensormesh.verify_installTo see which sparse-solver backends are usable on your machine — and a one-line install hint for any that are not — run:
import torch_sla
torch_sla.show_backends()Solve
import math
import torch
from tensormesh import ElementAssembler, NodeAssembler, Mesh, Condenser
# 1. Generate a triangular mesh of the unit square.
mesh = Mesh.gen_rectangle(chara_length=0.05)
# 2. Stiffness weak form: a(u, v) = ∫ ∇u · ∇v dΩ
class LaplaceAssembler(ElementAssembler):
def forward(self, gradu, gradv):
return gradu @ gradv
# 3. Load weak form: l(v) = ∫ f v dΩ
class SourceAssembler(NodeAssembler):
def forward(self, v, f):
return f * v
# 4. Source term, evaluated at every mesh node.
x, y = mesh.points[:, 0], mesh.points[:, 1]
f_vals = 2 * math.pi**2 * torch.sin(math.pi * x) * torch.sin(math.pi * y)
# 5. Assemble the stiffness matrix and load vector.
K = LaplaceAssembler.from_mesh(mesh)()
b = SourceAssembler.from_mesh(mesh)(point_data={"f": f_vals})
# 6. Apply Dirichlet BCs by static condensation, then solve.
condenser = Condenser(mesh.boundary_mask)
K_, b_ = condenser(K, b)
u_ = K_.solve(b_, verbose = True)
u = condenser.recover(u_)
# 7. Compare against the analytical solution.
u_exact = torch.sin(math.pi * x) * torch.sin(math.pi * y)
print(f"L2 error: {(u - u_exact).norm() / u_exact.norm():.3e}")[torch-sla] solve: n=431, nnz=2859, dtype=float64, device=cpu, symmetric=True, spd=False, backend=scipy, method=lu
L2 error: 3.135e-03
The workflow is Mesh → Assembler → SparseMatrix → Condenser → Solve.
Move everything to GPU with a single mesh = mesh.cuda(); enable
gradients with mesh.points.requires_grad_(True) and the same script
becomes an inverse problem.
See the full walkthrough in the Quickstart.
A small selection from the example gallery:

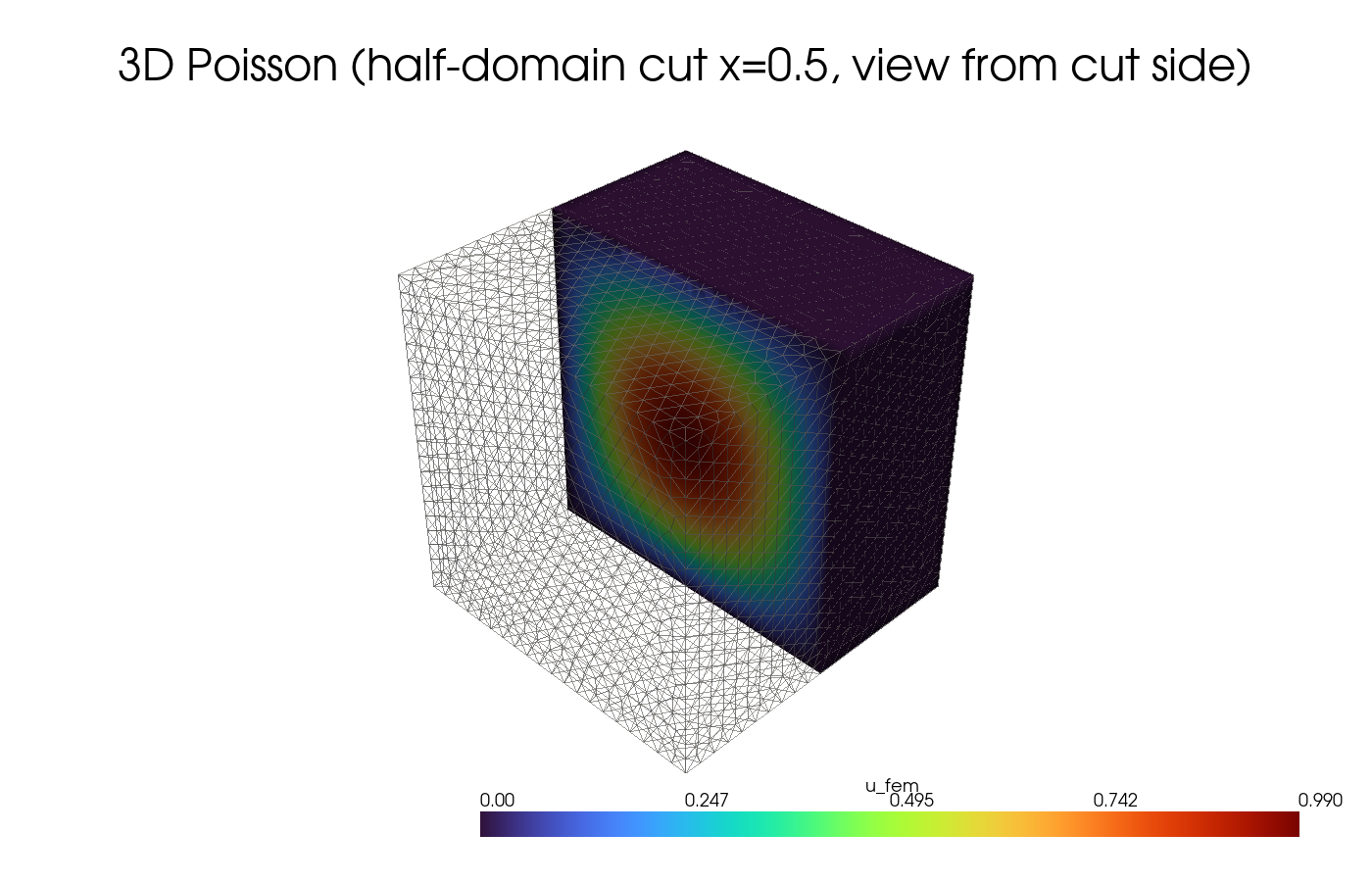

 3D Poisson — tetrahedral mesh, cut view of the scalar field. |

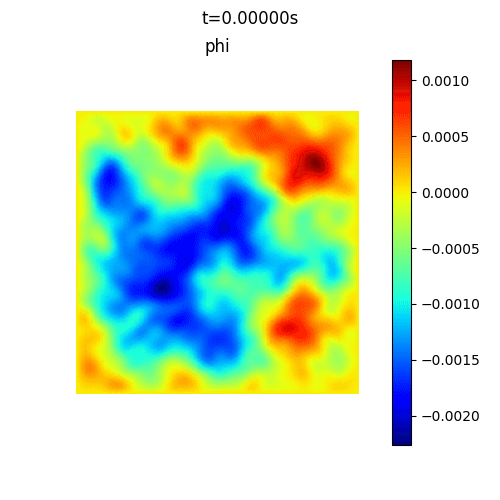

 Allen–Cahn phase field — nonlinear time evolution with Newton iteration per step. |

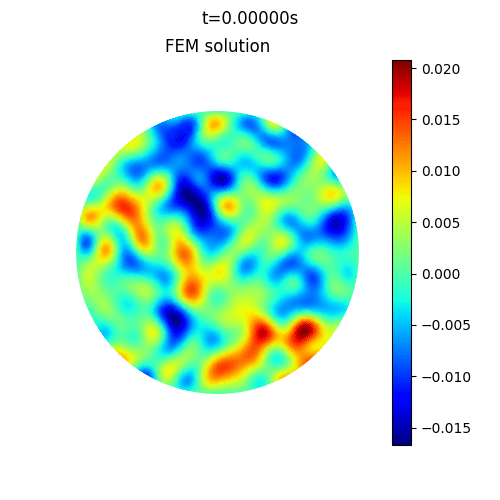

 Wave equation — explicit central-difference time integration. |

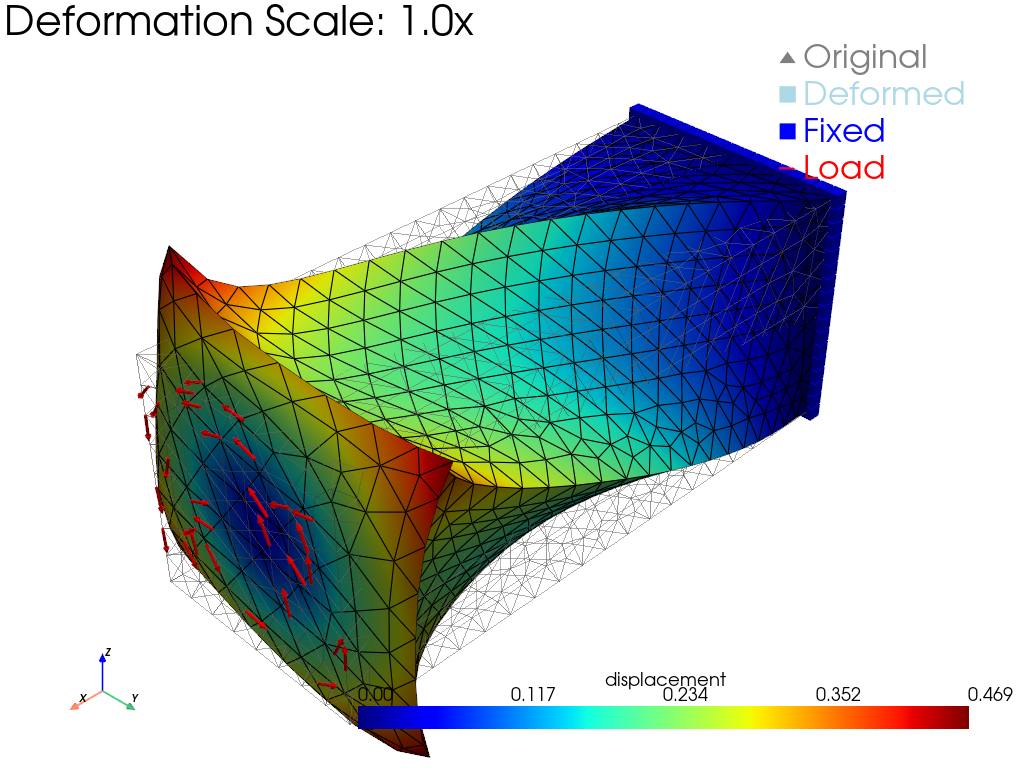

 Hyperelastic rubber — large-deformation solid mechanics with a Newton solver. |

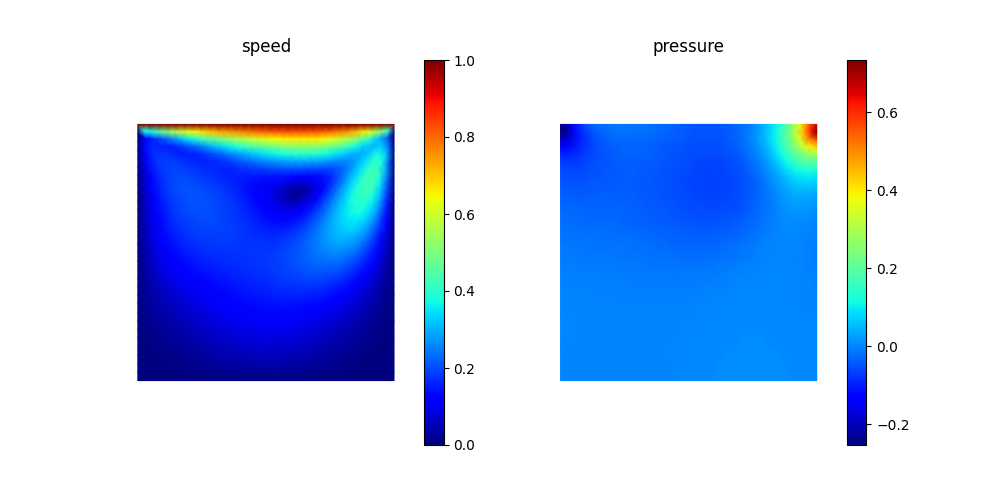

 Lid-driven cavity — incompressible Navier–Stokes; velocity field and streamlines. |

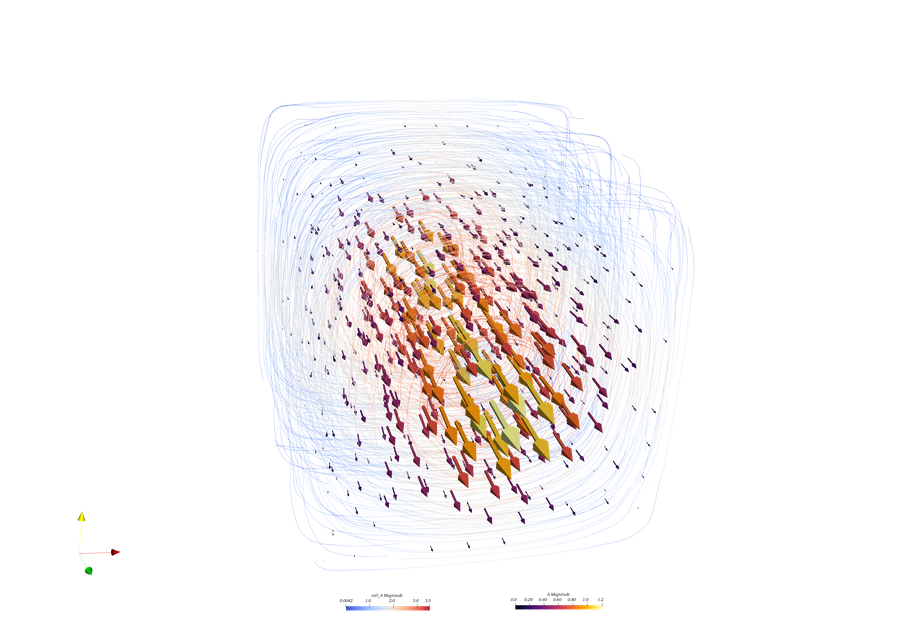

 Magnetostatics — 3D magnetic field around a current-carrying wire (stabilized nodal curl-curl). |

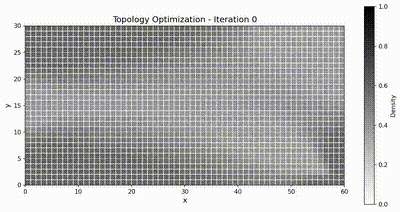

 Topology optimization — compliance minimization via the Optimality Criteria method. |

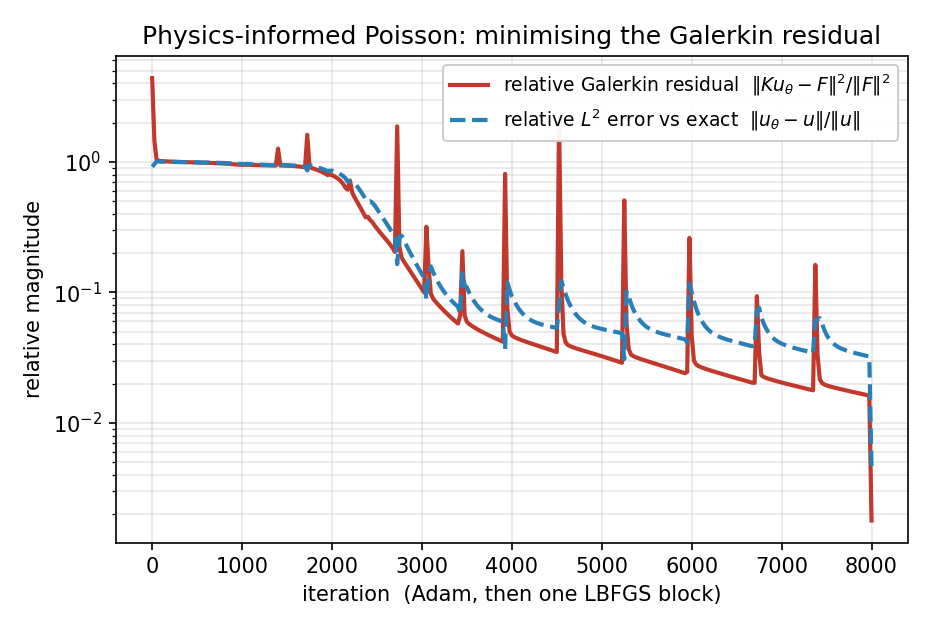

 Physics-informed learning — a network trained to minimize the assembled Galerkin residual. |
| Category | Path | Description |
|---|---|---|
| Basics | examples/basics/ |
Mesh visualization, basis functions, element gallery |
| Poisson | examples/poisson/ |
2D / 3D Poisson, batched RHS, h-adaptivity |
| Diffusion | examples/diffusion/ |
Heat equation, Allen-Cahn phase field |
| Wave | examples/wave/ |
Wave equation with central-difference scheme |
| Solid | examples/solid/ |
Cantilever beam, hyperelasticity, contact, plasticity |
| Fluid | examples/fluid/ |
Lid-driven cavity, cylinder flow, flow past obstacles, Rayleigh-Bénard, Taylor-Green |
| Magnetostatics | examples/maxwell/ |
3D Maxwell: magnetic field around a current-carrying wire via a stabilized nodal curl-curl formulation |
| Inverse design | examples/inverse_design/ |
Coefficient-field identification and density-based topology optimization, all via autograd |
| Physics-informed | examples/physics_informed/ |
Train a neural network to minimize the assembled Galerkin residual |
| Dataset | examples/dataset/ |
Batch dataset generation for ML (heat, wave, Poisson) |
| Distributed | examples/distributed/ |
Graph coloring, mesh partitioning, multi-GPU assembly |
| Feature | FEniCS | scikit-fem | JAX-FEM | torch-fem | TensorMesh |
|---|---|---|---|---|---|
| Custom weak forms (Pythonic) | ✅ | ❌ | ❌ | ✅ | |
| Easy install | ❌ | ✅ | ✅ | ✅ | |
| Easy debug | ❌ | ✅ | ❌ | ✅ | ✅ |
| Easy I/O | ❌ | ❌ | ❌ | ❌ | ✅ |
| Large meshes | ✅ | ✅ | ❌ | ❌ | ✅ |
| GPU support | ✅ | ❌ | ✅ | ✅ | ✅ |
| Efficiency | ✅ | ❌ | ✅ | ✅ | |
| End-to-end autograd | ❌ | ✅ | ✅ | ✅ | |
| Deep-learning integration | ❌ | ❌ | ✅ | ✅ | |
| Maturity | ✅ | ✅ |
Custom Weak Forms (Pythonic) — user-defined bilinear / linear forms directly in Python, without a separate DSL such as UFL. End-to-End Autograd — gradients flow natively through the entire pipeline; FEniCS supports this via the external
dolfin-adjointpackage. Maturity — reflects project age, ecosystem size, and production deployments.
The core workflow: Mesh → Assembler → SparseMatrix → Condenser → Solve.
| Module | Description |
|---|---|
tensormesh.mesh |
Mesh data structure; built-in generators (gen_rectangle, gen_circle, gen_cube, gen_L, …); Gmsh / VTK-HDF5 I/O |
tensormesh.element |
Shape functions, quadrature rules, element transformations (geometric order 1–4) |
tensormesh.assemble |
ElementAssembler, NodeAssembler, FacetAssembler for matrix and vector assembly |
tensormesh.sparse |
SparseMatrix (subclass of torch_sla.SparseTensor); linear & nonlinear sparse solves via torch-sla backends (SciPy / Eigen / native PyTorch / CuPy / cuDSS) |
tensormesh.operator |
Condenser for Dirichlet boundary conditions via static condensation |
tensormesh.ode |
Time integrators: explicit / implicit Euler, midpoint, Runge–Kutta |
tensormesh.dataset |
Parametric PDE dataset generation (Poisson, Heat, Wave, linear elasticity) |
tensormesh.visualization |
Matplotlib and PyVista plotting backends |
tensormesh.functional |
Tensor utilities for FEM (elasticity, Voigt notation, common ops) |
tensormesh.material |
Material property definitions for solid mechanics |
tensormesh.optimizer |
Optimization algorithms (e.g. OC for topology optimization) |
Full documentation, including a user guide, an example gallery, the API reference, and performance benchmarks, lives at docs.tensor-mesh.com.
Key entry points:
- Getting started — installation, quickstart, and an install smoke-test.
- User guide — meshes, weak forms, boundary conditions, linear solvers, time integration, differentiability.
- Example gallery — runnable examples from Poisson to Navier–Stokes and topology optimization.
- API reference — module-by-module signatures and docstrings.
- Performance — benchmarks against FEniCS / Firedrake / MFEM / scikit-fem / JAX-FEM / torch-fem.
- Discord — real-time chat, help channels, and showcase.
- GitHub Discussions — announcements, Q&A, ideas & RFCs.
- GitHub Issues — bug reports and feature requests.
- Email to Shizheng Wen at shizheng.wen@sam.math.ethz.ch — collaborations and partnerships.
Contributions are welcome — see CONTRIBUTING.md for the
development setup, test workflow, documentation build, and PR conventions.
