serverless-job-manager

Scheduled cronjob notifications backed by AWS Serverless technologies including Step Functions, Lambda, CloudWatch and more.

Note: AWS places a limit of 100 CloudWatch Event Rules per account per region. You may be able to request an increase to this number.

Overview

Manages the scheduling, notifications, alerting (WIP), and logging of cronjobs in a microservice platform. If a service can receive an HTTP webhook, it can offload these responsibilities to serverless-job-manager.

The service consists of several components:

• An HTTP API (backed by API Gateway)

  • Endpoints for creating/updating job configurations
  • Endpoints for listing/filtering jobs and past executions of those jobs
  • Endpoints for service callbacks following an execution webhook

• A NoSQL document data store (DynamoDB)

  • A table for Jobs - the configuration of scheduled recurring jobs
  • A table for Job Executions - the record of each "run" of a job and the result

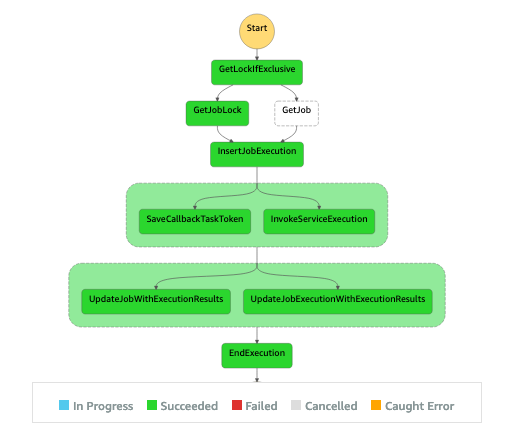

• State Machines (backed by AWS Step Functions)

• VPC Endpoint for limiting API access to clients within the VPC/VPN

  • (Manually configured in the AWS Console)

• Lambdas, etc

---

Usage

NOTE: For ALL endpoints, requests must come from within the VPC or, for local development/testing, from a machine connected to the appropriate VPN.

NOTE: Custom domain for this API is a WIP, for now use the API Gateway default as shown here for staging.

Authorizing API calls

The API provides HTTP endpoints for administration of cron jobs (creating/updating, searching, etc) as well as endpoints that platform services will interact with (currently only the callback endpoint). The adminsitration endpoints currently require IAM authentication while the service endpoints only require that requests come from within the VPC/VPN.

Making requests to the administration endpoints currently requires IAM authentication. You can use Postman to sign your requests using the AWS Signature authorization "type". This will allow you to specify your personal AWS IAM Access Key and Secret Key. Specify us-east-1 for the Region and execute-api as the Service Name. The callback endpoint can only be accessed from services within the configured VPC.

Create or Update a Job

Idempotent endpoint for creating a new job or updating an existing one.

Example request

Content-Type: application/json
Accept: application/json
Authorization: <SEE ABOVE>
PUT https://zn8wgm8ao6-vpce-04aeda13a498c4c26.execute-api.us-east-1.amazonaws.com/stage/services/<SERVICE_NAME>/jobs/<JOB_NAME>

{
  "async": true,
  "enabled": true,
  "exclusive": false,
  "invocation_target": <WEBHOOK_TARGET_URL>,
  "invocation_type": "http",
  "payload": "{\\"foo\\":\\"bar2\\"}",
  "schedule": "cron(*/5 * * * ? *)"
  "ttl_seconds": 119,
}

Parameters

In path:

• SERVICE_NAME: The name of the service that owns the job. Services can have many jobs.
• JOB_NAME: The name of the specific job. Must be unique to the service.

In body:

• async: Currently only asynchronous jobs are supported, so this must be true. For async jobs, an HTTP request ("webhook") is made to the URL defined in invocation_target. The service then has ttl_seconds to call the given callback_url before it is marked as a failed due to timeout.
• enabled: Executions will be paused when this is set to false. No new execution history will be saved while the job is disabled.
• exclusive: When this is set to true, an execution will immediately fail if the previous execution is still in progress, meaning no webhook is fired. When false, multiple executions for the same job can be in progress at once. Services should consider their concurrency and resource availability when choosing the rate/schedule expression for their jobs. Webhooks for exclusive jobs will contain the output from the last successful run. This is useful because the service doens't have to store the results or state from the last run.
• invocation_target: For http invocations (webhooks), this should be an absolute URL to the services HTTP(S) endpoint. The endpoint will receive webhooks via the POST method, with the Content-Type of application/json. The service should respond with an HTTP status in the 200 range for the execution to be considered successfully started.
• invocation_type: Currently only http is supported. In the future, we may add support for sqs, rabbitmq, etc.
• payload: A static payload that will be sent with every execution invocation webhook. Must be a string (i.e. a JSON encoded value).
• schedule: A valid CloudWatch Events Schedule Expression. Examples: rate(6 hours) and cron(*/5 * * * ? *). Executions can be scheduled to run at most once per minute. Precise invocation times are not supported. There will always be a short delay between the exact scheduled time and when the service receives the execution invocation webhook. If the use case does not demand a specific time of day, prefer using a rate over a cron expression. A rate expression should work for most cases. The main exception is when a service has many different jobs that need to be balanced to run at different times. Using common rate expressions (i.e. rate(5 minutes), rate(1 hour), rate(6 hours)) will allow the job manager to optimize scheduling for all jobs. Expressions use UTC time zone.
• ttl_seconds: The estimated duration, in seconds, that executions of this job are expected to take, at most.

Webhooks: Handling a job execution invocation

Services will receive job execution invocation webhoooks via an HTTP POST request to the URL specified in the job config's invocation_target property. The webhook will be received aproximately at the scheduled time, not precisely, perhaps within 30 seconds. Following receipt of the webhook, the service must make heartbeat calls at the rate specified in heartbeat_interval_seconds.

Example webhook request body (this is what the service receives)

{
  "callback_url": "https://zn8wgm8ao6-vpce-04aeda13a498c4c26.execute-api.us-east-1.amazonaws.com/stage/callback/MTsyMDE5MDkyNy5wMDt0aGUtc2Vydjpub25leGNsdXNpdmUtam9iLTg4OjE1Njk1OTE5MDAwMDA6NTUwMzI1MGUtNTNjYy0yN2Y0LWE2MzctY2RlZTFkMWIyMDQ4",
  "heartbeat_interval_seconds": 30,
  "invocation_latency_ms": 34310,
  "invocation_latency_pct": 28.8,
  "job_name": "my-job-1",
  "last_successful_execution": {
    "name": "a346244a-21db-bbad-7535-bc37f9b9c837_0807ea34-e1e0-41d3-b570-1c889a90aff1",
    "scheduled_time_ms": 1569604200000,
    "scheduled_time": "2019-10-03T18:12:00Z",
    "service_invoked_at_ms": 1569604200000,
    "state": "{\"duration\":2392}",
    "status": "success",
    "summary": "Success summary text"
  },
  "payload": "This is my payload, could have been JSON",
  "schedule": "rate(5 minutes)",
  "scheduled_time_ms": 1569604200000,
  "scheduled_time": "2019-09-27T17:10:00Z"
}

Callbacks: Reporting job execution progress or results

Callback: Job execution in progress (heartbeat)

During the execution, the service must perform heartbeat callbacks at the rate specified in the heartbeat_interval_seconds property of the webhook. Failing to perform these heartbeat calls will result in the execution being marked as a failure. Optionally provide a progress indicator (integer, 0-100).

An execution with the heartbeat_interval_seconds value of 30 should be making this call every 30 seconds starting from the time the execution webhook is received.

Note: The URL is the value of callback_url from the job execution invocation webhook payload. The callback endpoint can only be accessed from services within the configured VPC.

Content-Type: application/json
POST https://zn8wgm8ao6-vpce-04aeda13a498c4c26.execute-api.us-east-1.amazonaws.com/stage/callback/<CALLBACK_TOKEN>

{
  "status": "processing",
  "progress": 73
}

Callback: Job execution has completed (success)

Note: The URL is the value of callback_url from the job execution invocation webhook payload. The callback endpoint can only be accessed from services within the configured VPC.

Content-Type: application/json
POST https://zn8wgm8ao6-vpce-04aeda13a498c4c26.execute-api.us-east-1.amazonaws.com/stage/callback/<CALLBACK_TOKEN>

{
  "correlation_id": "foobar",
  "state": "{\"duration\":1234, \"processed\":666}",
  "status": "success",
  "summary": "Processed 666 rows"
}

Callback: Job execution has completed (fail)

Note: The URL is the value of callback_url from the job execution invocation webhook payload. The callback endpoint can only be accessed from services within the configured VPC.

Content-Type: application/json
POST https://zn8wgm8ao6-vpce-04aeda13a498c4c26.execute-api.us-east-1.amazonaws.com/stage/callback/<CALLBACK_TOKEN>

{
  "correlation_id": "foobar",
  "error": "My error and maybe a stack trace, could be JSON encoded object or whatever",
  "status": "fail",
  "summary": "A summary of the error"
}

Viewing jobs and execution history

There are HTTP endpoints for retreiving job configurations and their execution history. You can also view executions and their output in the AWS Console on the Step Functions service page. The UI is very handy for viewing the flow of events in the course of a job execution, for both historical and in progress executions.

Get jobs

Note: Supports GET or POST, with params in query string or in a JSON body. It is possible to make multiple searches in a single request by passing arrays for these values (see second example).

Possible combinations of parameters:

• no params: get all jobs
• service_name (single string): get all jobs for this service
• service_name + job_name (single string for each or congruent arrays of strings)
• job_guid (single string or array of strings)

Accept: application/json
Content-Type: application/json
POST https://zn8wgm8ao6-vpce-04aeda13a498c4c26.execute-api.us-east-1.amazonaws.com/stage/jobs

{
  "job_name": "my-job-42",
  "service_name": "my-serv",
  "job_guid": "a732c557-f64e-5b40-8b3d-d6cd609ee8cf"
}

Get job executions

Note: Supports GET or POST, with params in query string or in a JSON body. When there are more results than the response provides, a token is returned (paging.more) which can be used in the next request in order to get the next page of results. Be aware that the number of results on each page can be anywhere from 0 to 100, but if a more token is present, it means there are more results in the result set.

Accept: application/json
Content-Type: application/json
POST https://zn8wgm8ao6-vpce-04aeda13a498c4c26.execute-api.us-east-1.amazonaws.com/stage/executions

{
  "job_name": "my-job-42",
  "more": "<value of paging.more from previous search response>",
  "service_name": "my-serv",
  "since": 1568688960000
}

---

Deployment

Take care to use the correct AWS Credential "profile". By default, this service assumes you have the credentials set in ~/.aws/credentials with the profile name equal to that environment's AWS Account Name (staging). If your profiles are named differently, be sure to use the --profile argument.

Note: Run these commands in the serverless directory

serverless deploy --stage [stage|prod]

Specify profile override

serverless deploy --stage stage --profile staging

Logs

Logs are located in CloudWatch Logs, but are also forwarded to ELK/Kibana. They can be viewed from your browser via the AWS Console:

• prefix=/aws/lambda/serverless-job-manager-*

You can interactively tail the logs for a given Lambda function by using the Serverless command line tools like so:

serverless logs -f <function_name> -t

i.e.

serverless logs -f fetch_recalls -t

Development

Note: Run these commands in the root directory where serverless.yml is located.

Lambdas can be invoked locally as long as your local environment has AWS credentials with the required IAM roles and permissions. Invoke locally and optionally specify event data like so:

serverless invoke local -f getJob -d '{"jobStatic":{"guid":"foobar","key": {...}}}'

For more advanced options when invoking locally, see the Serverless Doc: Invoke Local

Troubleshooting

• The API Gateway API relies on a VPC Endpoint which has an access Policy that can be managed in the VPC page of the AWS Console.
• The API Gateway API has a Resource Policy that is defined in the serverless.yml but might require manual updates in the AWS Console on the API Gateway page.
• Security groups are key for the flow of requests to this "private" API Gateway API. There are security group settings on the VPC Endpoint as well as the VPC and Lambdas.

---

---

---

TODO

• Test suite
• Retry/On-demand/Ad-hoc job run endpoint
  • API endpoint for running an execution now
  • optionally take a failed execution as input, links the two executions for displaying that relationship in UI
• Slack app for job failure notifications and job management
• improve search endpoint results
  • determine useful fields, don't leak dynamodb sort key etc (not useful to client)
• Per-function IAM roles
  • seems to conflict with step functions plugin
• stage-specific statemachine names
• encrypted/signed callback tokens for validating those API calls
• add jsonschema errors to APIG response when using request validation
  • possible w/ cloudformation but not clear if there is Serverless Framework support
• updateJobSchedule as a step function!
• mock delayed callback as a step function
  • should flex the heartbeat feature
• Workarounds for CloudWatch Event Rule limit (100)
  • Never duplicate a schedule expression (so the limit is instead 100 unique schedule expressions)
    • Would require a layer of abstraction between event rules and their jobs
    • Would have to proxy the trigger event to SF/SNS/DynamoDB? Will add to job latency, need service to guarantee fast delivery (not sure about DynamoDB in this case)
    • UI would allow user to pick from a list of already defined schedules so as not to "consume" a rule (scheduling many jobs at the same time in the platform could be troublesome)
    • Step function receives trigger event and queries/scans dynamodb for all jobs matching the trigger's schedule expression, then use SF iterator to start executions for each job
      • Example of step function iterator
      • Ideally start executions in parallel
• Callback test event
  • when a service configures a job with an HTTP invocation target, make a test request to validate it can be accessed.
• Add support for a queued workflow where a service gets an iterator token to retreive jobs at its own pace, while keeping queued jobs "alive" automatically (where they would normally need a heartbeat request). Idea would be to allow for easier concurrency control, remove the need for servs to manage complex queues and heartbeats.
  • Example flow: job manager sends webhook to service that there is work in the queue. Service does a callback request, indicating the level of concurrency available (n), gets n jobs in the response or as individual async webhooks (each job specifies a worker/thread ID for the service to route the work by). Each webhook indicates if there is remaining work in the queue and a callback url+token for retreiving the next job for that worker/thread.
• Add support for overlapping jobs
  • don't lock on the job
• Log job execution metrics as CloudWatch metrics
  • execution latency (time elapsed from scheduled event time to service invocation)
  • enable/implement tracing for all function states, help inform future optimizations
    • include lambda stats (memory, etc) in metrics, so we can observe the effect on latency
• Callback heartbeat/keep-alive endpoint to extend the execution's lock_expires_at
  • extend the execution's timeout by a duration less than or equal to the job's configured ttl_seconds
  • wait step on the execution needs to retry if the value has been extended
  • Step Functions doesn't yet support dynamic TimeoutSeconds or HeartbeatSeconds
• Internal job to stop pending state machine executions if ttl expired (cleanup job)
• Abstract into discrete AWS Event Fork Pipelines components
• Update to node10
• (better/fix) Structured logging with log4js
• Use Awilix for IoC/Dependency Injection
  • Deliveries per service (APIG vs Step Functions)
• Use TypeScript... maybe
• Utilities for cleaning up execution history, logs, dynamodb, etc
