Frontend

Introduction

This is the front end repository for the rewritten project Connectd. Connectd is a personal CRM (customer relationship manager) web application, created with React, Express framework, and MongoDB. The original project is documented at: Confluence - Connectd CRM

• Frontend repository is located at: Frontend Repository

• Backend repository is located at: Backend Repository

• Frontend URL: Heroku - connectd-front

• Backend URL: Heroku - connectdcrm

About the Front-end App

The front-end application is a single page web application written by ReactJS & material UI framework. It aims to help the user manage their connections & tasks.

Table of contents

• Local Configuration
• Deploy to Cloud
• Tool Stack
• Useful Links

Local Configuration:

Pre-requirement:

1. Node version of at least 10.
2. A package manager, npm or yarn.
3. A code editor (optional).
4. Modern browser.

Steps:

1. Pull the backend repository from GitHub
   • You may use command git clone <repo> if you haven’t cloned the repository before
   • Or simply run git pull to fetch the latest commit
2. Make sure you’ve already installed yarn
3. Open a terminal window at the folder root directory
   • Check current path using pwd command
   • You should see a directory path like .../COMP30022-Frontend
4. Run command yarn to install all dependencies required for frontend
5. Run command yarn start to run yarn frontend server,
   • By default, server will run on port 3000
6. The application will start running, and a web page will be shown in your default browser.
7. Open the project in code editor, make any changes you want. (Optional)

Tech Info

React

react is a both declarative & component-based library.

• Declarative: Design simple views for each state in your application, and React will efficiently update and render just the right components when your data changes
• component-based: Build encapsulated components that manage their own state, then compose them to make complex UIs

MaterialUI

MaterialUI provides a robust, customizable, and accessible library of foundational and advanced components, enabling you to build your own design system and develop React applications faster

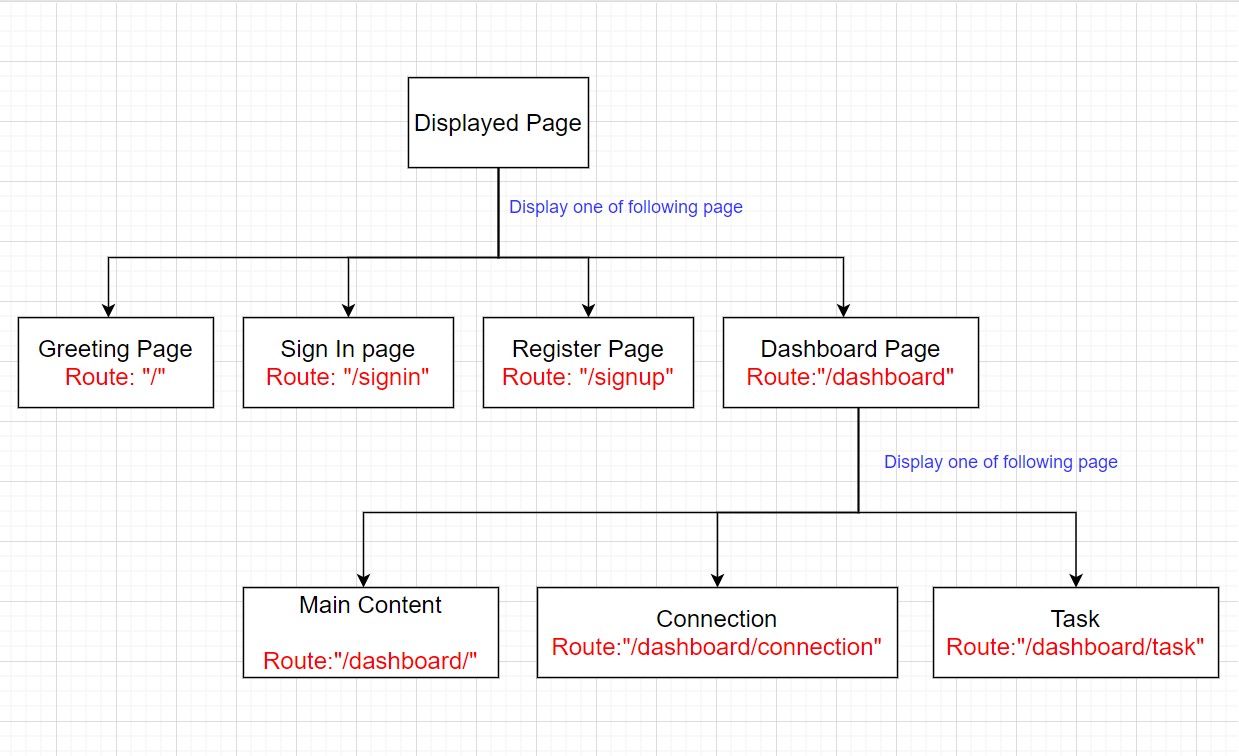

App Structure

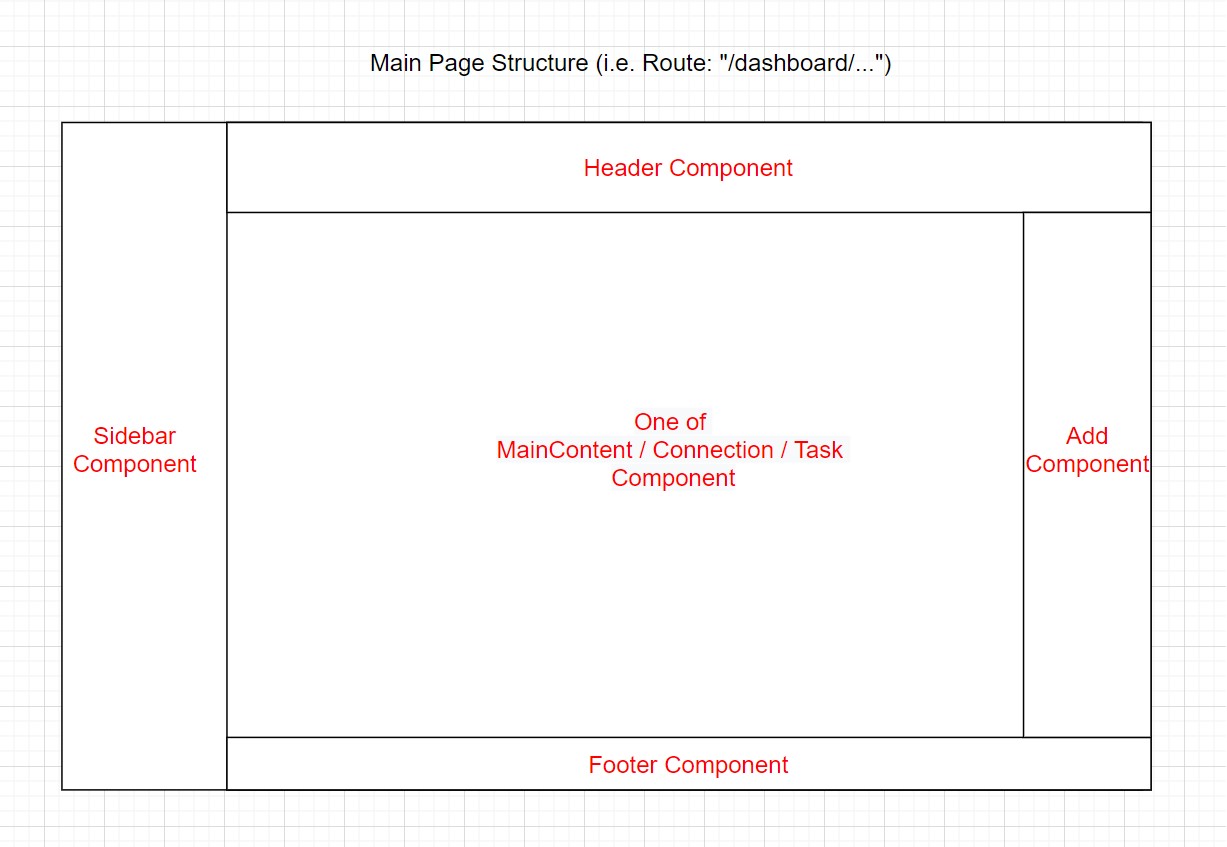

Main Page Structure

Tool Stack

Package	Version	Notes
yarn	1.22.17	Package manager
react	17.0.2	Web framework for frontend
react-dom	17.0.2	Serve as the entry point to the DOM and server renderers for React
react-window	1.8.6	Render part of a large data set, improve performance
react-scripts	4.0.3	Include scripts and configuration used by Create React App
react-router-dom	5.3.0	DOM bindings for React Router
material-ui	4.12.3	Enable material UI
axios	0.22.0	Fetch data from backend APP using AJAX
kendo-react-scheduler	4.9.0	Calendar library

---

Useful Links

Node official website: https://nodejs.org/en/

VSCode official website: https://code.visualstudio.com/

Heroku official website: https://www.heroku.com/

Git official website: https://git-scm.com/

materialUI official website(V4): https://v4.mui.com/getting-started/usage/
