GSplat Master's Project

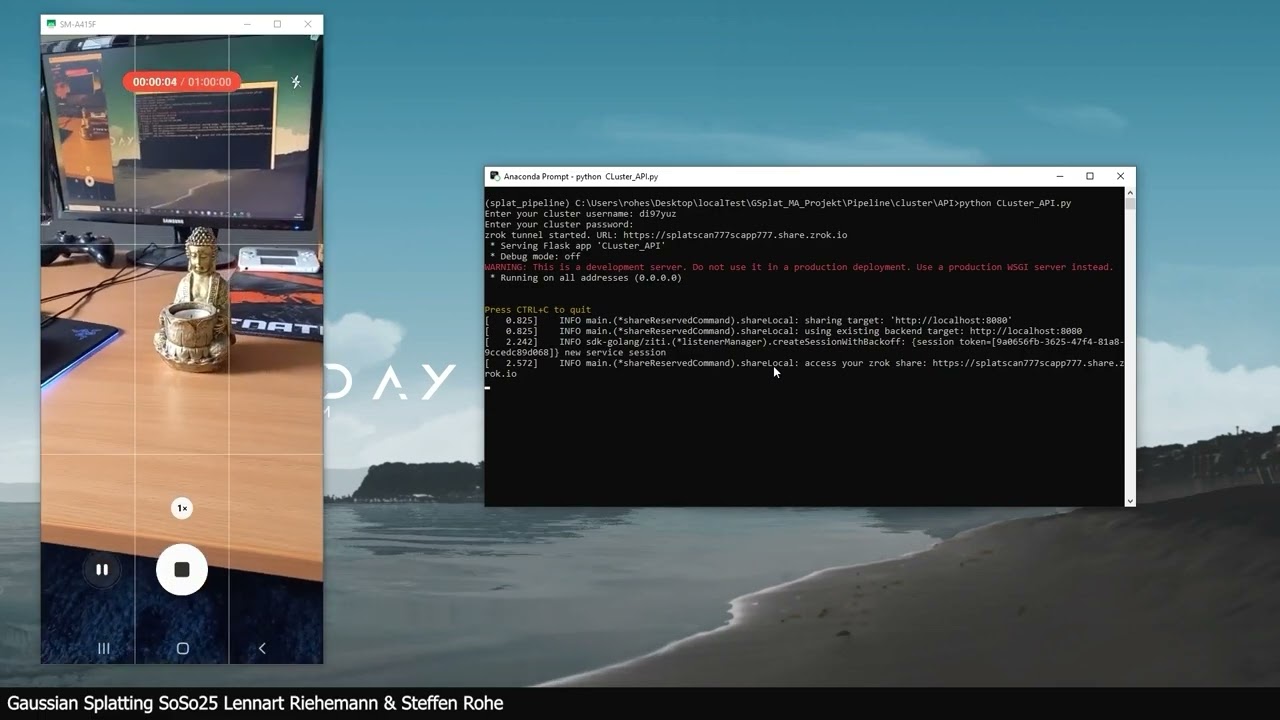

(Click to watch)

Setup Guide

🎨💥 Description

This Repository contains a Colmap and Nerfstudio based Gaussian Splatting 3D reconstruction pipeline designed for efficient and high-quality 3D scene modeling from video or images. The project includes a complete processing pipeline that runs on the LRZ AI cluster or locally with NVIDIA GPUs, and features an Android app (SplatScan) to capture videos, set parameters, and upload data seamlessly for 3D reconstruction.

The pipeline supports multiple input types (video, images, COLMAP data) and outputs high-fidelity 3D models (.ply files) using a modular, configurable workflow optimized for GPU acceleration.

---

📦 Project Setup Instructions

To Work with LRZ AI Sytems you need to have cluster access. https://doku.lrz.de/3-access-and-getting-started-10746642.html
You also need eduVPN and a connection with "Münchner Wissenschaftsnetz LRZ-VPN".

📁 Clone Repository

git clone https://github.com/Kiwil23/GSplat_MA_Projekt.git
cd GSplat_MA_Projekt

---

🐍 Conda Environment

Create and activate the environment:

conda env create -f environment.yml
conda activate splat_pipeline

---

🌐 Zrok Setup

1. Install zrok
2. Create an account:

zrok invite

3. Enable your account:

zrok enable <your_token>

4. Reserve a subdomain:

zrok reserve public localhost:8080 --unique-name <"your_subdomain_name">

5. You can release a reservation with:

zrok release <your_subdomain_name>

---

🖥️ LRZ AI Cluster Setup

1. Edit the file: Pipeline/cluster/splat_workspace/gpu_job.sbatch

USER_PATH  → your cluster home directory

2. Copy Pipeline/cluster/splat_workspace to your cluster home directory. You may need to run sed -i 's/\r$//' gpu_job.sbatch first
3. Remove .gitkeep files from:

input_data/
result_data/

4. Connect and create enroot container:

ssh login.ai.lrz.de -l your_username
cd splat_workspace
salloc -p lrz-hgx-h100-94x4 --gres=gpu:1
srun enroot import docker://kiwil23/splat_tools_slim
exit

5. Rename the image:

mv kiwil23+splat_tools_slim.sqsh kiwil23_splat_tools_slim.sqsh

---

📱 Android App Setup

1. Enable USB Debugging on your device.
2. Install Android Studio and open:

SplatScan/

3. Run the app on your device.

---

🖥️ Local Docker Setup (NVIDIA GPU only)

1. Install Docker and NVIDIA Container Toolkit
2. Pull the Docker image:

docker pull kiwil23/splat_tools_slim:latest

Or build from source:

GSplat_MA_Projekt/Docker_Splat_Tools

3. Edit: Pipeline/local/splat_workspace/local_job.sh

USER_PATH  → your project save path

You may need to change line endings from CRLF to LF

4. Remove .gitkeep files from:

input_data/
result_data/

---

🖼️ Viewer Setup

Ensure you have Node.js 18 or later installed and follow these steps:

1. cd GSplat_MA_Projekt
2. git clone https://github.com/Deldood/superSplatViewer.git
3. cd superSplatViewer
4. git submodule update --init
5. npm install

---

📱 App Usage

1. In your Conda Env Start the API

   • For cluster use:

     cd Pipeline/cluster/API
     python Cluster_API.py --url-name <Your_Zrok_Subdomain_Name> --cluster-path <Cluster_Home_Path>

   • For local use:

     cd Pipeline/local/API
     python Local_API.py --url-name <Your_Zrok_Subdomain_Name>

2. Launch the SplatScan App

   • Tap SET URL and enter your zrok subdomain name.

3. Capture Video

   • Tap START SCANNING to record your object.
   • Try to capture as many angles as possible and ensure good lighting and focus.

4. Set Training Parameters
   Tap SET PARAMETERS to define training options (default: 100,100,100,10000):

   Option	Description
   --pre_filter_img="30"	Keep top 30% sharpest images (plus 5% extra automatic filtering)
   --post_filter_img="60"	Keep top 60% after RAFT filtering
   --train_img_percentage="90"	Use 90% of the remaining images for training
   --train_iters=XXXX	Number of training iterations

5. Upload and Wait

   • Tap GENERATE SPLAT and wait for training to finish.
   • The result .ply file will be available in:

     /splat_workspace/result_data


▶️ Manual Pipeline Usage

In gpu_job.sbatch or ,local_job.sh set the desired --pipeline_type and settings:

🎥 For MP4 videos in /input_data:

Argument	Result
--pipeline_type="mp4_to_images"	Extracted frames
--pipeline_type="mp4_to_colmap"	COLMAP data
--pipeline_type="mp4_to_transforms"	Prepared train data for Splatfacto
--pipeline_type="mp4_to_splat"	(Default) Full pipeline with .ply output

🖼️ For individual Images in /input_data:

Argument	Result
--pipeline_type="images_to_colmap"	COLMAP data
--pipeline_type="images_to_transforms"	Prepared train data for Splatfacto
--pipeline_type="images_to_splat"	Full pipeline with .ply output

🗃️ From COLMAP Data in /input_data:

Required Structure:

input_data/
├── images/
├── sparse/
|   └── 0,1,2...
└── database.db

Argument	Description
--pipeline_type="colmap_to_transforms"	Prepared train data for Splatfacto
--pipeline_type="colmap_to_splat"	Full pipeline with .ply output

🗂️ From Preprocessed COLMAP Data:

Required Structure:

input_data/
├── colmap/
│   ├── sparse/
│   └── database.db
├── images/
├── images_2/
├── images_4/
├── images_8/
├── sparse_pc/
└── transforms.json

Argument	Result
--pipeline_type="transforms_to_splat"	Full pipeline with .ply output

🧹 Optional Image Filtering:

Option	Description
--pre_filter_img="30"	e.g. Keep top 30% sharpest images (plus 5% extra filtering)
--post_filter_img="60"	e.g. Keep top 60% after RAFT filtering
--train_img_percentage="90"	e.g. Use 90% of remaining images for training
--train_iters=XXXX	e.g. Number of training iterations

🔁 Start Pipeline:

sbatch gpu_job.sbatch or ./local_job.sh

---

⚠️ Troubleshooting

Issue:

sbatch: error: Batch script contains DOS line breaks (\r\n)
sbatch: error: instead of expected UNIX line breaks (\n).

Fix:

sed -i 's/\r$//' gpu_job.sbatch
sbatch gpu_job.sbatch

Access the LRZ Cluster Dashboard: 👉 https://ood-1.ai.lrz.de/pun/sys/dashboard
