ADD: week 16 blog by AdityaKrSingh26 (#401)

Signed-off-by: Aditya <[email protected]>

Author: AdityaKrSingh26

src/constants/MarkdownFiles/posts/2025-08-30-gsoc-25-AdityaKrSingh26-week16.md

@@ -0,0 +1,129 @@
+---
+title: "GSoC '25 Week 16 Update by Aditya Kumar Singh"
+excerpt: "Advanced shared mode with global vs local moves, extended PoseNet-based video import with MobileNet/ResNet, template palette with event-driven design, and multiple UX refinements."
+category: "DEVELOPER NEWS"
+date: "2025-08-30"
+slug: "2025-08-30-gsoc-25-AdityaKrSingh26-week16"
+author: "@/constants/MarkdownFiles/authors/aditya-singh.md"
+tags: "gsoc25,sugarlabs,week16,AdityaKrSingh26"
+image: "assets/Images/GSOC.webp"
+---
+
+<!-- markdownlint-disable -->
+
+# Week 16 Progress Report by Aditya Kumar Singh
+
+**Project:** [Sugarizer](https://github.com/llaske/sugarizer)
+**Mentors:** [Lionel Laské](https://github.com/llaske)
+**Assisting Mentors:** [Samarth Bagga](https://github.com/SamarthBagga)
+**Reporting Period:** 2025-08-25 - 2025-09-01
+
+---
+
+## Goals for This Week
+
+- **Goal 1:** Improve shared mode implementation with fine-grained move handling.
+- **Goal 2:** Extend AI-based video import feature with multiple PoseNet backbones and UX polish.
+- **Goal 3:** Build a reusable template palette for stickman animations.
+- **Goal 4:** Address UI inconsistencies and quality-of-life fixes.
+
+---
+
+
+## This Week’s Achievements
+
+1. **Shared Mode Enhancements**
+    - In earlier weeks, shared mode already supported ownership markers and drag/drop of remote stickmen. This week’s focus was on movement semantics and ensuring consistency across animations:
+    - **Relative Position Preservation During Animation**
+        - Each stickman maintains both its original joints (from remote updates) and a local offset (applied when dragged). During animations, incoming updates refresh the joints but do not overwrite local offsets, so remote stickmen appear stable in the scene.
+        ```js
+        function applyOffset(stickman, frame) {
+            const base = stickman.originalFrames[frame];
+            const offset = stickman.localOffsets[frame] || { x: 0, y: 0 };
+            return base.map(joint => ({
+                x: joint.x + offset.x,
+                y: joint.y + offset.y
+            }));
+        }
+        ```
+    - **Global vs Local Moves**
+        - Moves performed on frame 0 (the initial frame) are tagged as global and applied across all frames.
+        - Moves on later frames are local and affect only that frame’s playback.
+        - This required maintaining a globalOffset in the stickman object and a localOffsets dictionary keyed by frame index.
+
+    - **Tutorial Updates**: The help/tutorial system was updated to explain new behavior and color-coding:
+        - Black Head → local stickman.
+        - Red dots → active/selected stickman.
+        - Yellow dot at waist → For dragging stickman across screen.
+        - Colored Head → remote stickman (color corresponds to the user).
+
+2. **Video Import Improvements (PoseNet → Stickman)**
+    - This task built on last week’s AI integration, moving from a working prototype into a more robust import pipeline:
+    - **Debugging with Hardcoded PoseNet Samples**: Extracted sample keypoints directly from PoseNet output to manually verify joint mappings. This surfaced alignment issues between PoseNet’s 17-keypoint skeleton and Stickman’s simpler joint hierarchy.
+    - **Support for Multiple Backbones**: Added flexibility to run PoseNet with two different architectures:
+        - MobileNetV1 (~4.2M params) → optimized for performance on low-power devices.
+        - ResNet50 (~25M params) → slower but higher accuracy, especially useful for complex movements.
+    - **Joint Distance Enforcement**: A recurring issue was unnatural limb proportions when mapping PoseNet joints. To solve this, I used the `enforceJointDistances()` method from `activity.js`:
+        ```js
+        jointConnections.forEach(([a, b, expectedDist]) => {
+            const actual = distance(joints[a], joints[b]);
+            if (Math.abs(actual - expectedDist) > tolerance) {
+                adjustJoint(joints, a, b, expectedDist);
+            }
+        });
+        ```
+    - This keeps the stickman body consistent regardless of PoseNet noise.
+    - **Frame Deduplication**: Implemented logic to skip saving consecutive identical frames, which reduced output clutter and produced smoother animations.
+    - **UI/UX Enhancements in Import Dialog**:
+        - Loading spinner during TensorFlow.js model initialization.
+        - Autoplay of input video with a green pose overlay (restored for clarity).
+        - Simplified controls (only Cancel + Insert).
+        - Neat display of current frame index.
+    - Fixed delete-frame bug → selection now stays on previous frame, not reset to first.
+    - Randomized imported stickman positions to avoid overlap when multiple stickmen are added.
+
+
+3. **Template Palette Feature**
+    - I introduced a Template Palette, enabling quick insertion of prebuilt animations into the workspace.
+    - **Implementation (templatepalette.js)**: Using Sugar’s palette system, I created a palette with buttons (run, boxing, dance1, dance2). Each button dispatches a template-selected event:
+        ```js
+        runButton.addEventListener("click", () => {
+            document.dispatchEvent(new CustomEvent('template-selected', {
+                detail: { template: 'run' }
+            }));
+            setActiveButton(runButton);
+            self.popDown();
+        });
+        ```
+    - **Preloaded Templates**: Templates were generated from exported animations and stored as JSON. These JSONs are loaded at startup, making templates instantly available.
+    - **UI Design**: Each template button shows a name and animated preview, helping users recognize the animation before inserting it. This also makes the feature accessible for younger students with limited reading skills.

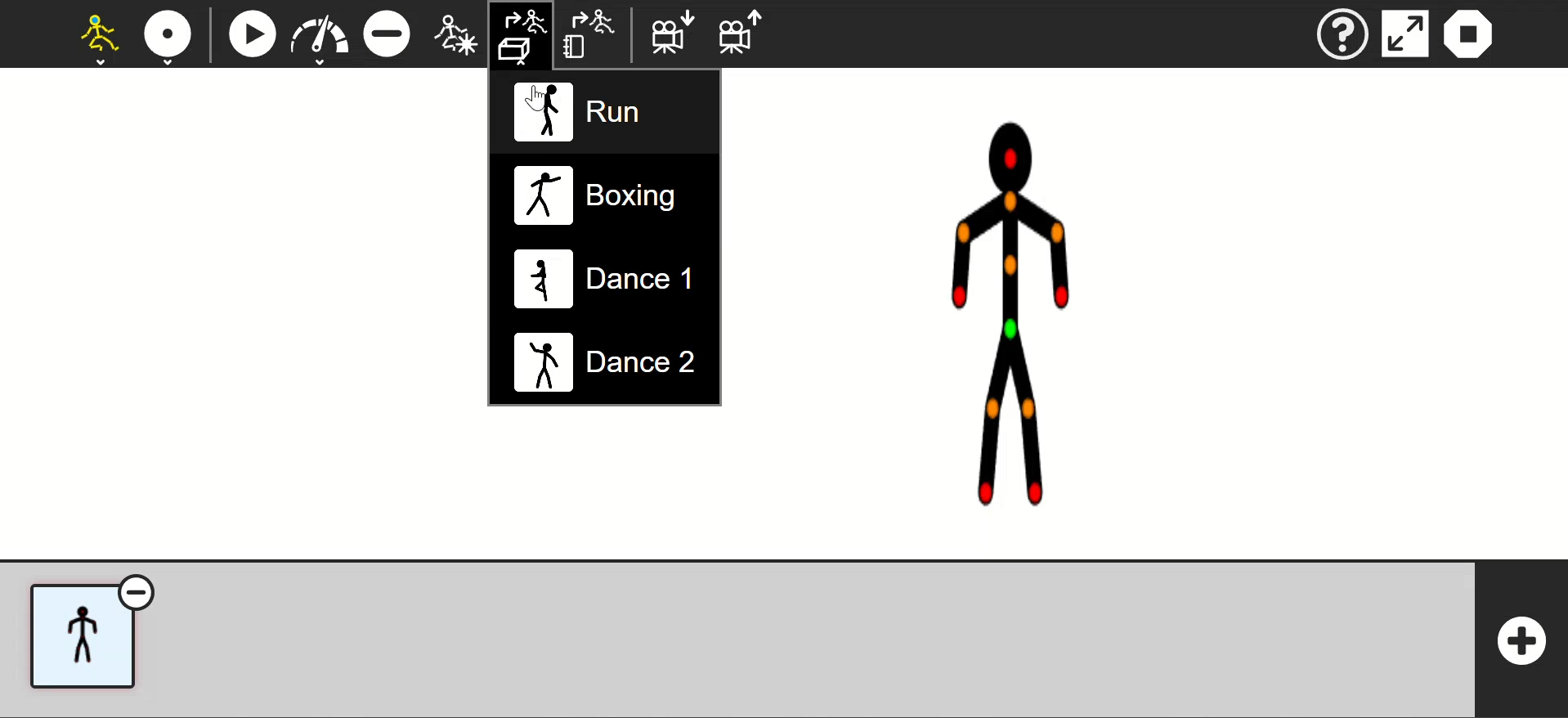

+    > Template Preview
+    ![](https://res.cloudinary.com/djhshvtwo/image/upload/v1756666561/GSoC%2725%20Blog%20Images/2802bab9-7001-4fc1-beab-4c156d5b3ff1.png)
+
+
+4. **Minor Improvements & Bug Fixes**
+    - Fixed palette color persistence and closing behavior.
+    - Ensured imported palette stickmen are also shared in collaborative mode.
+    - Applied Sugar UI look-and-feel to buttons (rounded corners, consistent style).
+    - Restored the green pose overlay in PoseNet video preview.
+    - Added spinner + disabled UI during first TensorFlow.js library load.
+    - Multiple incremental bug fixes merged into PR, improving stability for both single-user and shared sessions.

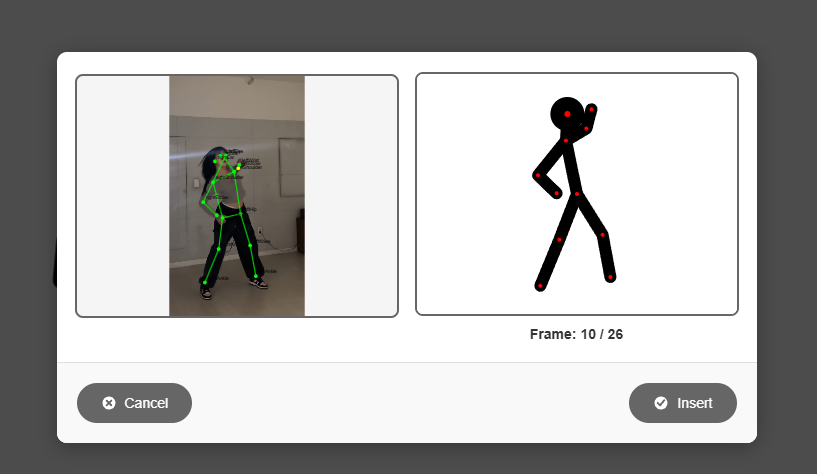

+    > UI Changes
+    ![Green pose overlay](https://res.cloudinary.com/djhshvtwo/image/upload/v1756666689/GSoC%2725%20Blog%20Images/a3235b2f-47a8-4cbb-a2ee-0fa224d80c4a.png)
+
+## Challenges & Solutions
+
+- **Challenge:** Explaining and implementing global vs local moves.
+  **Solution:** Designed clear frame-based rules (frame 0 = global, others = local) and updated tutorials with color-coded indicators.
+
+- **Challenge:** Building an extensible template system.
+  **Solution:** Used CustomEvent('template-selected') so templates are decoupled from activity logic. This makes it easy to add more templates later without touching core code.
+
+
+---
+
+## Acknowledgments
+
+Thank you to my mentors, the Sugar Labs community, and fellow GSoC contributors for ongoing support.
+
+---
